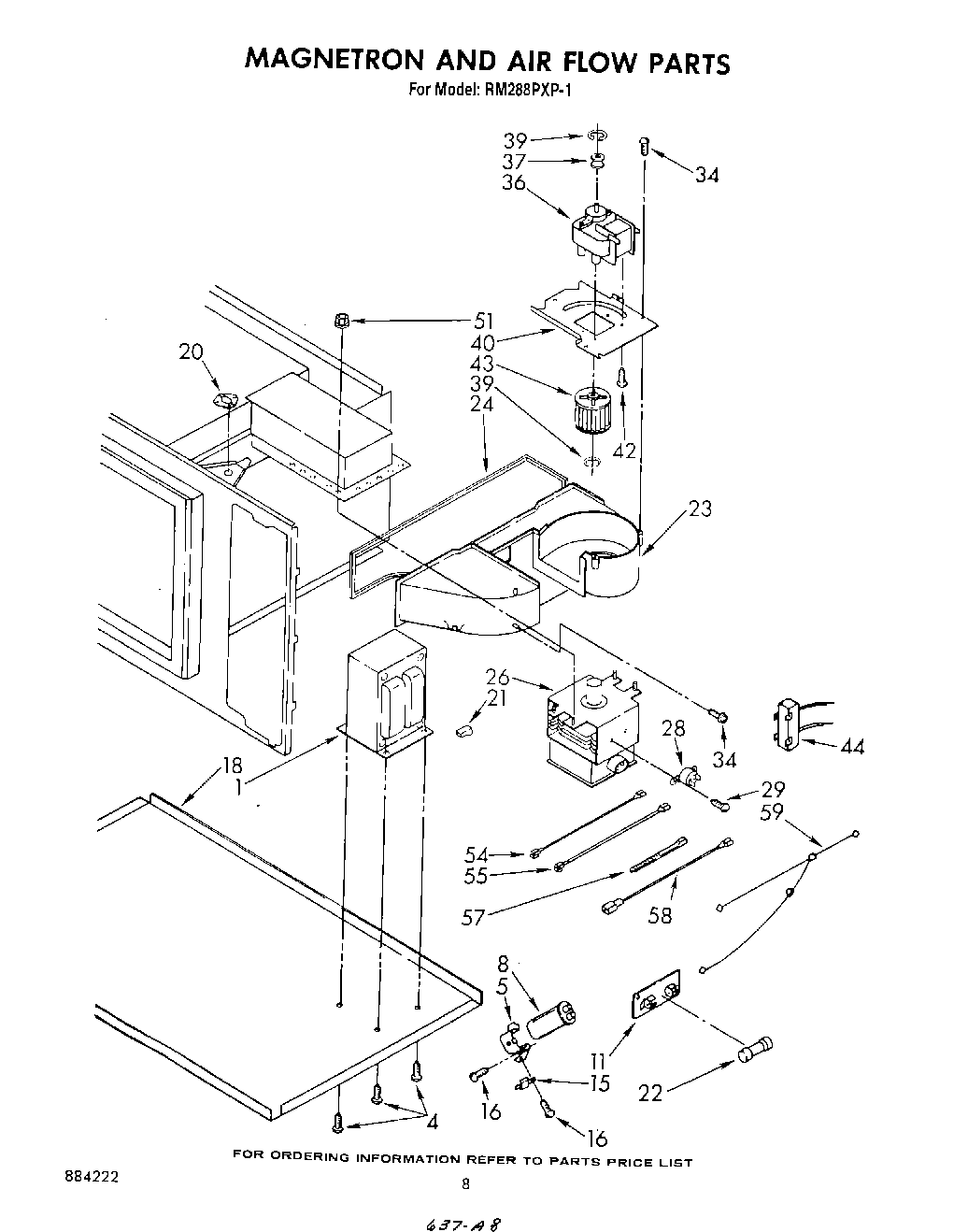

RM288PXP1 05 – MAGNETRON AND AIR FLOW

RM288PXP1 05 – MAGNETRON AND AIR FLOW

Written by

in

RM288PXP1 05 – MAGNETRON AND AIR FLOW

Products

PositionProduct
1Transformer (Alt.)
1Transformer (Alt.)
1Transformer
4Screw, 10-32 x 1/2 Hex Washer W/Ground Ring (10)
5Bracket, Capacitor
8capacitor (alt.)
8Capacitor (Alt.)
8Capacitor
11Block, Fuse
15rectifier, high voltage (alt.)
15rectifier, high voltage
18Base, Chassis (Not Serviceable)
20Thermostat
20screw
21Housing Receptacle
22WPW10017410 Whirlpool Fuse
23Air Duct (Horizontal)
24SEAL
26Magnetron
26Magnetron (Alt.)
26Magnetron (Alt.)
26Magnetron (Alt.)
26Magnetron (Alt.)
26Magnetron (Alt.)
28Thermal Protector
28Thermal Protector (Alt.)
28Thermal Protector (Alt.)
29Screw, 6A x 3/8 (2)
36Motor
36Motor (Alt.)
36Motor (Alt.)
37Pulley, Motor
39“E“ Ring
40Bracket, Motor
42WP486579 Whirlpool Air Conditioner Screw
43Wheel, Blower
44Reed Relay
44Reed Relay (Alt.)
44Reed Relay (Alt.)
51Flange Nut (4)
54Jumper, High Voltage (Black 6-5/16“)
55Jumper, High Voltage Red (6-5/16“)
57WPW10339879 Whirlpool Wire Tie
58High Voltage Lead, Gray 6-3/4“ (2)
59Clip, Harness
59Cable, Support
59Screw
59SCREW
59Screw, 11-16 x 1/2 Double Load Space Thread (5)
