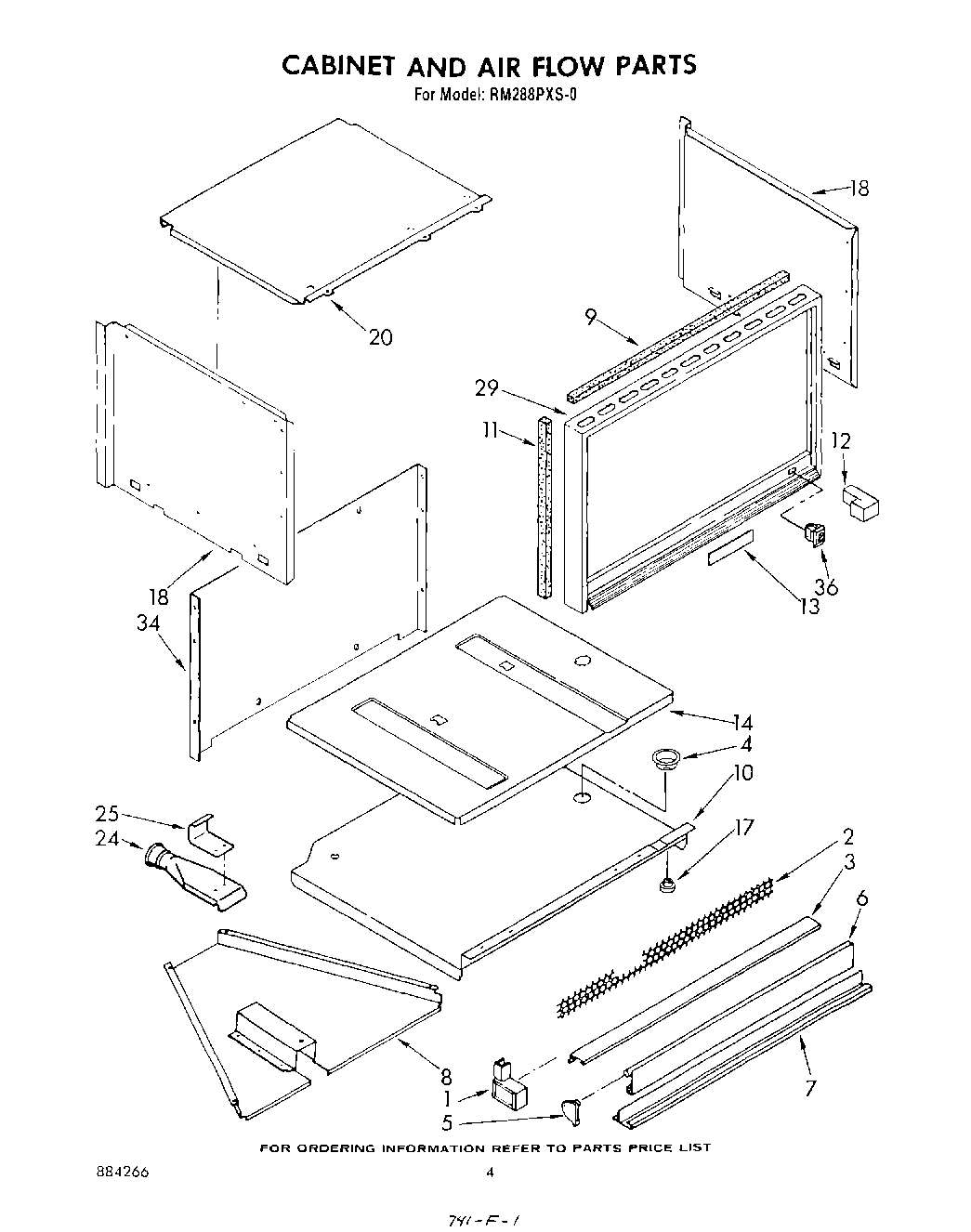

RM288PXS0 03 – CABINET AND AIRFLOW

Products

Position	Product
1	End Cap, L.H.
1	End Cap, R.H.
2	Trim, Oven Vent
3	Trim, Top
3	Screw
4	Bushing, Snap
5	End Trim, Vent (Left Side)
5	End Trim, Vent (Right Side)
6	Door, Vent
7	Panel, Side L.H. (Screw, 10A x 1/2 (2))
7	Trim, Bottom
7	Screw, 10-32 x 1/2
8	Box Air
9	WPL 3147596
10	Support Plate
11	WPL 3147595
12	Seal, Foam (2)
13	Adhesive
14	Panel, Support
17	Snap Bushing
18	Side Panel, L.H.
18	Side Panel, R.H.
20	Panel, Top
24	Vent Tube
25	Support, Vent Tube
25	Screw,
29	Frame
34	Cover, Rear
34	WP488729 Whirlpool Refrigerator Door Screw
36	WP4314961 Whirlpool Lite Switch
