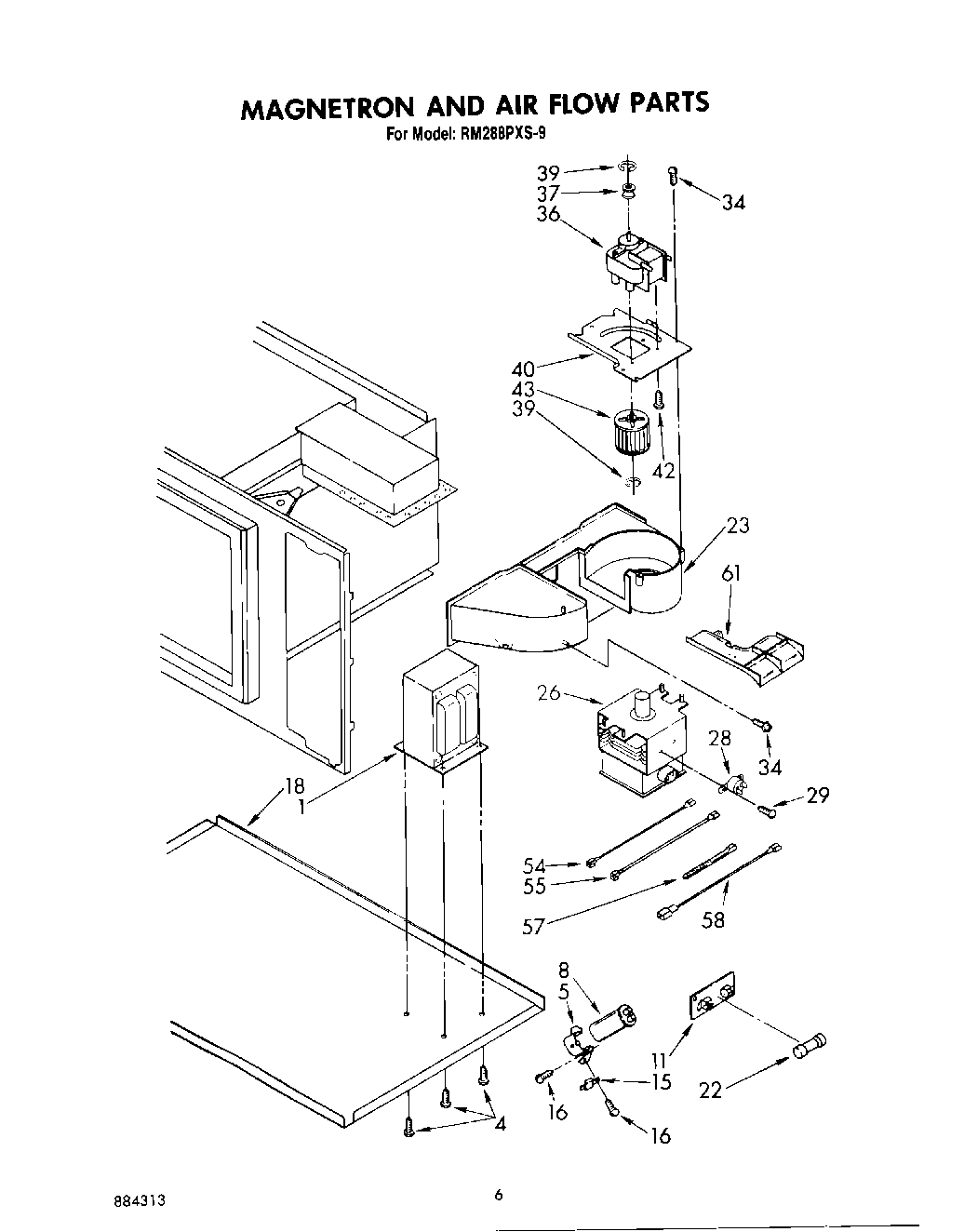

RM288PXS9 04 – MAGNETRON AND AIRFLOW

Products

PositionProduct
1Transformer
4Screw, 10-32 x 1/2 Hex Washer W/Ground Ring (10)
5Bracket, Capacitor
8capacitor (alt.)
8Capacitor (Alt.)
8Capacitor
114454949 Whirlpool Oven Fuse Block
15Rectifier, High Voltage
16screw
18Base, Chassis (Not Serviceable)
22WPW10017410 Whirlpool Fuse
23Air Duct (Horizontal)
26Magnetron
26Magnetron (Alt.)
26Magnetron (Alt.)
26Magnetron (Alt.)
26Magnetron (Alt.)
26Magnetron (Alt.)
28Thermal Protector
28Thermal Protector (Alt.)
28Thermal Protector (Alt.)
29Screw, 6A x 3/8 (2)
34Screw, 11-16 x 1/2 Double Load Space Thread (5)
36Motor (Alt.)
36Motor (Alt.)
36Transmotor
37Pulley, Motor
39“E“ Ring
40Bracket, Motor
42WP486579 Whirlpool Air Conditioner Screw
43Wheel, Blower
54Jumper, High Voltage Black 6-5/16“
55Jumper, High Voltage Red (6-5/16“)
57WPW10339879 Whirlpool Wire Tie
58High Voltage Lead, Gray 6-3/4“ (2)
61Extension, Air Duct
