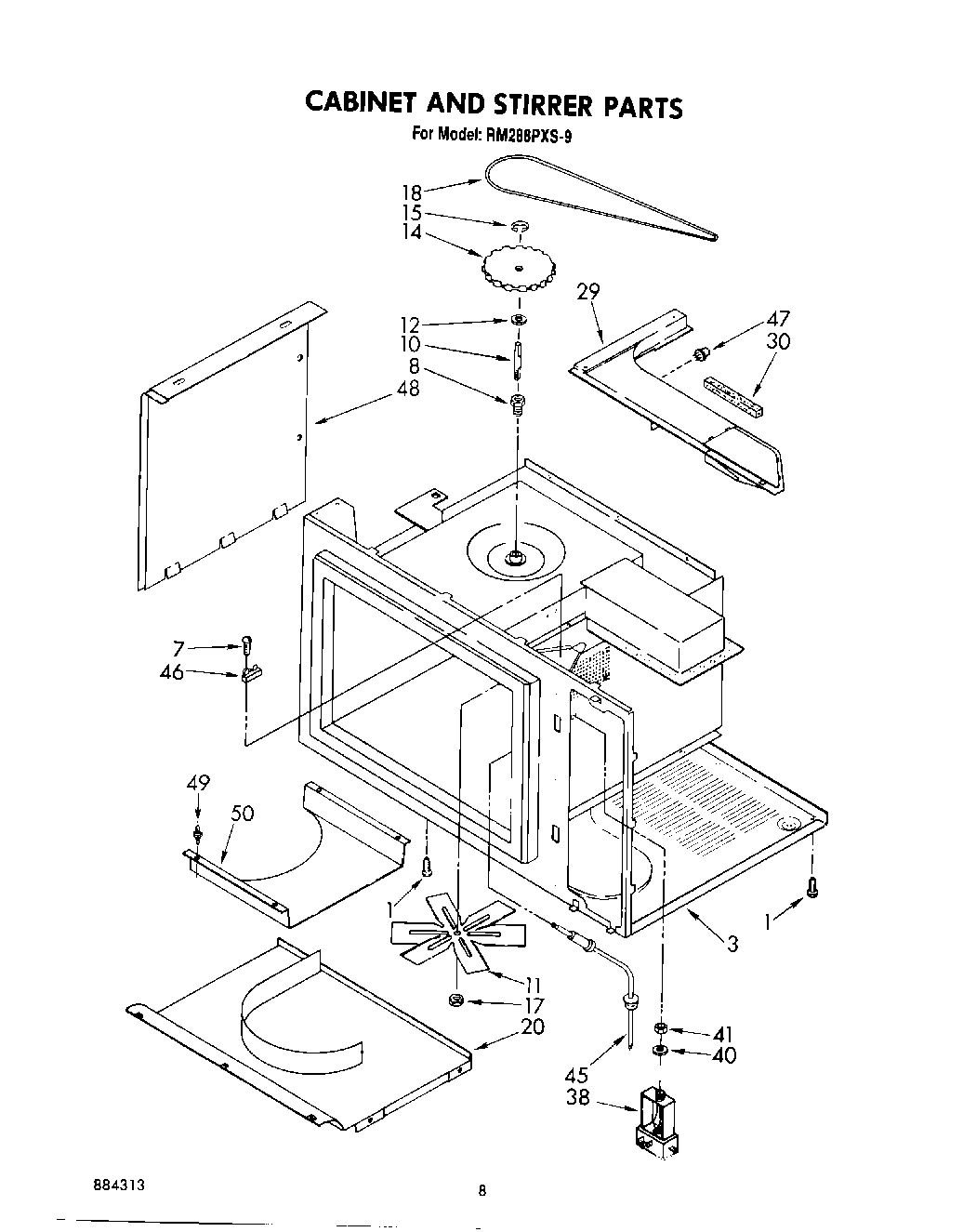

RM288PXS9 05 – CABINET AND STIRRER

RM288PXS9 05 – CABINET AND STIRRER

Written by

in

RM288PXS9 05 – CABINET AND STIRRER

Products

PositionProduct
1WP488729 Whirlpool Refrigerator Door Screw
3Base, Cabinet (Not Serviceable)
8Bushing, Stirrer
10Shaft, Stirrer
11Stirrer Blade
12Washer, Nylon
14Pulley, Stirrer Blade
15“E“ Ring
17WP487939 Whirlpool Refrigerator Nut
18WP313646 Whirlpool Microwave Drive Belt
20Fastener (4)
20Silicone Rubber Gasket
29Baffle, Air Exhaust
30Seal, Foam
38Jack, Probe
40Washer, Internal Lock
41Nut
45(Alt.)
45(Alt.)
45Probe, Temperature
46screw
46Fuse, Thermal
47Sensor, Gas
47Screw
48Cover, Side
48screw, 8-32 x 1/2 (3)
49Support (4)
50Plate, Tuning
