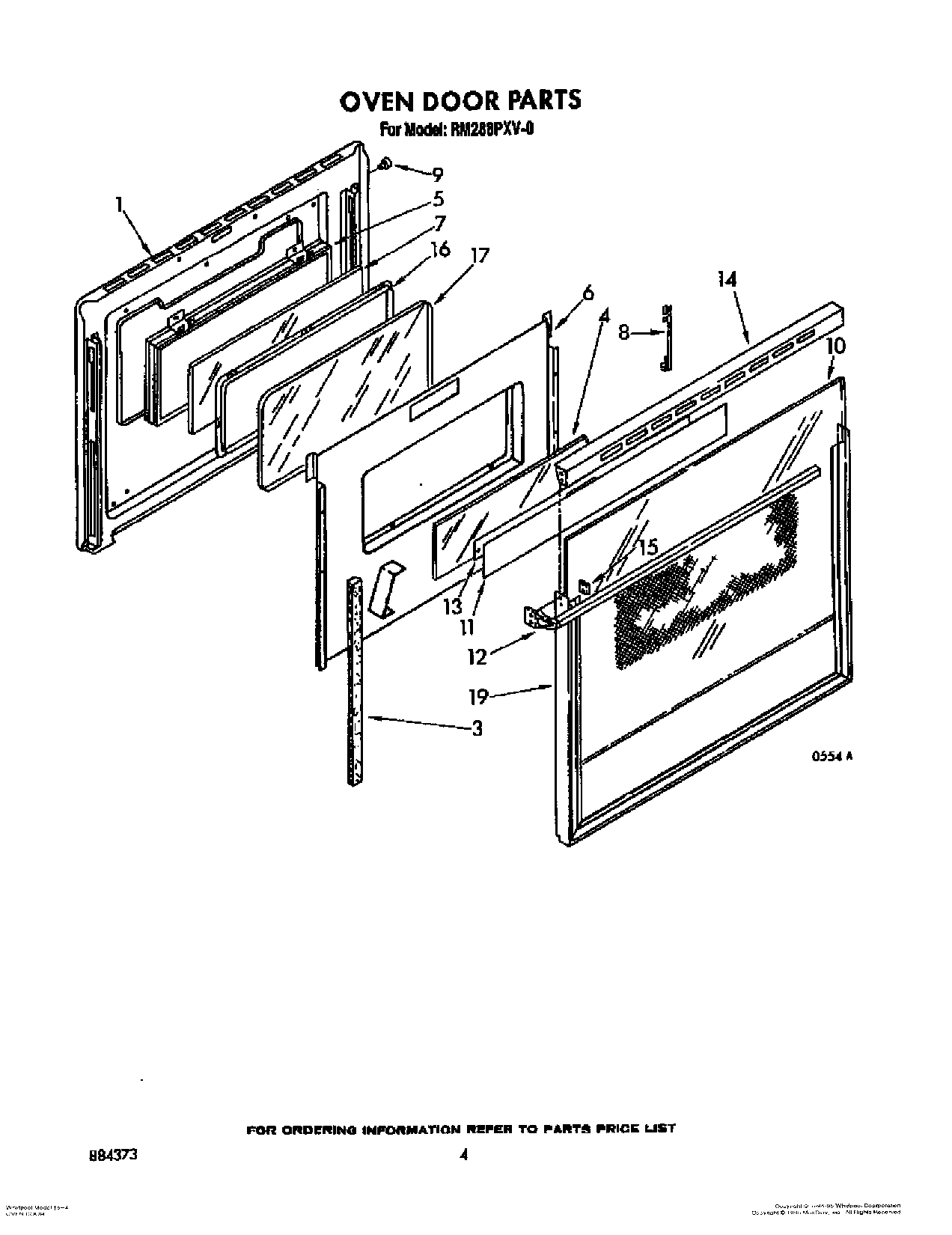

RM288PXV0 03 – OVEN DOOR

Products

Position	Product
	NOTE: The screws and nuts required to attach a part are listed immediately following that part.
1	Liner, Door
3	Seal, Flange (2)
4	Glass, Reflective
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
9	Bumper (4)
10	Glass, Panel (Black Model)
11	Foil, Door
12	Handle, Oven Door
12	WP355515 Whirlpool Screw
13	Harness, (Supply)
13	Screw,
14	Screw, 10A x 1/2 (2) (Black)
14	Top, Door (Black Model)
15	Clip, Mtg (2)
16	Frame, Inner
16	Screw
19	Frame, Door
