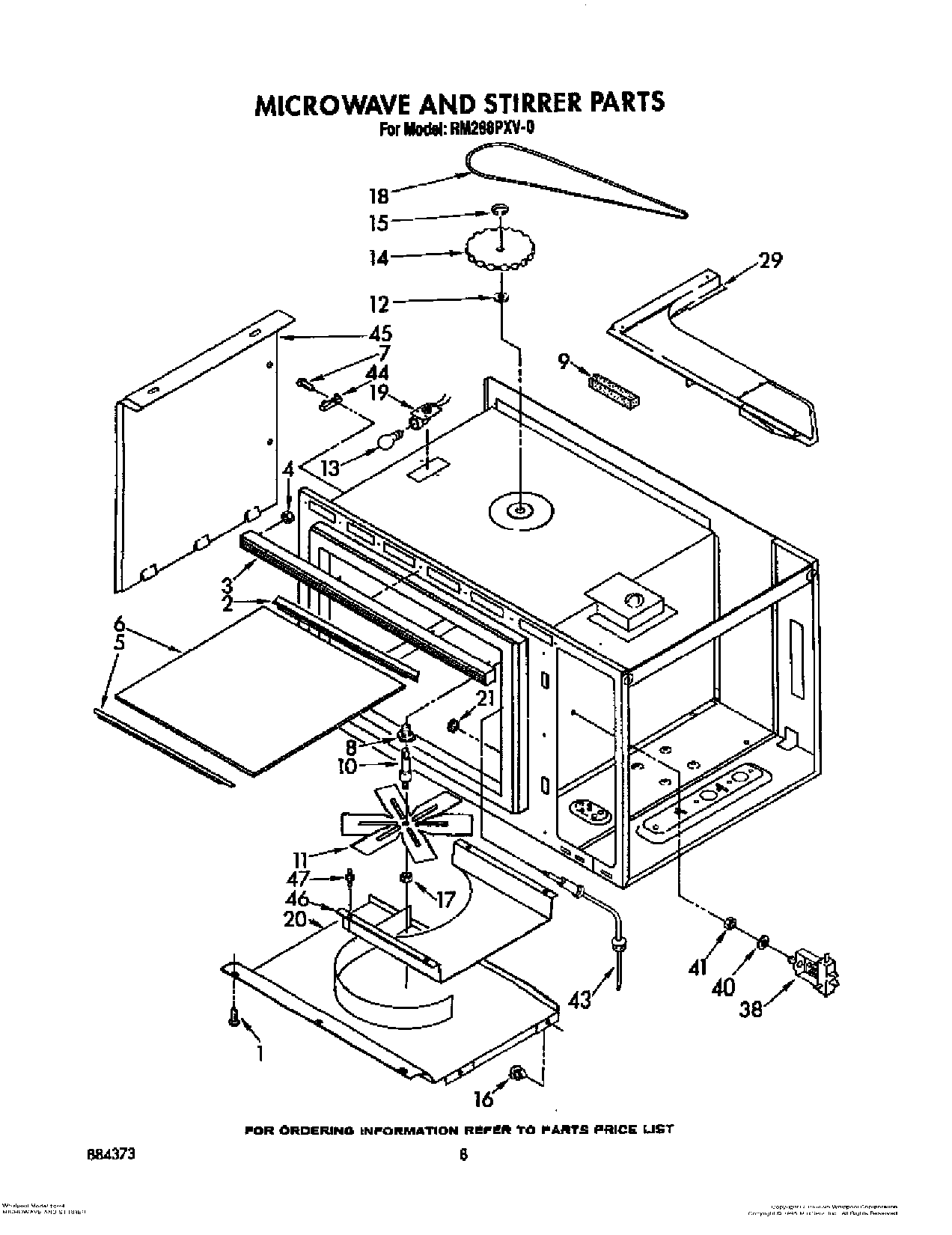

RM288PXV0 06 – MICROWAVE AND STIRRER

Products

Position	Product
1	WP488729 Whirlpool Refrigerator Door Screw
2	Trim, Shelf (Rear)
3	Deflector, Air
4	Nut (3)
5	Trim, Shelf (Front)
6	Shelf, Microwave (Install with Silastic 482338)
7	screw
8	Bushing, Stirrer
9	Seal, Foam
10	Shaft, Stirrer
11	Stirrer Blade
12	Washer, Nylon
13	WP3395618 Whirlpool Light Bulb
14	Pulley, Stirrer Blade
15	“E“ Ring
16	Fastener (4)
17	WP487939 Whirlpool Refrigerator Nut
18	WP313646 Whirlpool Microwave Drive Belt
19	Snap-In Socket
20	Silicone Rubber Gasket
21	Plug, Hole (4)
29	Baffle, Air Exhaust
38	Jack, Probe
40	Washer, Internal Lock
41	Nut
43	(Alt.)
44	Fuse, Thermal
45	Cover, Side
45	screw, 8-32 x 1/2 (3)
46	Plate, Tuning
47	Support (4)
