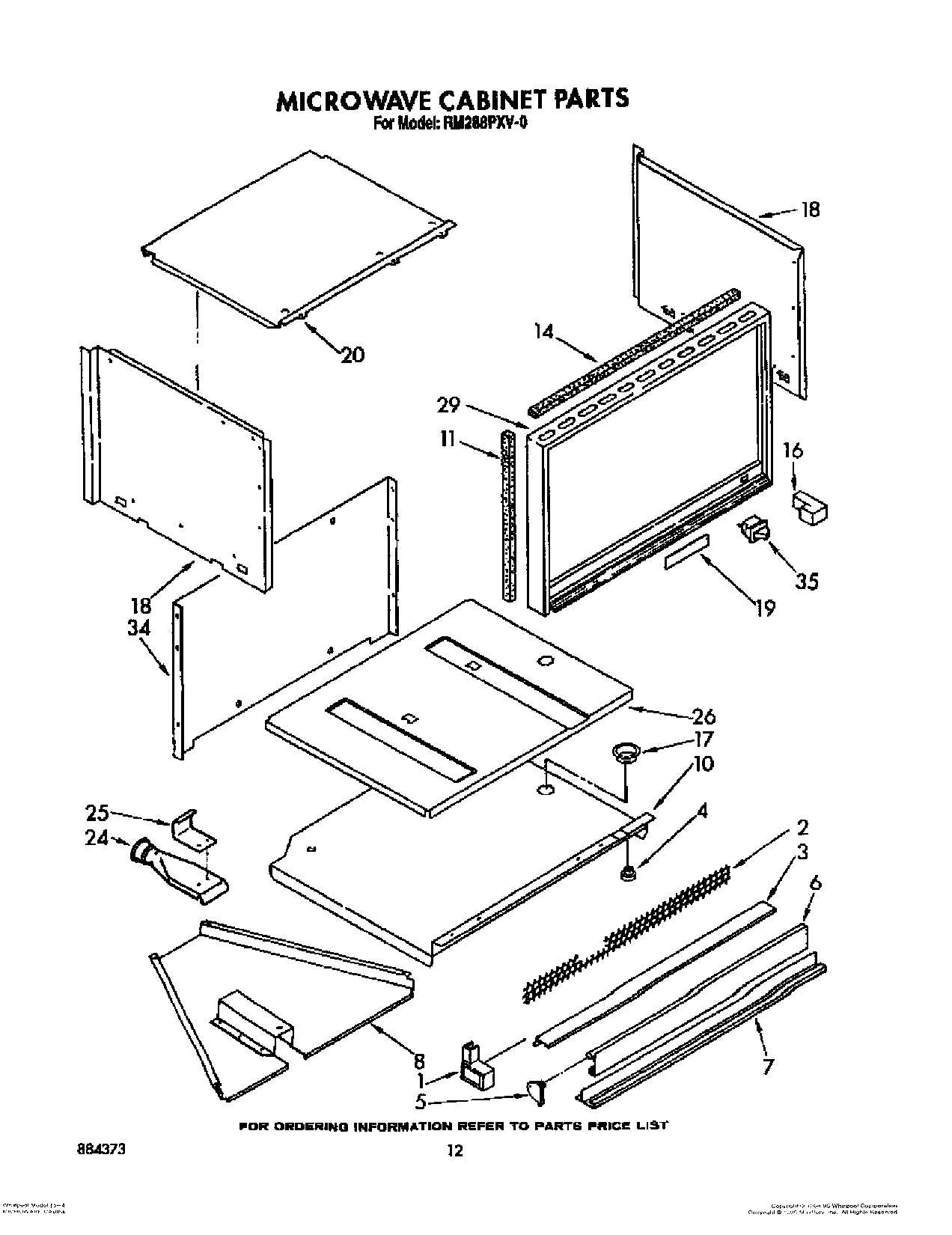

RM288PXV0 08 – MICROWAVE CABINET
Written by
in
RM288PXV0 08 – MICROWAVE CABINET
Products
Position
Product
1
End Cap, L.H.
1
End Cap, R.H.
2
Trim, Oven Vent
3
Screw, 10-32 x 1/2
3
Trim, Top
4
Snap Bushing
5
End Trim, Vent (Left Side)
5
End Trim, Vent (Right Side)
6
Door, Vent
7
Panel, Side L.H. (Screw, 10A x 1/2 (2))
7
Trim, Bottom
7
Screw
8
Box Air
10
Support Plate
11
WPL 3147595
14
WPL 3147596
16
Seal, Foam (2)
17
Bushing, Snap
18
Side Panel, R.H.
18
Side Panel, L.H.
19
Adhesive
20
Panel, Top
24
Vent Tube
25
Support, Vent Tube
25
WP488729 Whirlpool Refrigerator Door Screw
25
Screw,
26
Panel, Support
29
Frame, Outer
34
Cover, Rear
35
WP4314961 Whirlpool Lite Switch
←
