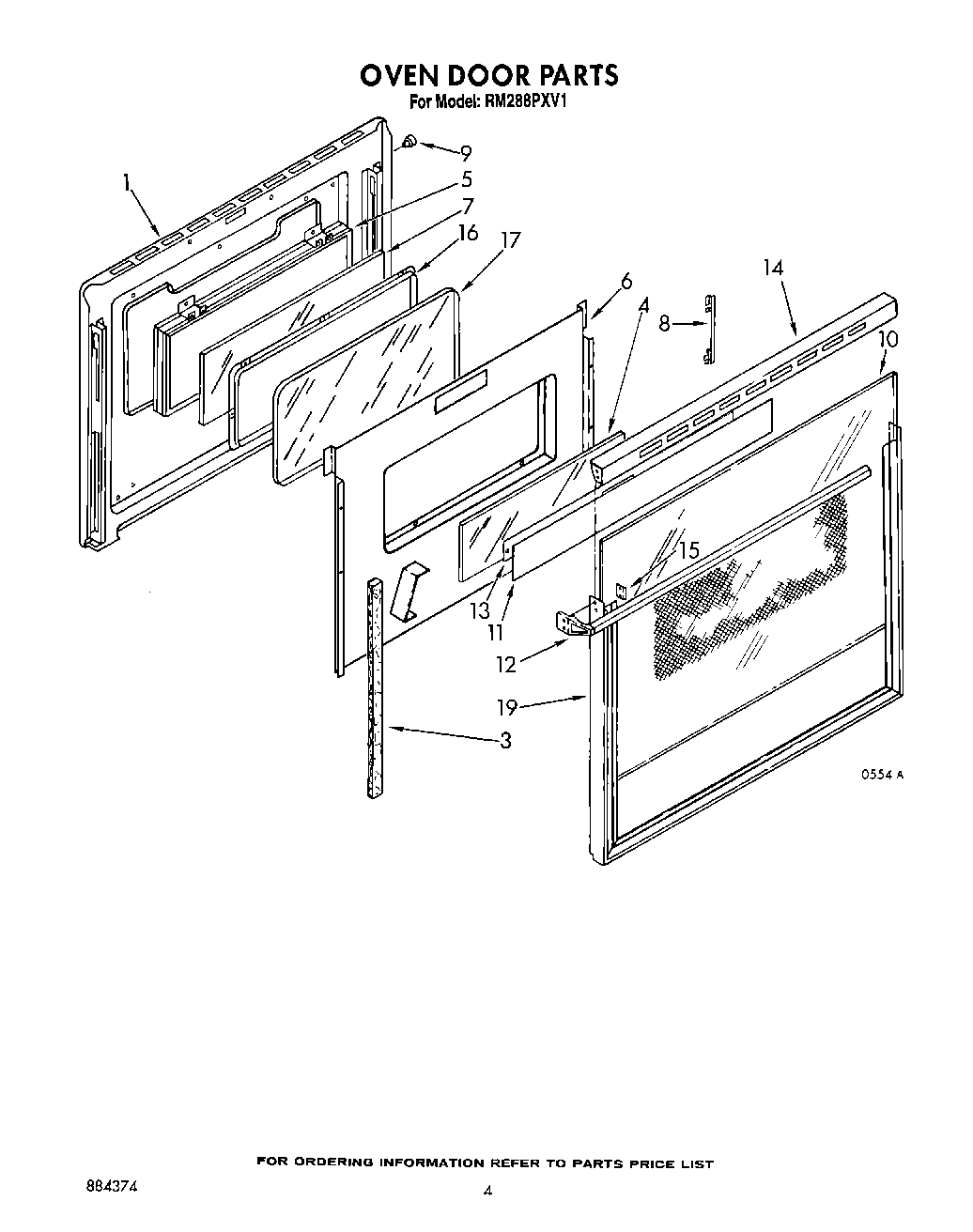

RM288PXV1 03 – OVEN DOOR

RM288PXV1 03 – OVEN DOOR

Written by

in

RM288PXV1 03 – OVEN DOOR

Products

Position	Product
1	Liner, Door
3	Seal, Flange (2)
4	Glass, Reflective
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
9	Bumper (4)
10	Glass, Panel (Black Model)
11	Foil, Door
12	WP355515 Whirlpool Screw
12	Handle, Oven Door
13	Sheild, Door
13	Screw,
14	Top, Door (Black Model)
14	Screw
15	Back Splash (Screw (4) 10AB x 1/2“)
15	Clip, Mtg (2)
16	Frame, Inner
16	Screw
18	Insulation, Door
19	Frame, Door
