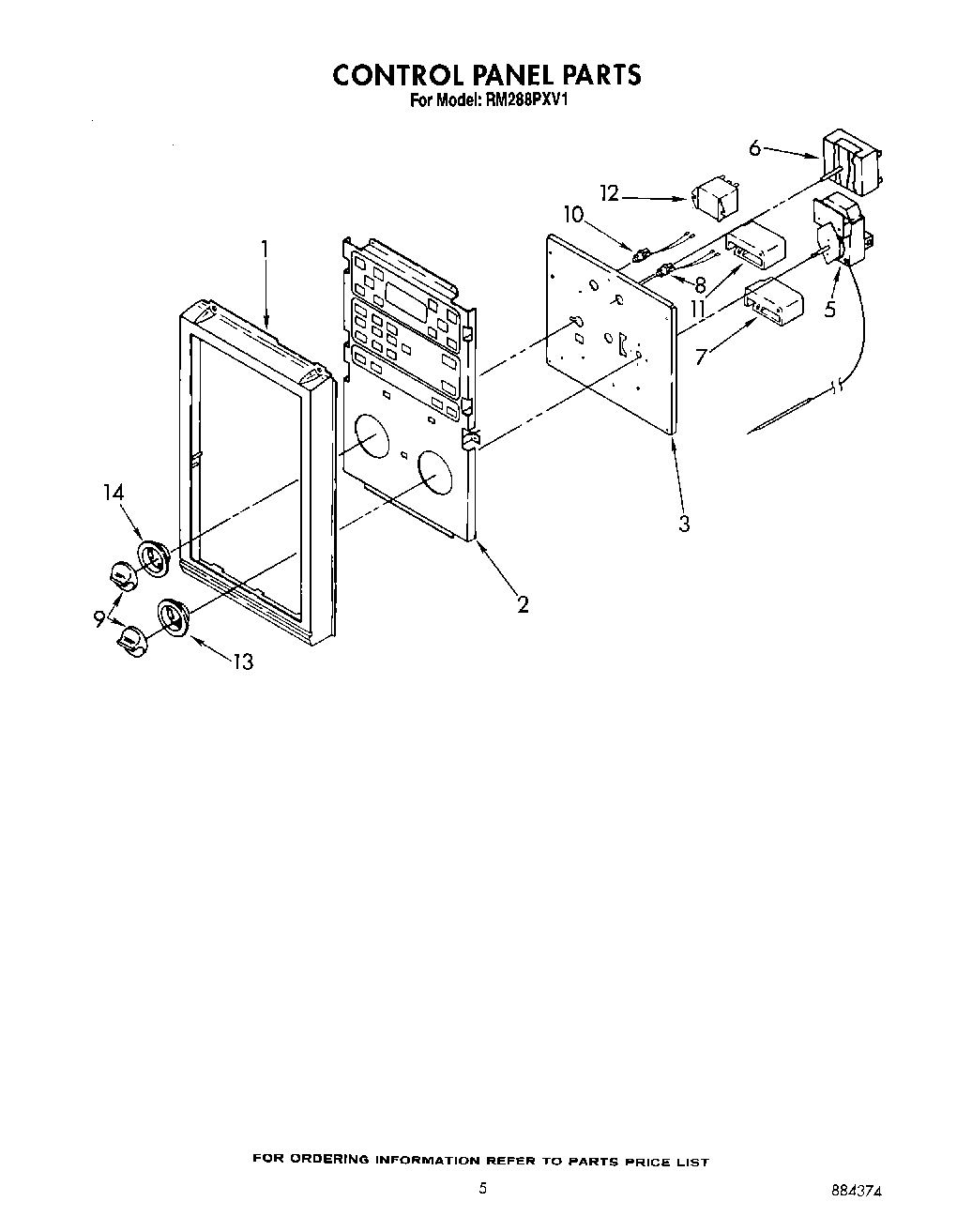

RM288PXV1 04 – CONTROL PANEL, LIT/OPTIONAL

RM288PXV1 04 – CONTROL PANEL, LIT/OPTIONAL

Written by

in

RM288PXV1 04 – CONTROL PANEL, LIT/OPTIONAL

Products

PositionProduct
WPL LIT313358
Cook
WPL LIT3147287
WPL LIT3147571
WPL LIT312901
WPL LIT3147575
WPL LIT3149026
Use & Care Guide (Microwave)
Repair Parts List
1Frame, Control Panel
2Module, Control
3Bracket, Control (Mounting)
5WP313808 Whirlpool Screw
5Thermostat
6Switch, Selector
6Screw, 8-32 x 3/16 (2)
7Switch, Bake
7WPL 314215
8Light, Indicator (4)
8WP693995 Whirlpool Screw
9WP3150371 Whirlpool Control Knob
10screw
10Light, Indicator
10Screw
11Sw
11WPL 312006
12Relay, Vent (24V, Clear)
12Screw
13Escutcheon, Thermostat
14Screw,
14Screw, 11-16 x 1/2 Double Load Space Thread (5)
14WP311068 Whirlpool Dial Knob Black
