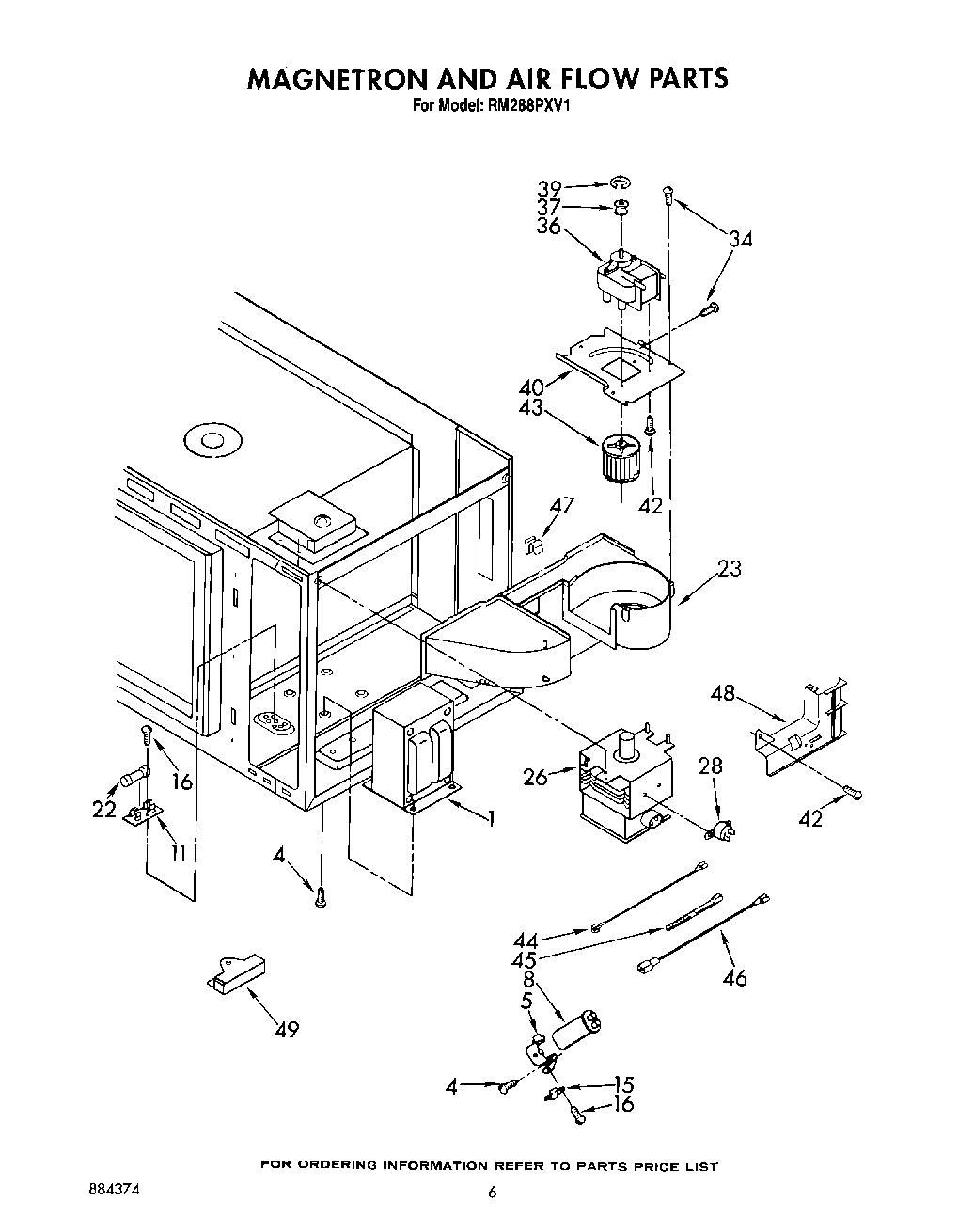

RM288PXV1 05 – MAGNETRON AND AIR FLOW

Products

Position	Product
1	Transformer (Alt.)
4	Screw, 10-32 x 1/2 Hex Washer W/Ground Ring (10)
5	Bracket, Capacitor
8	Capacitor
11	4454949 Whirlpool Oven Fuse Block
15	Rectifier, High Voltage
22	WPW10017410 Whirlpool Fuse
23	Air Duct (Horizontal)
26	Magnetron
28	Thermal Protector
28	Screw, 6A x 3/8 (2)
34	Screw, 11-16 x 1/2 Double Load Space Thread (5)
34	screw
36	Transmotor
37	Pulley, Motor
39	``E`` Ring
40	Bracket, Motor
42	WP486579 Whirlpool Air Conditioner Screw
43	Wheel, Blower
44	Jumper, High Voltage Red (6-5/16``)
45	WPW10339879 Whirlpool Wire Tie
46	High Voltage Lead, Gray 6-3/4`` (2)
47	Clip
48	Extension, Air Duct
49	Fuse, Thermal
