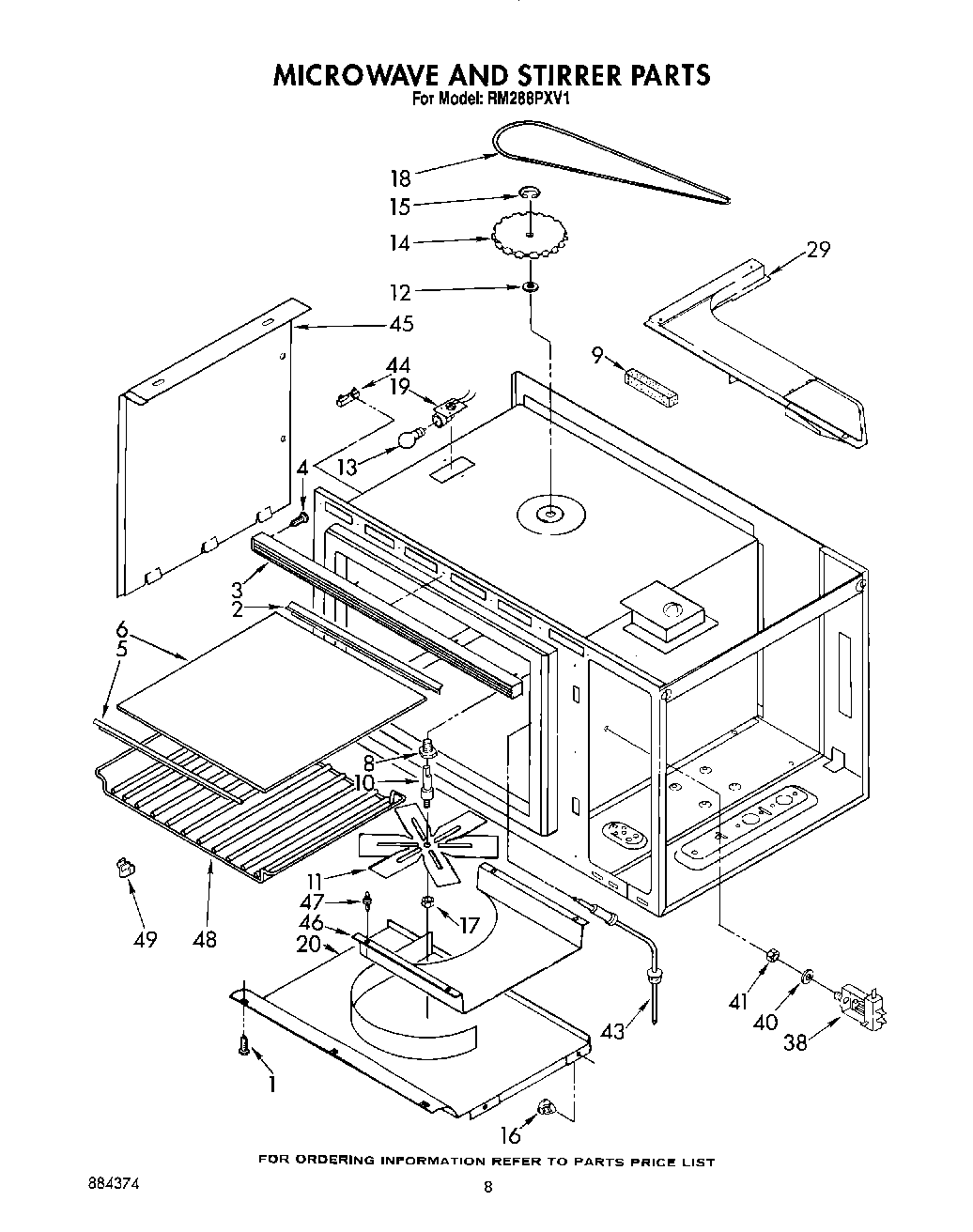

RM288PXV1 06 – MICROWAVE AND STIRRER

Products

Position	Product
2	Trim, Shelf (Rear)
3	grille, air
4	screw (3)
5	Trim, Shelf (Front)
6	Shelf, Microwave (Install with Silastic 482338)
8	Bushing, Stirrer
9	Seal, Foam
10	Shaft, Stirrer
11	Stirrer Blade
12	Washer, Nylon
13	WP3395618 Whirlpool Light Bulb
14	Pulley, Stirrer Blade
15	“E“ Ring
16	Fastener (4)
17	WP487939 Whirlpool Refrigerator Nut
18	WP313646 Whirlpool Microwave Drive Belt
19	Snap-In Socket
20	screw, 8-32 x 1/2 (3)
20	Silicone Rubber Gasket
29	Baffle, Air Exhaust
29	Fastener (2)
38	Probe Jack
40	Washer, Internal Lock
41	Nut
43	(Alt.)
44	Fuse, Thermal
44	screw
45	Cover, Side
45	WP488729 Whirlpool Refrigerator Door Screw
46	Plate, Tuning
47	Support (4)
48	rack, wire
49	WP3149478 Whirlpool Microwave Support
