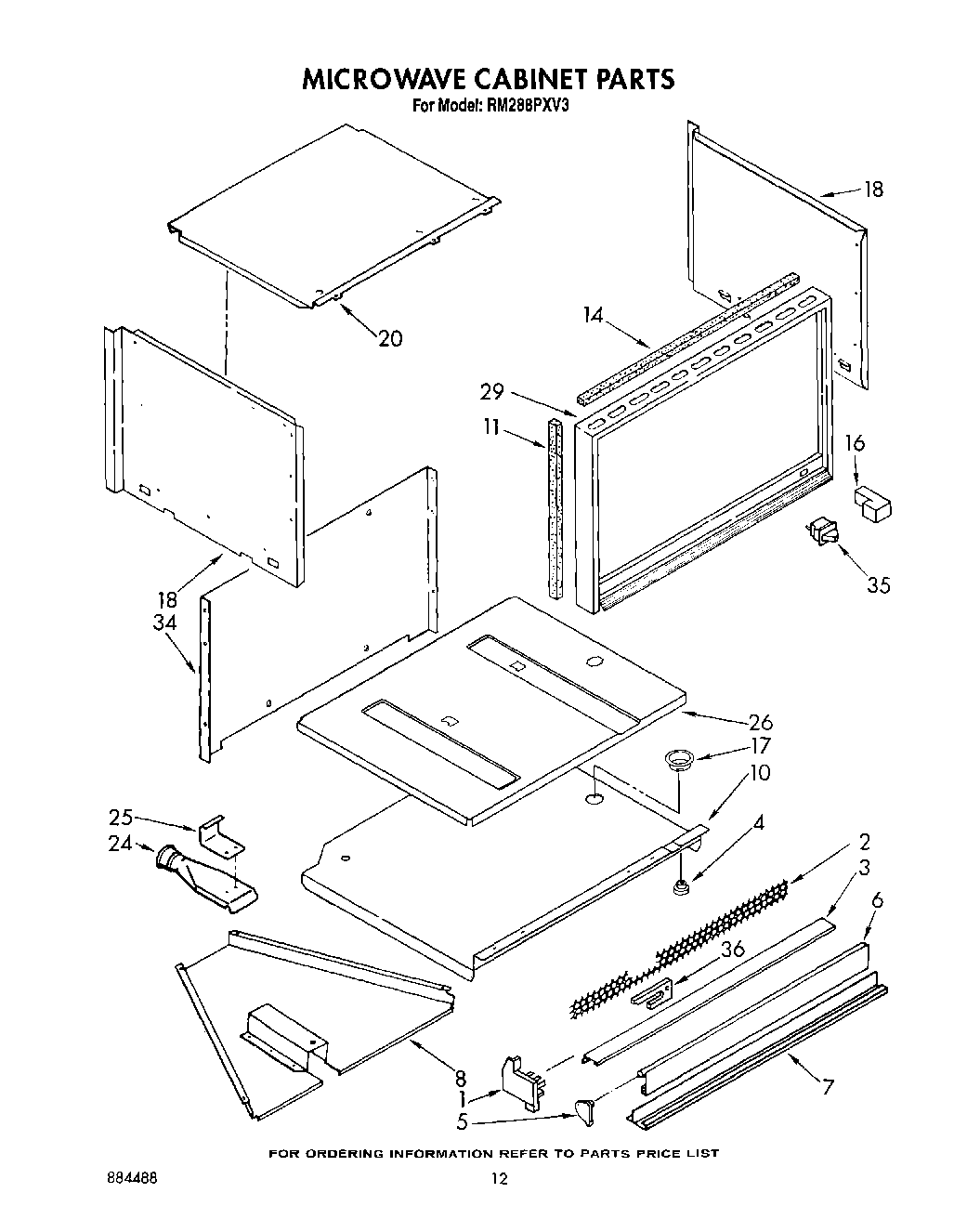

RM288PXV3 08 – MICROWAVE CABINET

Products

Position	Product
1	End Cap, L.H.
1	End Cap, R.H.
2	Trim, Oven Vent
3	Screw
3	Screw, 10-32 x 1/2
3	Trim, Top
4	Snap Bushing
5	End Trim, Vent (Left Side)
5	End Trim, Vent (Right Side)
6	Door, Vent
7	WP965173 Whirlpool Dishwasher Screw
7	Trim, Bottom
8	Box Air
10	Support Plate
11	WPL 3147595
14	WPL 3147590
16	Seal, Foam (2)
17	Bushing, Snap
18	Side Panel, L.H.
18	Side Panel, R.H.
20	Panel, Top
24	Vent Tube
25	WP488729 Whirlpool Refrigerator Door Screw
25	Support, Vent Tube
25	Screw,
26	Panel, Support
29	Frame
34	Cover, Rear
35	WP4314961 Whirlpool Lite Switch
35	Screw, 10A x 1/2 (2) (Black)
35	screw
36	WPL 309080
36	Shield, Air
