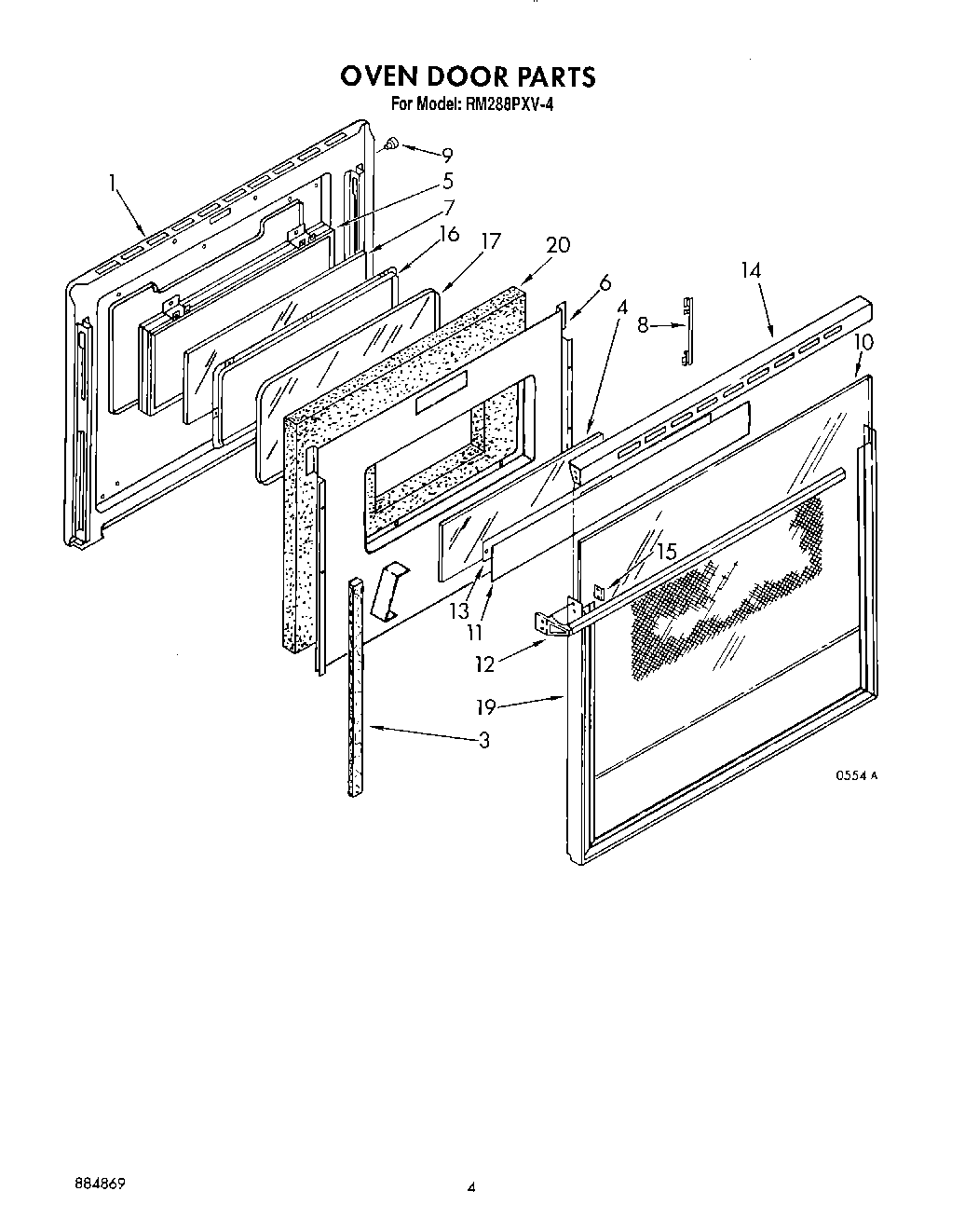

RM288PXV4 03 – OVEN DOOR

RM288PXV4 03 – OVEN DOOR

Written by

in

RM288PXV4 03 – OVEN DOOR

Products

PositionProduct
1Liner, Door
3Seal, Flange (2)
4Glass, Reflective
5Seal, Door
6Retainer,
7WP3169203 Whirlpool Door Glass
8Retainer, Glass (2)
9Bumper (4)
10Glass, Panel (Black Model)
11Foil, Door
12WP355515 Whirlpool Screw
12Handle, Oven Door
13Screw,
13Sheild, Door
14Screw, (2) 10-16 x 1/2
14Top, Door (Black Model)
15Clip, Mtg (2)
16Frame, Inner
16Screw
19Frame, Door
20Insulation, Door
