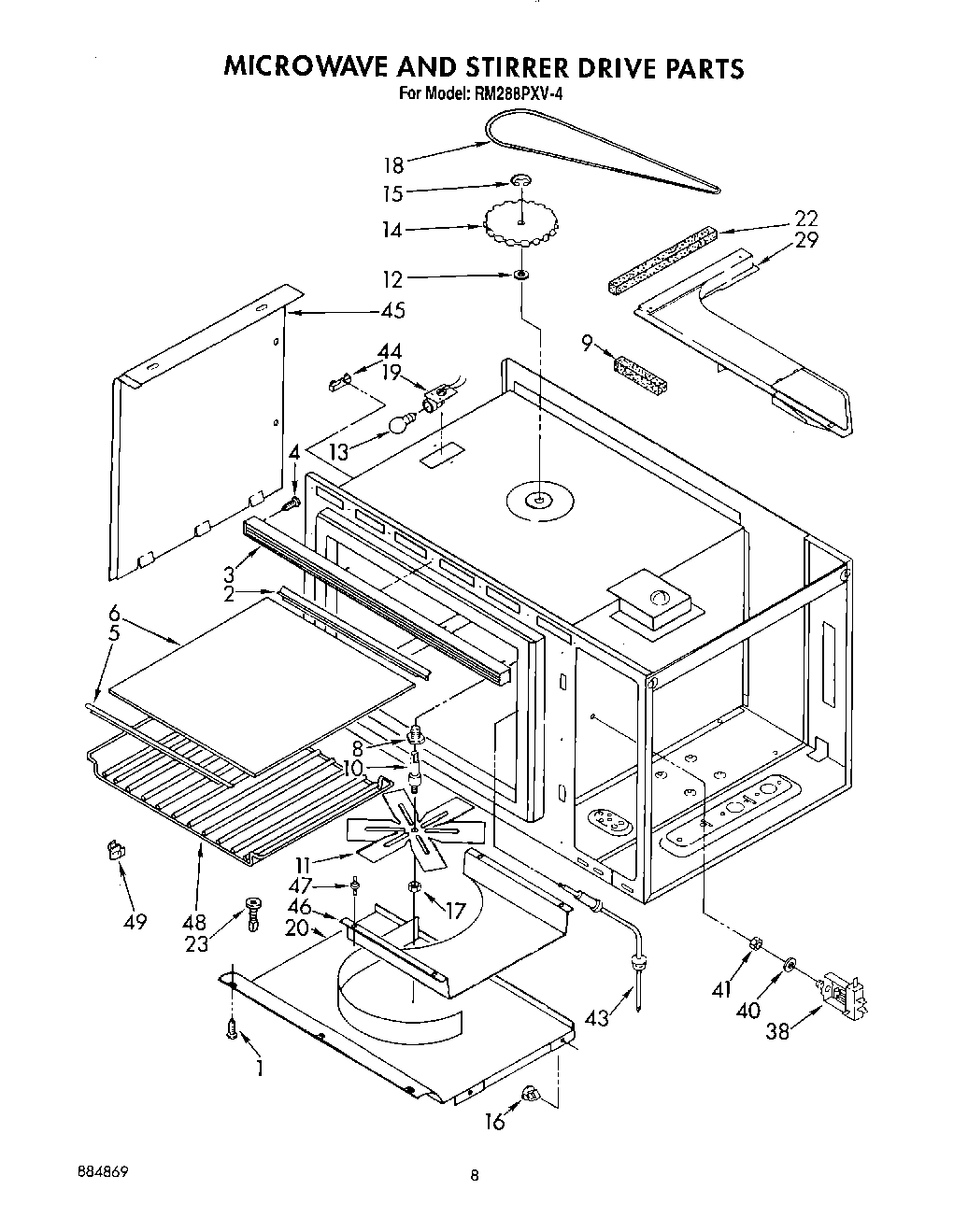

RM288PXV4 06 – MICROWAVE AND STIRRER DRIVE

Products

Position	Product
2	Trim, Shelf (Rear)
3	Grille, Air
4	screw (3)
5	Trim, Shelf (Front)
6	Shelf, Microwave (Install with Silastic 482338)
6	W10841140 Whirlpool Dishwasher Adhesive
8	Bushing, Stirrer
9	Seal, Foam
10	Shaft, Stirrer
11	Stirrer Blade
12	Washer, Nylon
13	WP3395618 Whirlpool Light Bulb
14	Pulley, Stirrer Blade
15	``E`` Ring
16	Fastener (4)
17	WP487939 Whirlpool Refrigerator Nut
18	WP313646 Whirlpool Microwave Drive Belt
19	Snap-In Socket
19	screw
22	Seal, Foam
23	Fastener (2)
29	Baffle, Air Exhaust
38	Probe Jack
40	Washer, Internal Lock
41	Nut
43	(Alt.)
44	Fuse, Thermal
45	screw, 8-32 x 1/2 (3)
45	WP488729 Whirlpool Refrigerator Door Screw
45	Cover, Side
46	Plate, Tuning
47	Support (4)
48	rack, wire
49	WP3149478 Whirlpool Microwave Support
