RM288PXV4 07 – MICROWAVE DOOR
Written by
in

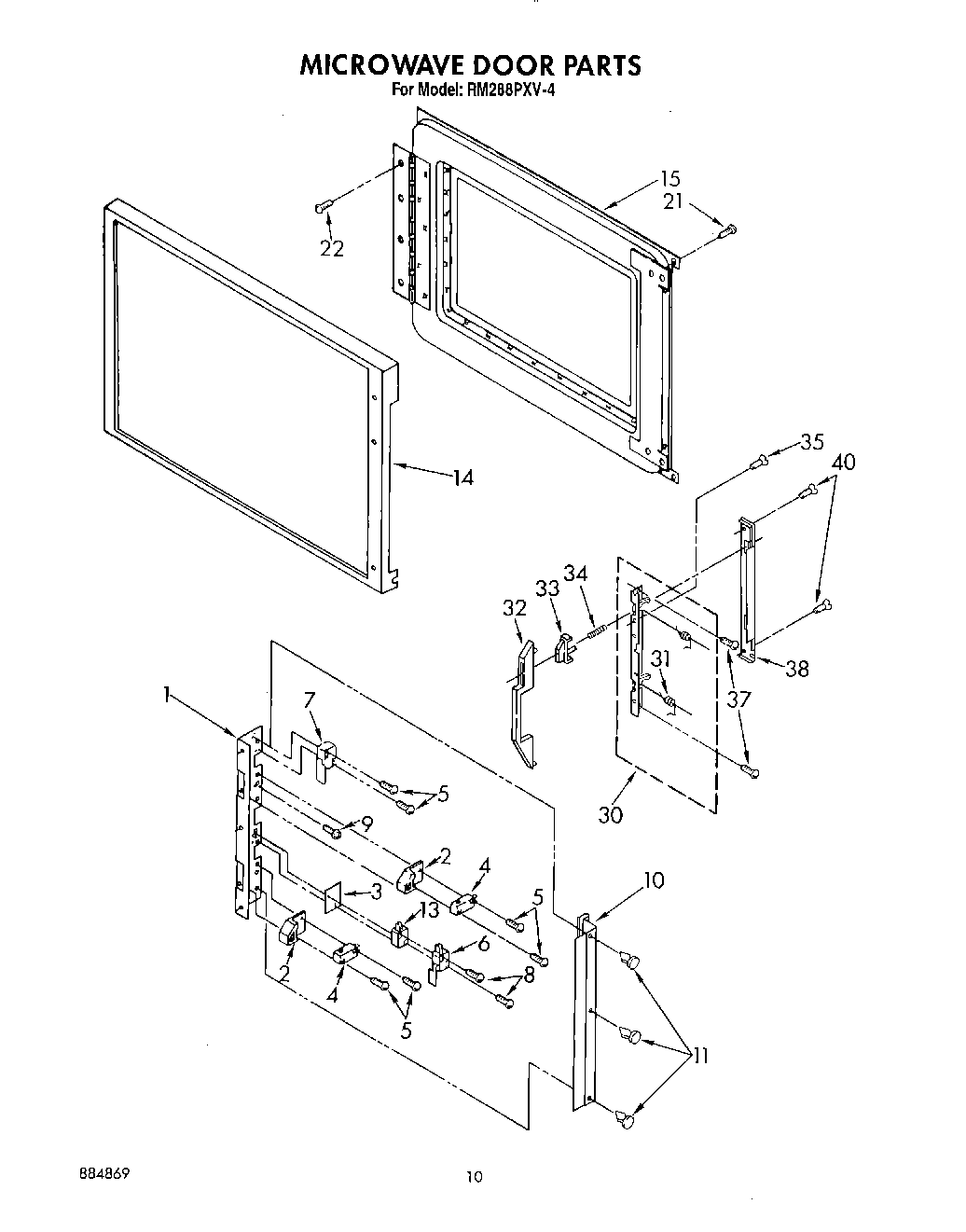

RM288PXV4 07 – MICROWAVE DOOR
Products
Position
Product
1
Bracket, Catch
1
screw
2
Catch (2)
3
Insulator
4
814037 Whirlpool Microwave Switch
5
WPL 312717
6
Switch, Light Monitor (Alt.)
6
Switch, Light/ Monitor
6
Switch, Light Monitor (Alt.)
7
Switch, Miniature
8
Screw, 4-40 x 10 (2)
9
WPL 309080
10
shield
11
Fastener (4)
13
Switch
13
Switch (Alt.)
13
Spring
14
Frame, Door
15
Door, Inner
22
WPW10068250 Whirlpool Dishwasher Screw
30
Latch Assembly
31
Spring, Torsion (2)
32
Handle, Door
33
313611 Whirlpool Microwave Door Button
34
Rear Top Burner-Lt. or Rt. (Inc`s 64 & 65)
35
303776 Whirlpool Dishwasher Screw
37
Screw (2)
38
End Cap
40
Screw, 8-22 (5)
←
