RM288PXV5 04 – CONTROL PANEL

RM288PXV5 04 – CONTROL PANEL

Written by

in

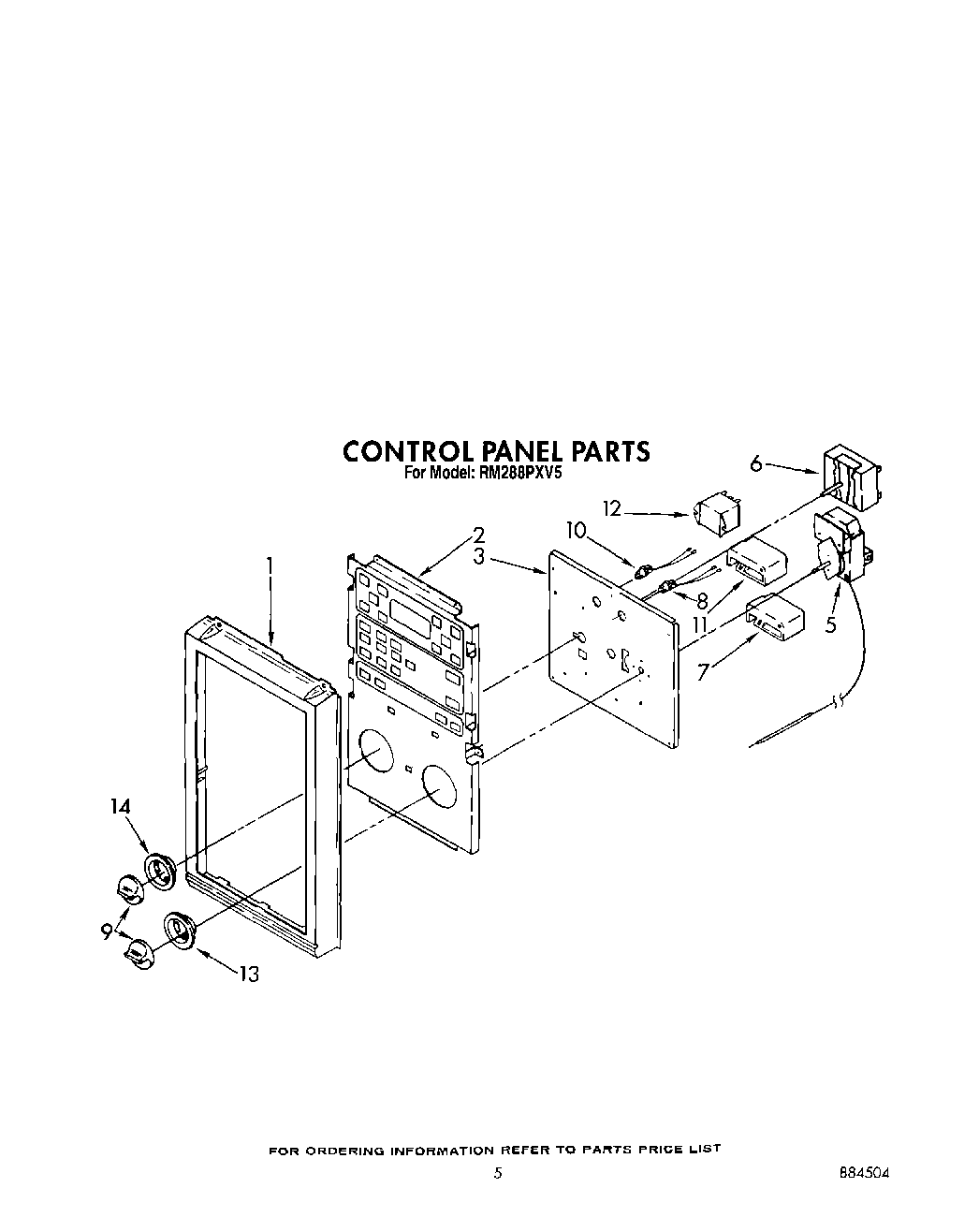

RM288PXV5 04 – CONTROL PANEL

Products

Position	Product
1	Frame, Control Panel
2	Module, Control
3	Screw
3	Bracket, Control (Mounting)
5	WP313808 Whirlpool Screw
5	Thermostat
6	Switch, Selector
6	Screw, 8-32 x 3/16 (2)
7	Switch, Bake
8	Light, Indicator (4)
9	WP3150371 Whirlpool Control Knob
10	Light, Indicator
11	WPL 314215
11	Sw
12	Relay, Vent (24V, Clear)
12	Screw
13	Escutcheon, Thermostat
14	WP311068 Whirlpool Dial Knob Black
14	Screw,
