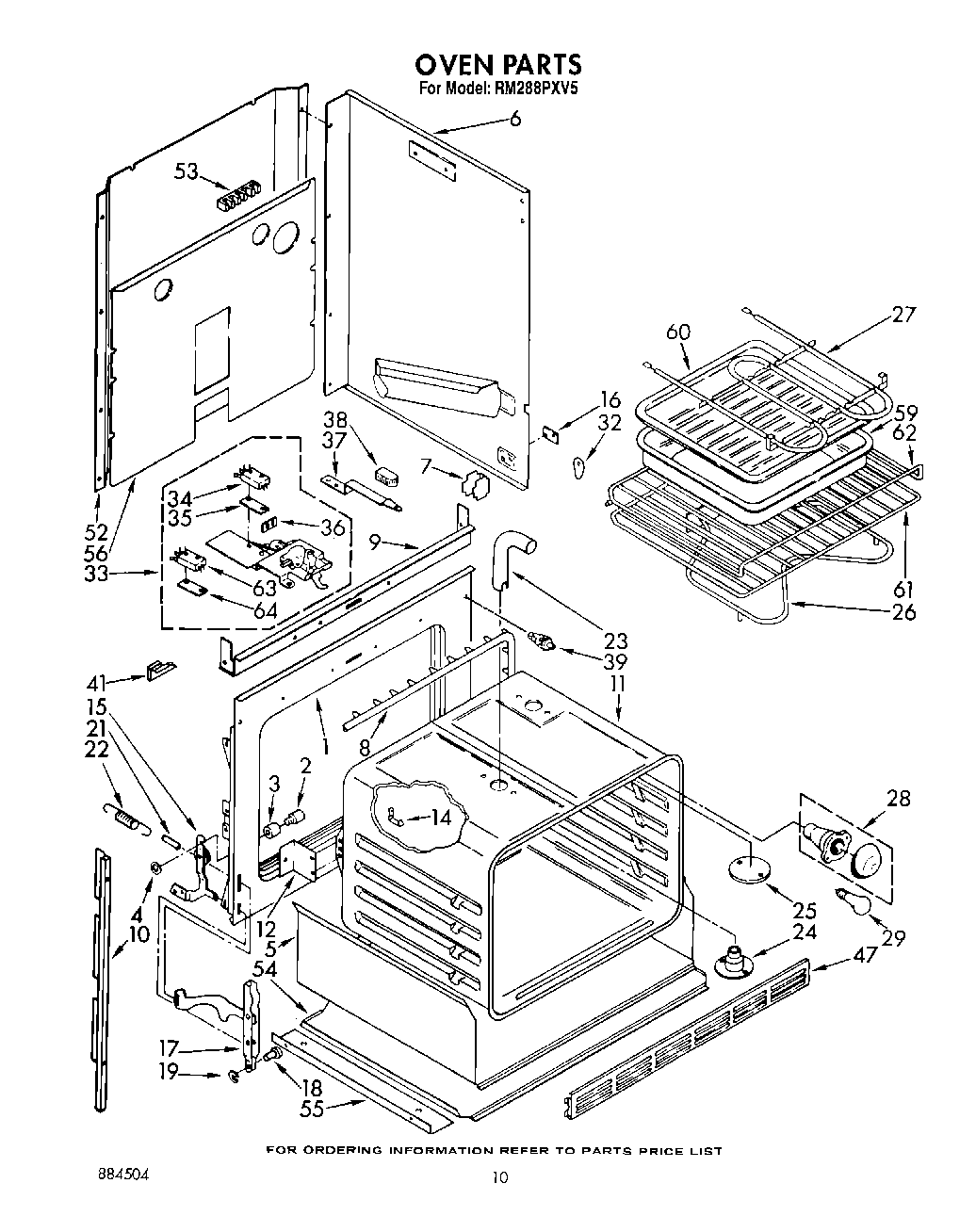

RM288PXV5 08 – OVEN, LIT/OPTIONAL

Products

Position	Product
	Screw (2)
	Cook
	WPL LIT3147287
	WPL LIT3147571
	WPL LIT312901
	WPL LIT884504
	WPL LIT312913
	WPL LIT3147575
	WPL LIT3149026
	WPL LIT313358
1	Frame, Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Insulation Tray
6	Side Wrapper (Left Side)
6	Side Wrapper (Right Side)
7	Support, Side Wrapper (4)
8	WP313808 Whirlpool Screw
8	WPL 3185197
9	Baffle, Top Insulation
10	Side Trim (Right Side)
10	Side Trim (Left Side)
11	Oven, 30“
12	SCREW
12	Bracket, Oven Mounting (2)
14	98005642 Whirlpool Clip
15	Hinge Ear, L.H.
15	Hinge Ear, R.H.
16	Plate, Side Panel (2)
16	WP308544 Whirlpool Screw
17	Channel Arm (2)
18	WP307986 Whirlpool Hinge Pin
19	Retainer Ring (2)
21	WP308125 Whirlpool Microwave Range/Cooktop Anchor
22	WP308126 Whirlpool Door Spring
23	Tube, Vent
24	Eliminator, Smoke
24	WP488729 Whirlpool Refrigerator Door Screw
25	WPL 310662
26	ELMNT-BAKE
27	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
28	W11594027 Whirlpool Range Oven Light Socket
29	RANGE ONLY 40W 120V APPL BULB
32	WPL 311982
33	Latch Assembly
33	Screw (3)
34	Safety Switch
34	Screw
35	Insulator, Switch
36	Shield, Latch
36	Screw
37	Screw
37	Latch, Handle
38	Knob, Latch Handle
38	Screw, 80 x 5/16
39	Switch, Door
41	Shield, Air
47	Grill, Bottom
47	Grill, Bottom (Screw (3))
52	Panel, Back (2)
53	WP8203546 Whirlpool Terminal Block
53	Screw (10-12 x .875)
53	WP112432 Whirlpool Nut Assembly
53	WPL 3147001
54	WPL 310458
55	Angle, Support (2)
56	Cover, Rear
60	4396923 Whirlpool Broil Pan Set Gray Porcelain
61	WPL 308173
62	WPL 308172
63	Switch, Lock
64	WPL 3149328
64	WPL 3147864
64	WPL 310433
64	WPL 310434
