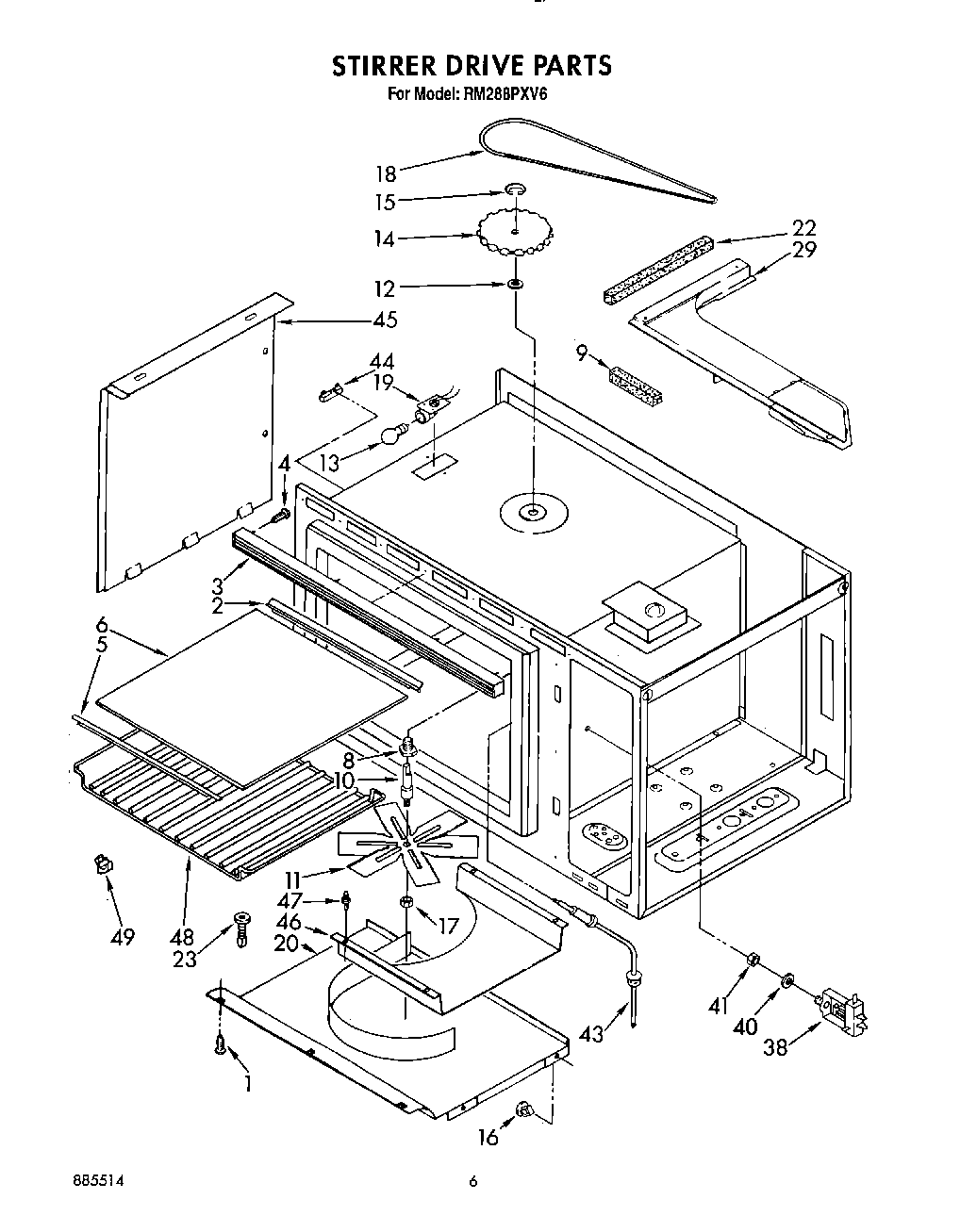

RM288PXV6 05 – STIRRER DRIVE, OPTIONAL

RM288PXV6 05 – STIRRER DRIVE, OPTIONAL

Written by

in

RM288PXV6 05 – STIRRER DRIVE, OPTIONAL

Products

PositionProduct
2Trim, Shelf (Rear)
3Grille, Air
4screw (3)
5Trim, Shelf (Front)
6Shelf, Microwave (Install with Silastic 482338)
8Bushing, Stirrer
9Seal, Foam
10Shaft, Stirrer
11Stirrer Blade
12Washer, Nylon
13WP3395618 Whirlpool Light Bulb
14Pulley, Stirrer Blade
15“E“ Ring
16Fastener (4)
17WP487939 Whirlpool Refrigerator Nut
18WP313646 Whirlpool Microwave Drive Belt
19Snap-In Socket
20Silicone Rubber Gasket
20screw, 8-32 x 1/2 (3)
22Seal, Foam
23Fastener (2)
29Baffle, Air Exhaust
38Probe Jack
40Washer, Internal Lock
41Nut
43(Alt.)
44screw
44Fuse, Thermal
45WP488729 Whirlpool Refrigerator Door Screw
45Cover, Side
46Plate, Tuning
47Support (4)
48rack, wire
49W10841140 Whirlpool Dishwasher Adhesive
49Golden Harvest (Uncut)
49Wire (14 Ga. 150 c Yellow)
49WP3149478 Whirlpool Microwave Support
49Touch-Up, Oven
49WP75614 Whirlpool Connector
49Wire, 25“ Roll (White 14 GA.)
49Wire, 25` Roll (Red 14 Ga.)
49Wire, 25` Roll (Black 14 Ga.)
49WPL 799832
49Enamel, Black (1 Qt. Uncut)
49511873 Whirlpool Refrigerator Paint
49350942 Whirlpool Spray Paint
49Golden Harvest
4972110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
49Almond (Uncut)
49WP72107 Whirlpool Touchup
49799344 Whirlpool Refrigerator Paint
4972017 Whirlpool Appliance Touch-Up Paint White
49350956 Whirlpool Spray Assembly
49285006 Whirlpool Spray
4972032 Whirlpool Touch Up Paint Black
49242831 Whirlpool Oven Wire
49WPL 3171507
49261900 Whirlpool Microwave Spray
49Grease
49Leveler (Thinner) (2oz.)
49WPL 591014
491
49Wire (14 Ga. 200 c Brown)
4918 Ga. 80~c Rating (Red)
49Wire (12 Ga. 150 c Black)
49Wire (14 Ga. 150 c Orange)
49Wire (14 Ga. 150 c Green)
49Wire (14 Ga. 150 c Brown)
49Wire (14 Ga. 150 c Blue)
49WP261869 Whirlpool Microwave Paint
49350930 Whirlpool White Spray Paint
