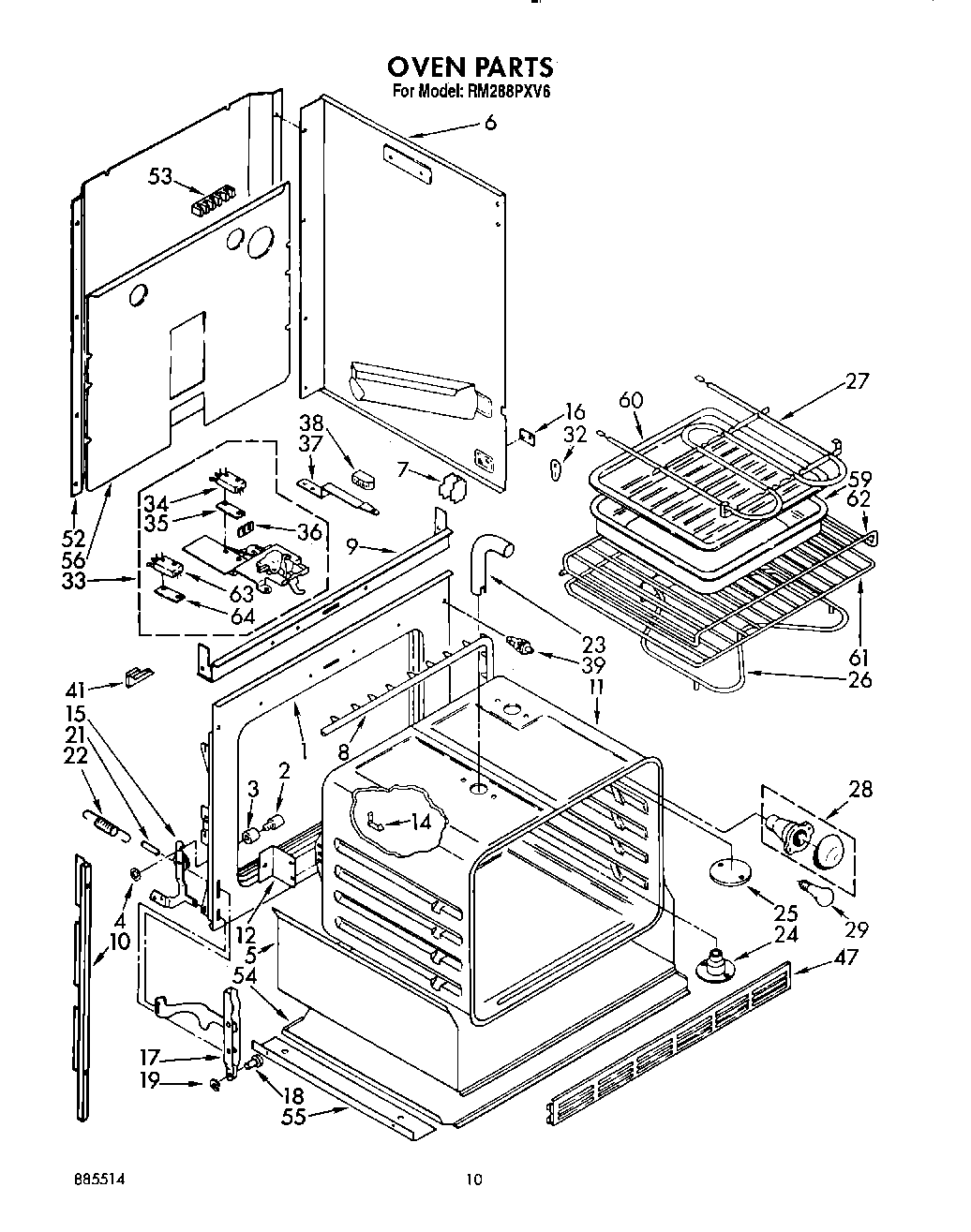

RM288PXV6 08 – OVEN, LIT/OPTIONAL
Written by
in
RM288PXV6 08 – OVEN, LIT/OPTIONAL
Products
Position
Product
WPL LIT312913
WPL LIT3147571
Cook
WPL LIT313358
WPL LIT3147287
WPL LIT312901
WPL LIT885514
WPL LIT3147575
WPL LIT3149026
1
Frame, Front
2
Pin, Hinge Ear (2)
3
Snubber, Door (2)
4
Pushnut (2)
5
Insulation Tray
6
Side Wrapper (Left Side)
6
Side Wrapper (Right Side)
7
Support, Side Wrapper (4)
8
WP313808 Whirlpool Screw
8
WPL 3185197
9
Baffle, Top Insulation
10
Side Trim (Left Side)
10
Side Trim (Right Side)
11
Oven 30“
12
SCREW
12
Bracket, Oven Mounting (2)
14
98005642 Whirlpool Clip
15
Hinge Ear, R.H.
15
Hinge Ear, L.H.
16
WP308544 Whirlpool Screw
16
Plate, Side Panel (2)
17
Channel Arm (2)
18
WP307986 Whirlpool Hinge Pin
19
Retainer Ring (2)
21
WP308125 Whirlpool Microwave Range/Cooktop Anchor
22
WP308126 Whirlpool Door Spring
23
Tube, Vent
24
WP488729 Whirlpool Refrigerator Door Screw
24
Eliminator, Smoke
25
WPL 310662
26
ELMNT-BAKE
27
WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
27
Screw (2)
28
W11594027 Whirlpool Range Oven Light Socket
29
RANGE ONLY 40W 120V APPL BULB
32
WPL 3183005
33
Latch Assembly
33
Screw (3)
34
Screw
34
Safety Switch
35
Insulator, Switch
36
Screw
36
Shield, Latch
37
Latch, Handle
37
Screw
38
Screw
38
Knob, Latch Handle
39
Switch, Door
41
Shield, Air
47
Grill, Bottom
47
Grill, Bottom (Screw (3))
52
Panel, Back
53
Screw (10-12 x .875)
53
WPL 3147001
53
WP8203546 Whirlpool Terminal Block
53
WP112432 Whirlpool Nut Assembly
54
WPL 310458
55
Angle, Support (2)
56
Cover, Rear
60
4396923 Whirlpool Broil Pan Set Gray Porcelain
61
WPL 308173
62
WPL 308172
63
Switch, Lock
64
WPL 310433
64
WPL 3149328
64
WPL 310434
64
WPL 3147864
←
