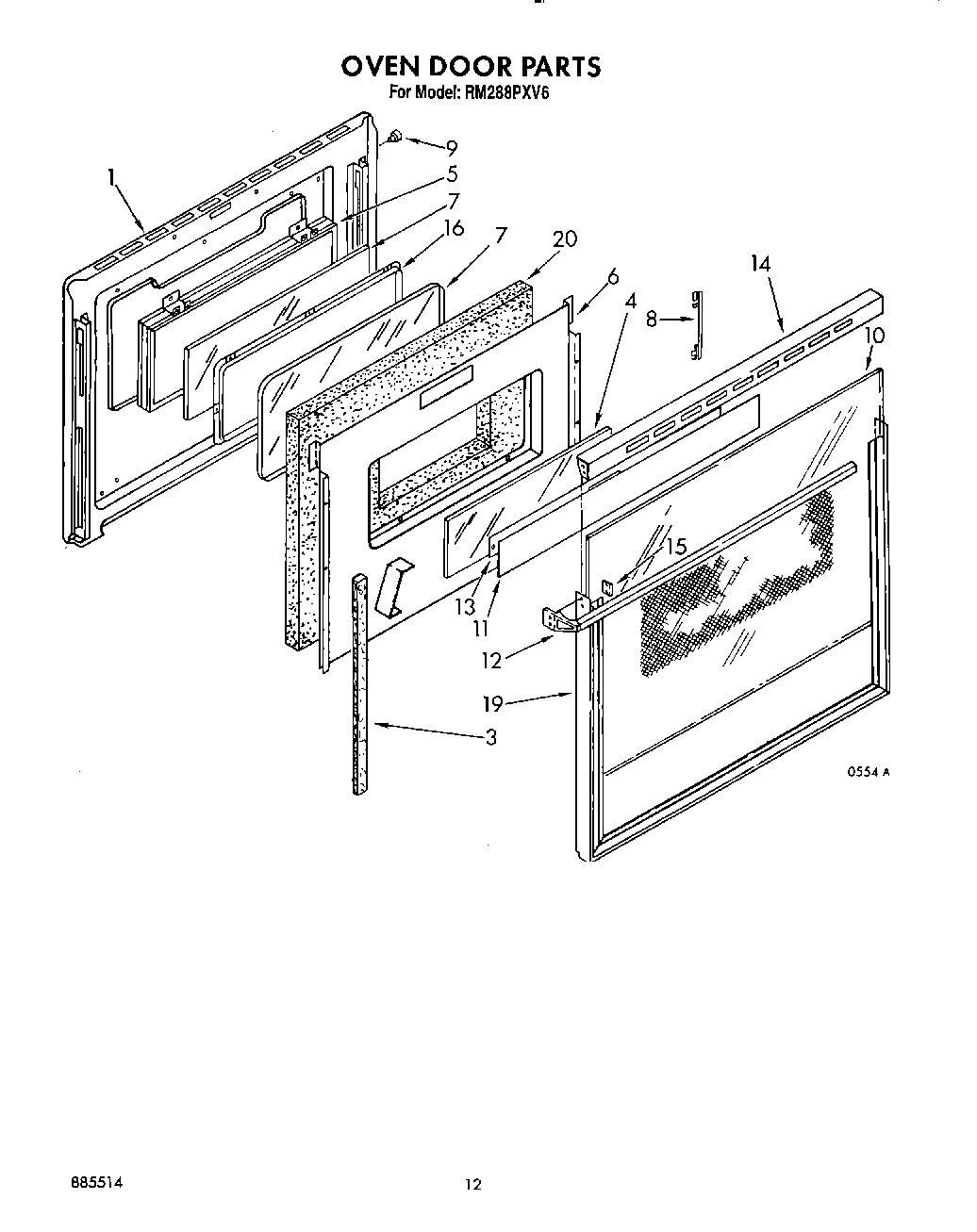

RM288PXV6 09 – OVEN DOOR

RM288PXV6 09 – OVEN DOOR

Written by

in

RM288PXV6 09 – OVEN DOOR

Products

Position	Product
1	Liner, Door
3	Seal, Flange (2)
4	Glass, Clear
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
9	Bumper (4)
10	Glass, Panel (Black Model)
11	Foil, Door
12	Handle, Oven Door
12	WP355515 Whirlpool Screw
13	Sheild, Door
13	Screw,
14	Screw, (2) 10-16 x 1/2
14	Top, Door (Black Model)
15	Clip, Mtg (2)
16	Screw
16	Frame, Inner
19	Frame, Door
20	Insulation, Door
