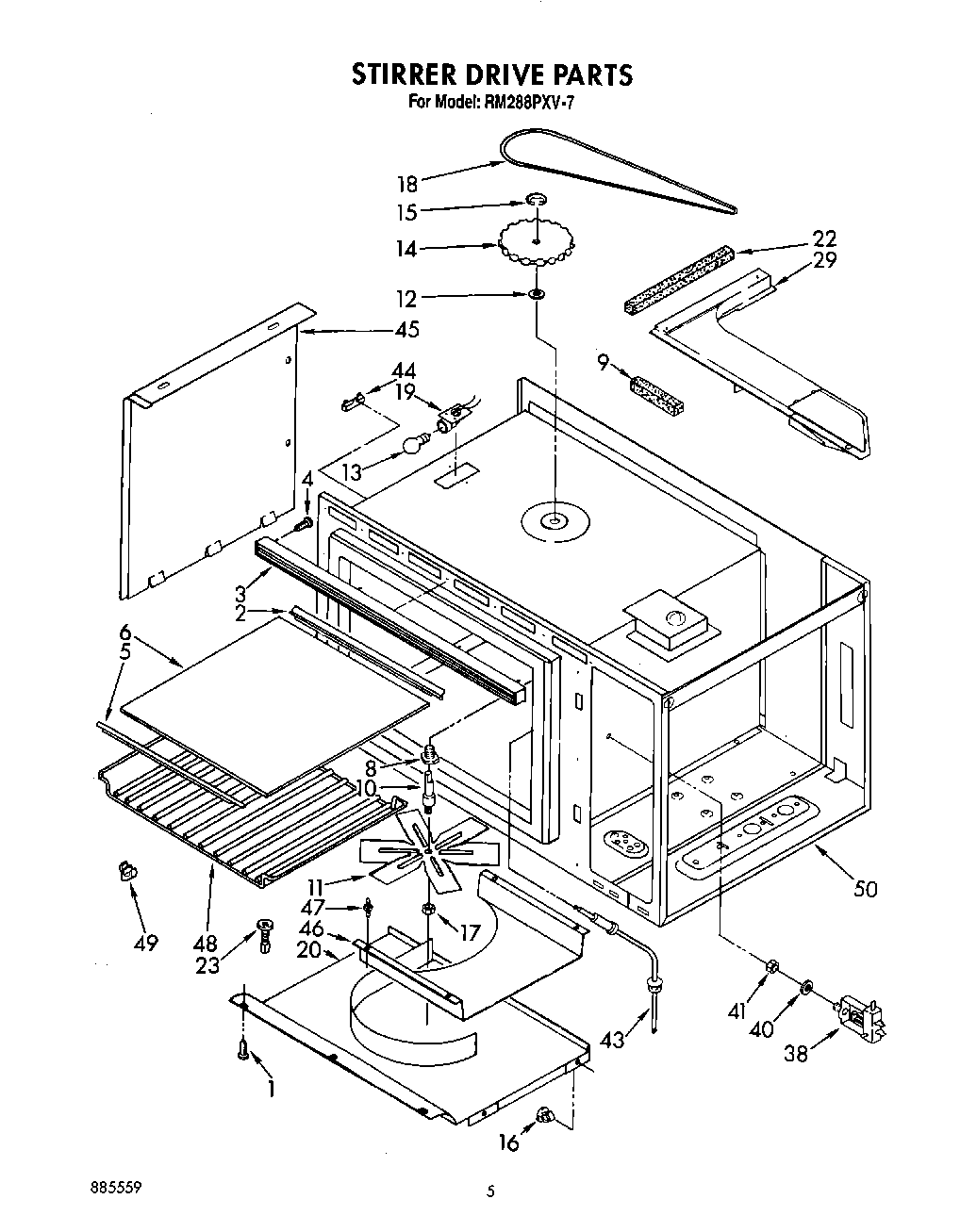

RM288PXV7 04 – STIRRER DRIVE, OPTIONAL

Products

Position	Product
2	Trim, Shelf (Rear)
3	Grille, Air
4	screw (3)
5	Trim, Shelf (Front)
6	Shelf, Microwave (Install with Silastic 482338)
8	Bushing, Stirrer
9	Seal, Foam
10	Shaft, Stirrer
11	Stirrer Blade
12	Washer, Nylon
13	WP3395618 Whirlpool Light Bulb
14	Pulley, Stirrer Blade
15	“E“ Ring
16	Fastener (4)
17	WP487939 Whirlpool Refrigerator Nut
18	WP313646 Whirlpool Microwave Drive Belt
19	Snap-In Socket
20	Silicone Rubber Gasket
20	screw, 8-32 x 1/2 (3)
22	Seal, Foam
23	Fastener (2)
29	Baffle, Air Exhaust
38	Probe Jack
40	Washer, Internal Lock
41	Nut
43	(Alt.)
44	screw
44	Fuse, Thermal
45	WP488729 Whirlpool Refrigerator Door Screw
45	Cover, Side
46	Plate, Tuning
47	Support (4)
48	rack, wire
49	WP3149478 Whirlpool Microwave Support
50	Wire (14 Ga. 150 c Yellow)
50	Touch-Up, Oven
50	W10841140 Whirlpool Dishwasher Adhesive
50	WPL 3171640
50	WP75614 Whirlpool Connector
50	Wire, 25“ Roll (White 14 GA.)
50	Wire, 25` Roll (Red 14 Ga.)
50	Wire, 25` Roll (Black 14 Ga.)
50	WPL 799832
50	Enamel, Black (1 Qt. Uncut)
50	511873 Whirlpool Refrigerator Paint
50	350942 Whirlpool Spray Paint
50	Golden Harvest (Uncut)
50	Golden Harvest
50	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
50	Almond (Uncut)
50	WP72107 Whirlpool Touchup
50	799344 Whirlpool Refrigerator Paint
50	72017 Whirlpool Appliance Touch-Up Paint White
50	350956 Whirlpool Spray Assembly
50	285006 Whirlpool Spray
50	72032 Whirlpool Touch Up Paint Black
50	WPL 3171507
50	261900 Whirlpool Microwave Spray
50	Grease
50	Leveler (Thinner) (2oz.)
50	WPL 591014
50	1
50	Wire (14 Ga. 200 c Brown)
50	18 Ga. 80~c Rating (Red)
50	Wire (12 Ga. 150 c Black)
50	Wire (14 Ga. 150 c Orange)
50	Wire (14 Ga. 150 c Green)
50	Wire (14 Ga. 150 c Brown)
50	Wire (14 Ga. 150 c Blue)
50	WP261869 Whirlpool Microwave Paint
50	242831 Whirlpool Oven Wire
50	350930 Whirlpool White Spray Paint
