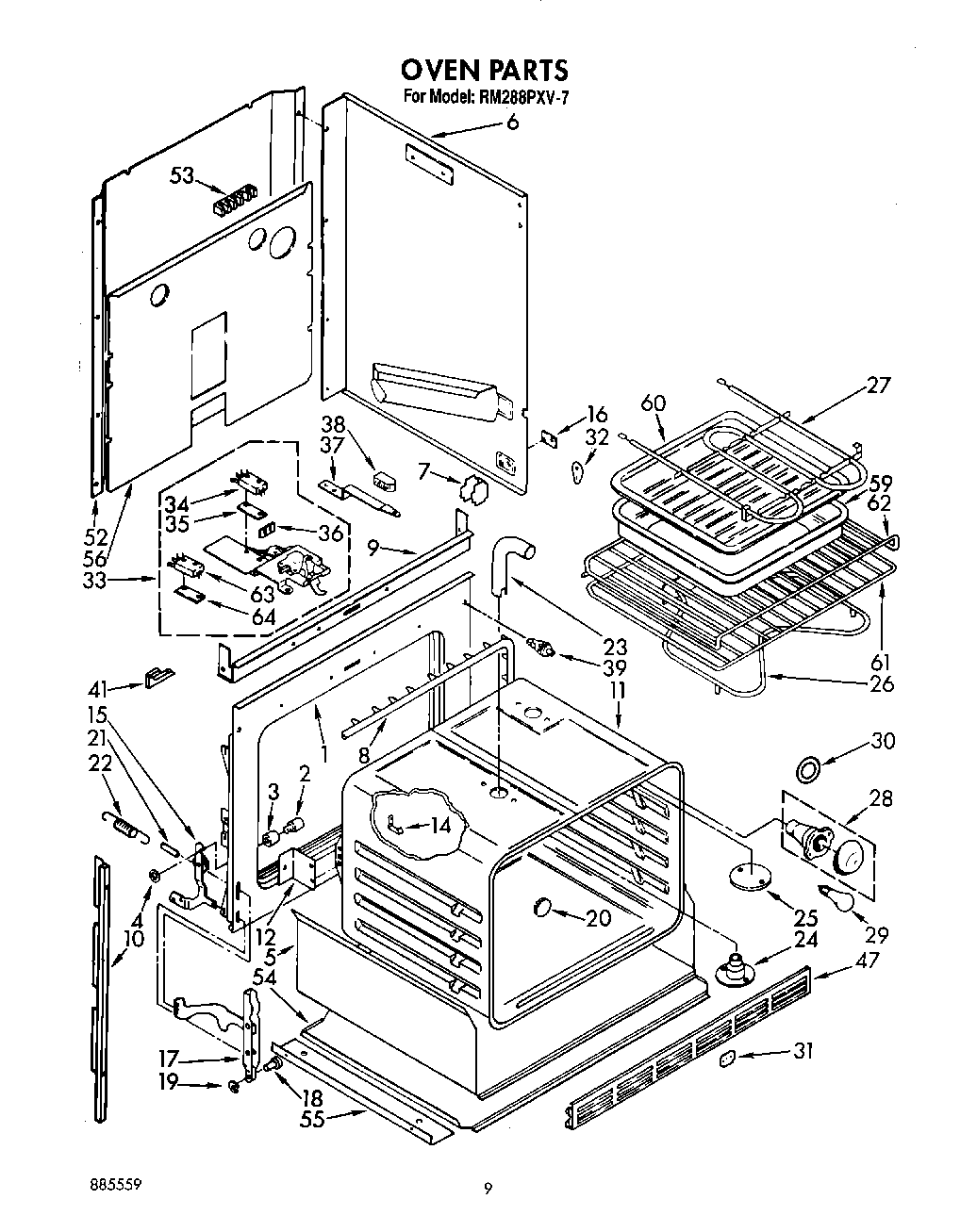

RM288PXV7 07 – OVEN, LITERATURE

RM288PXV7 07 – OVEN, LITERATURE

Written by

in

RM288PXV7 07 – OVEN, LITERATURE

Products

Position	Product
	WPL LIT3149026
	WPL LIT313358
	WPL LIT885559
	Brochure
	Cook
	WPL LIT3147287
	WPL LIT312901
	WPL LIT312913
	WPL LIT3147575
	WPL LIT3147571
1	Frame, Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Insulation Tray
6	Side Wrapper (Right Side)
6	Side Wrapper (Left Side)
7	Support, Side Wrapper (4)
8	WPL 3185197
8	WP313808 Whirlpool Screw
9	Baffle, Top Insulation
10	Side Trim (Right Side)
10	Side Trim (Left Side)
11	Oven 30“
12	SCREW
12	Bracket, Oven Mounting (2)
14	98005642 Whirlpool Clip
15	Hinge, Ear (Right Side)
15	Hinge, Ear (Left Side)
16	WP308544 Whirlpool Screw
16	Plate, Side Panel (2)
17	Channel Arm (2)
18	WP307986 Whirlpool Hinge Pin
19	Retainer Ring (2)
20	Button, Plug
21	WP308125 Whirlpool Microwave Range/Cooktop Anchor
22	WP308126 Whirlpool Door Spring
23	Tube, Vent
24	Eliminator, Smoke
24	WP488729 Whirlpool Refrigerator Door Screw
25	WPL 310662
26	ELMNT-BAKE
27	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
27	Screw (2)
28	W11594027 Whirlpool Range Oven Light Socket
29	RANGE ONLY 40W 120V APPL BULB
30	WP3184533 Whirlpool Range Light Lens Gasket
31	Plate, Cover
32	WPL 3183005
33	Latch Assembly
33	Screw (3)
34	Screw
34	Safety Switch
35	Insulator, Switch
36	Screw
36	Shield, Latch
37	Latch, Handle
37	Screw
38	Screw
38	Knob, Latch Handle
39	Switch, Door
41	Shield, Air
47	Grill, Bottom
47	Grill, Bottom (Screw (3))
52	Panel, Back
53	WP112432 Whirlpool Nut Assembly
53	WPL 3147001
53	WP8203546 Whirlpool Terminal Block
53	Screw (10-12 x .875)
54	WPL 310458
55	Angle, Support (2)
56	Cover, Rear
60	4396923 Whirlpool Broil Pan Set Gray Porcelain
61	WPL 308173
62	WPL 308172
63	Switch, Lock
64	WPL 310435
64	WPL 310433
64	WPL 3149328
64	WPL 3147864
