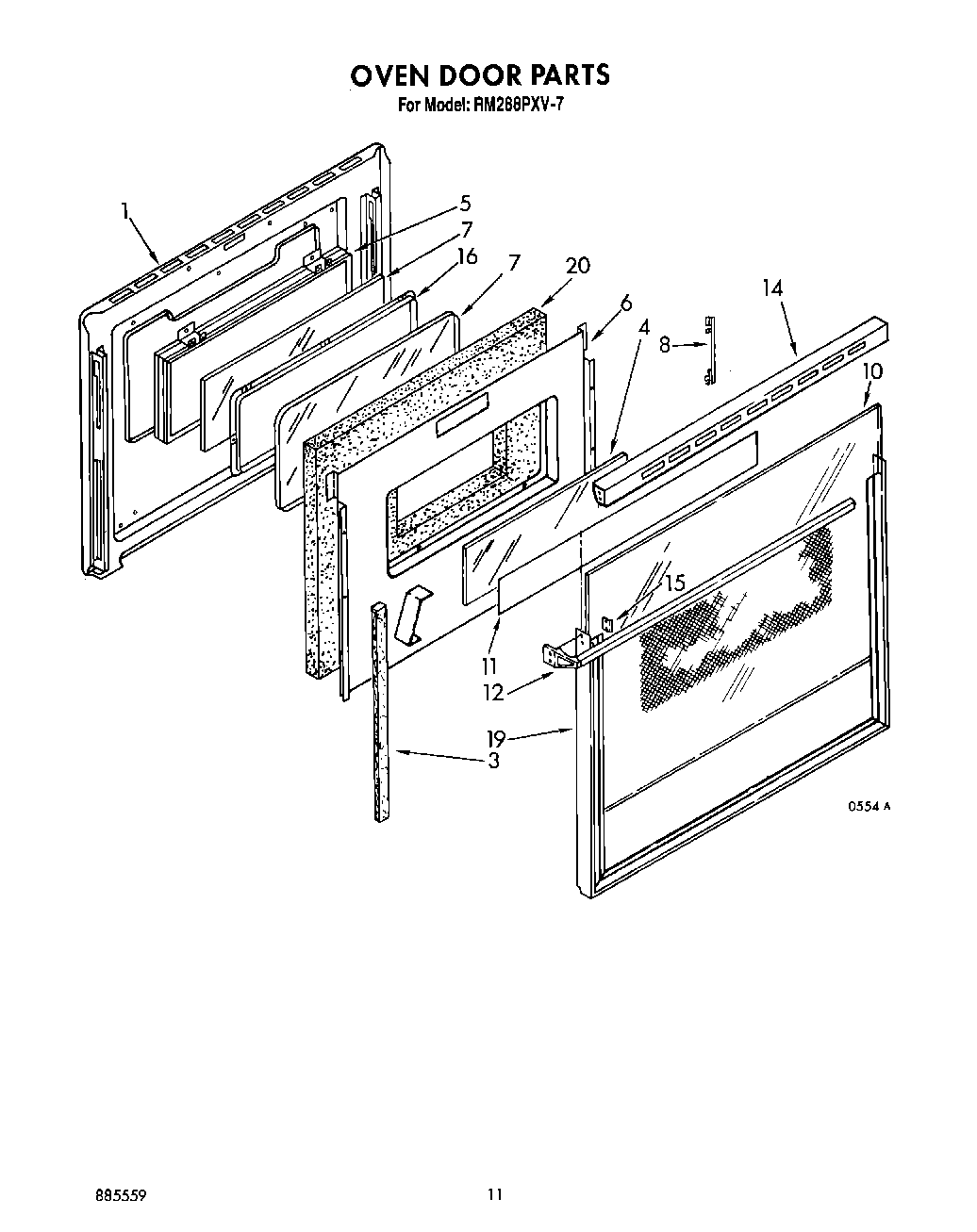

RM288PXV7 08 – OVEN DOOR

Products

PositionProduct
1Liner, Door
3Seal, Flange (2)
4Glass, Clear
5Seal, Door
6Retainer,
7WP3169203 Whirlpool Door Glass
8Retainer, Glass (2)
10Glass, Panel (Black Model)
11Foil, Door
12WP355515 Whirlpool Screw
12Handle, Oven Door
14Top, Door (Black Model)
14Screw, (2) 10-16 x 1/2
15Clip, Mtg (2)
16Frame, Inner
16Screw
19Frame, Door
20Insulation, Door
