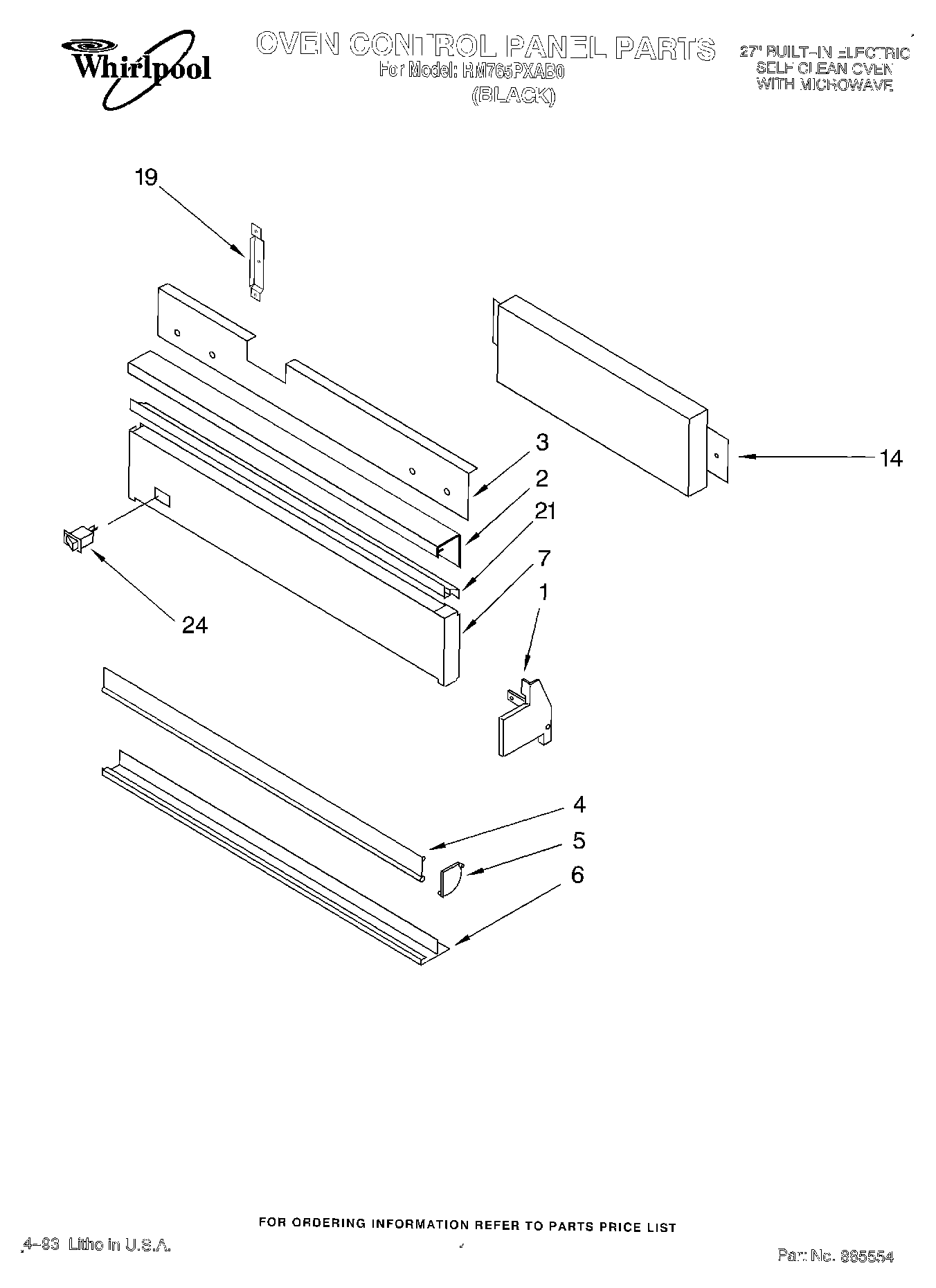

RM765PXAB0 01 – OVEN CONTROL, LITERATURE

Products

Position	Product
	Repair Parts List
	Installation Instructions
	Tech Sheet
	Use & Care Guide (Lower Oven)
	Use & Care Guide (Microwave)
1	End Cap (Right Hand)
1	End Cap (Left Hand)
2	Trim, Top (Black Model)
2	screw
3	Trim, Oven Vent
4	Door, Vent (Black Model)
5	End Trim, Vent (Left Side)
5	End Trim, Vent (Right Side)
6	WP965173 Whirlpool Dishwasher Screw
6	Trim, Bottom
6	Screw, 10-32 x 1/2
7	Glass, Control (Black Panel)
14	Control, Electronic (Black)
19	Rail, Mounting
21	Trim, Control (2)
21	Screw
24	Switch, Rocker
