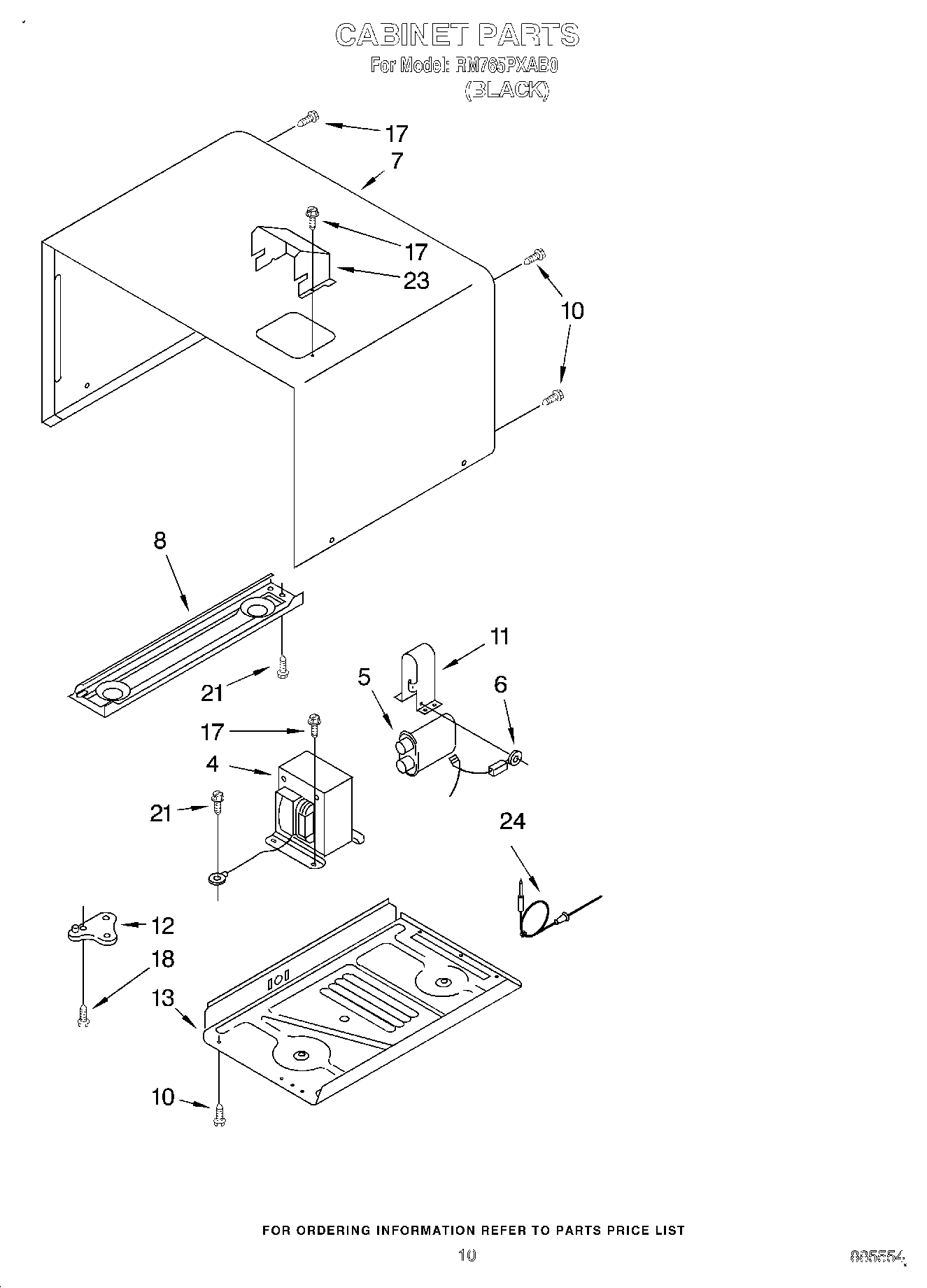

RM765PXAB0 07 – CABINET

Written by

Products

Position	Product
4	Transformer
5	Capacitor
6	Rectifier
7	Outer Cabinet (Stainless Model)
7	Outer Cabinet (Black Model)
8	Base Plate, Left Side
10	Screw
11	Screw
11	Bracket, Capacitor
12	Hinge, Lower
13	Base Plate, Right Side
17	Screw
18	Screw
21	Screw
23	Duct, Exhaust (Front)
24	Probe, Temperature
