RM765PXAB1 04 – SUPPORT MODULE AND LATCH – Aparts

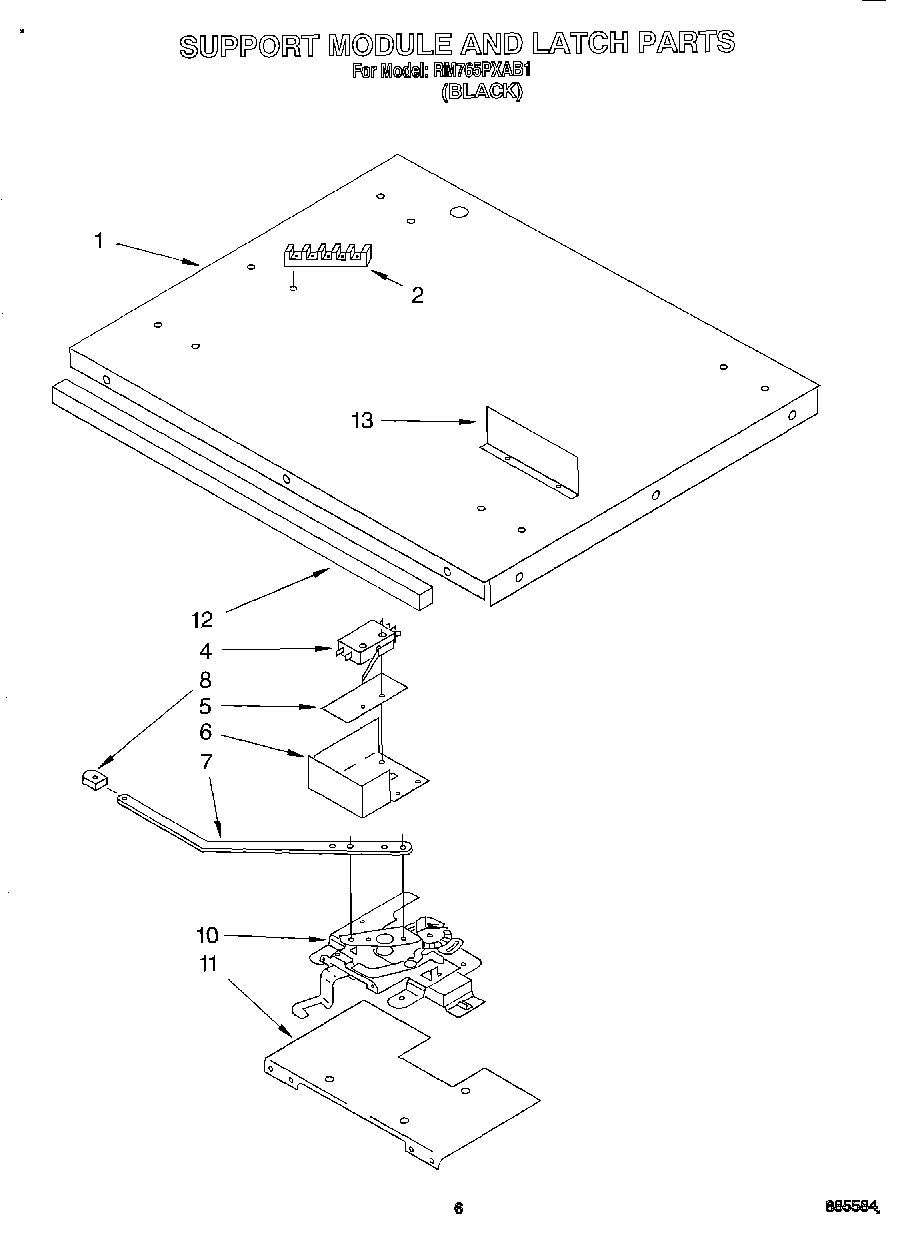

RM765PXAB1 04 – SUPPORT MODULE AND LATCH

Products

Position	Product
1	Support, Module
1	Screw
2	W10841059 Whirlpool Screw
2	WP8203546 Whirlpool Terminal Block
4	Safety Switch
4	Screw
5	Insulator, Switch
6	Screw,
6	Guard, Latch
7	Handle, Latch
7	Screw
8	Knob, Latch Handle
8	Screw
10	Latch, Mechanism
10	WP3177991 Whirlpool Screw
11	Plate, Mounting
12	Foam-Seal
13	Screw
13	Baffle
