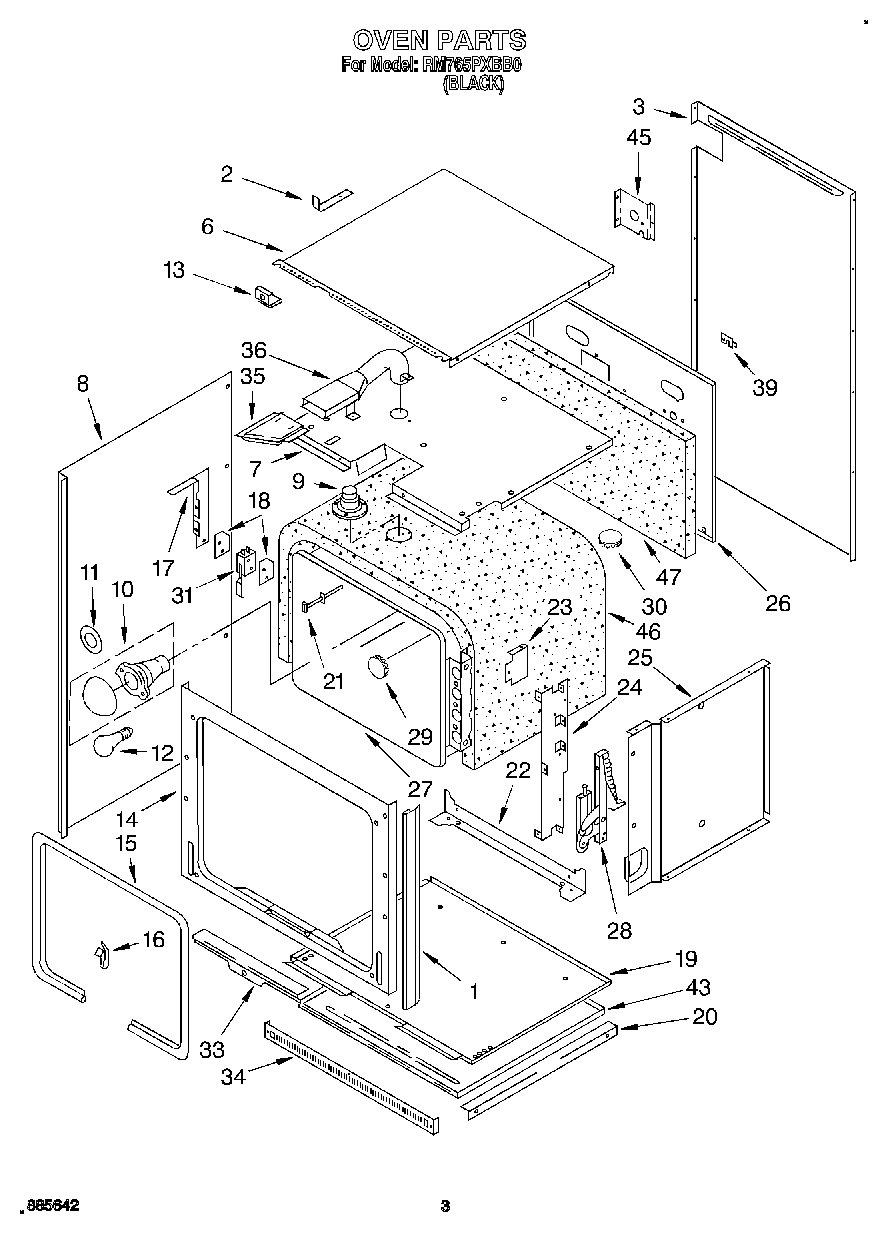

RM765PXBB0 02 – OVEN

Written by

Products

Position	Product
1	Trim, Door Side (2) (Black Model)
2	Brace, M/W Back
3	Cabinet, Back
6	Cabinet, Top
7	Module, Top
8	Side, Cabinet (Right Hand)
9	Tube, Vent
10	W11594027 Whirlpool Range Oven Light Socket
11	WP3184533 Whirlpool Range Light Lens Gasket
12	RANGE ONLY 40W 120V APPL BULB
13	Clip, Fastener
14	Frame, Front
15	Screw (4)
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
21	Sensor, Heat
22	Support, Oven
23	Shield, Radiation
24	Screw
24	Screw (6)
24	Bracket, Hinge
25	Side, Module (R.H. & L.H.)
26	Back, Module
27	Liner, Oven
28	Hinge, Door
29	Button, Plug
30	Button, Plug
31	Screw (2)
31	Nut (2)
31	Switch, Door
33	Retainer, Seal
33	SCREW
34	Vent, Lower Trim (Black Model)
34	Vent, Lower Trim (Screw (4))
34	Vent, Lower Trim (Screw (2))
35	Tube, Vent (Female)
36	Vent, Tube (Upper, Male)
39	Cover, Cap Tube
39	Screw
39	WP3177991 Whirlpool Screw
43	Bottom, Oven
45	Bracket, Conduit
46	Insulation, Oven
47	Screw
47	Insulation, Back
