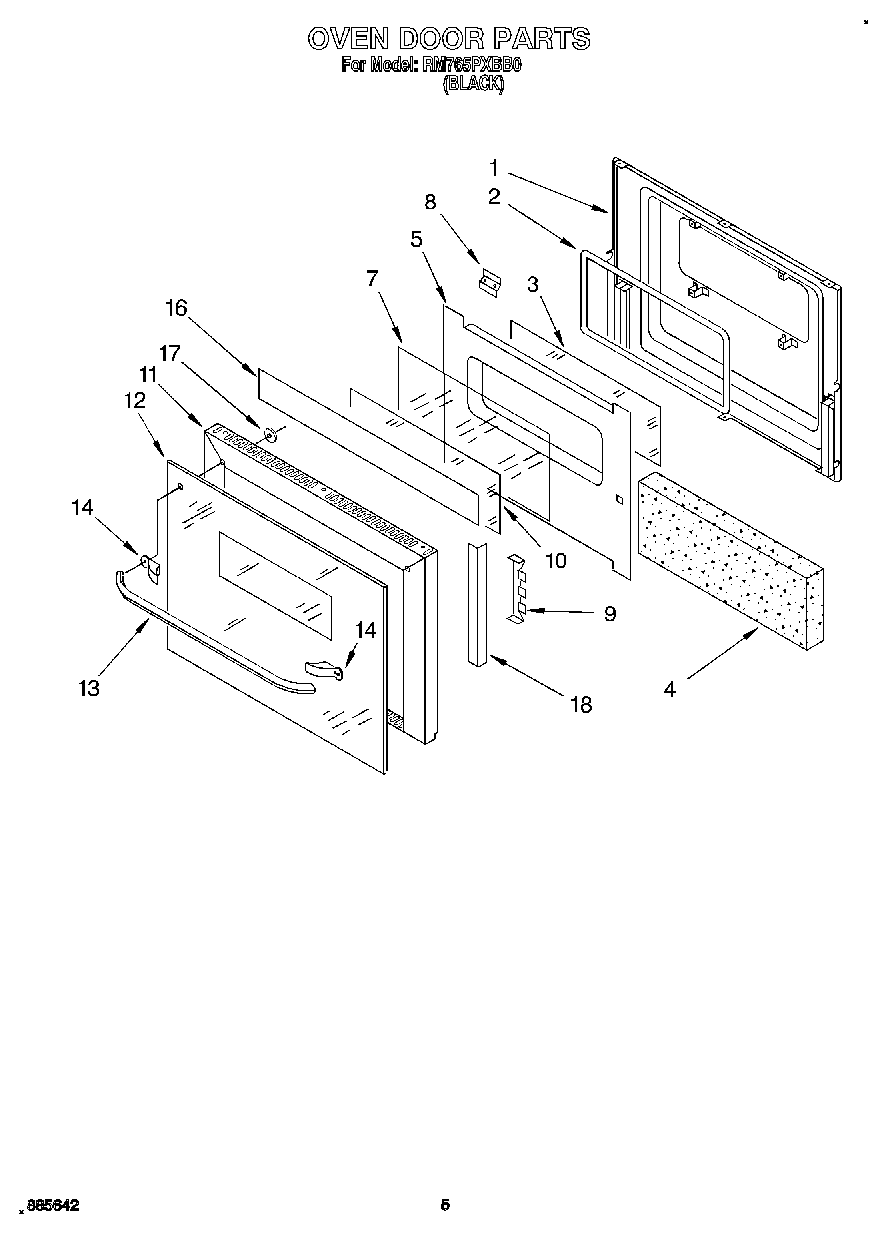

RM765PXBB0 03 – OVEN DOOR

Products

PositionProduct
1Liner, Door
1Screw, Black (2)
2Seal, Window
3Glass, Clear
4Insulation, Door
5Screw
5Retainer, Insulation
7Glass, Reflective
8Latch, Strike
9Screw
9Retainer, Glass
10Glass, Clear
11Frame, Door (Black Model)
12Glass, Door (Black Model)
13WP355515 Whirlpool Screw
13Handle, Door (Black Model)
14Spacer (Black Model)
16Foil, Adhesive
17Screw (2)
17Bushing, Door Handle
18Foil-Adhesive
