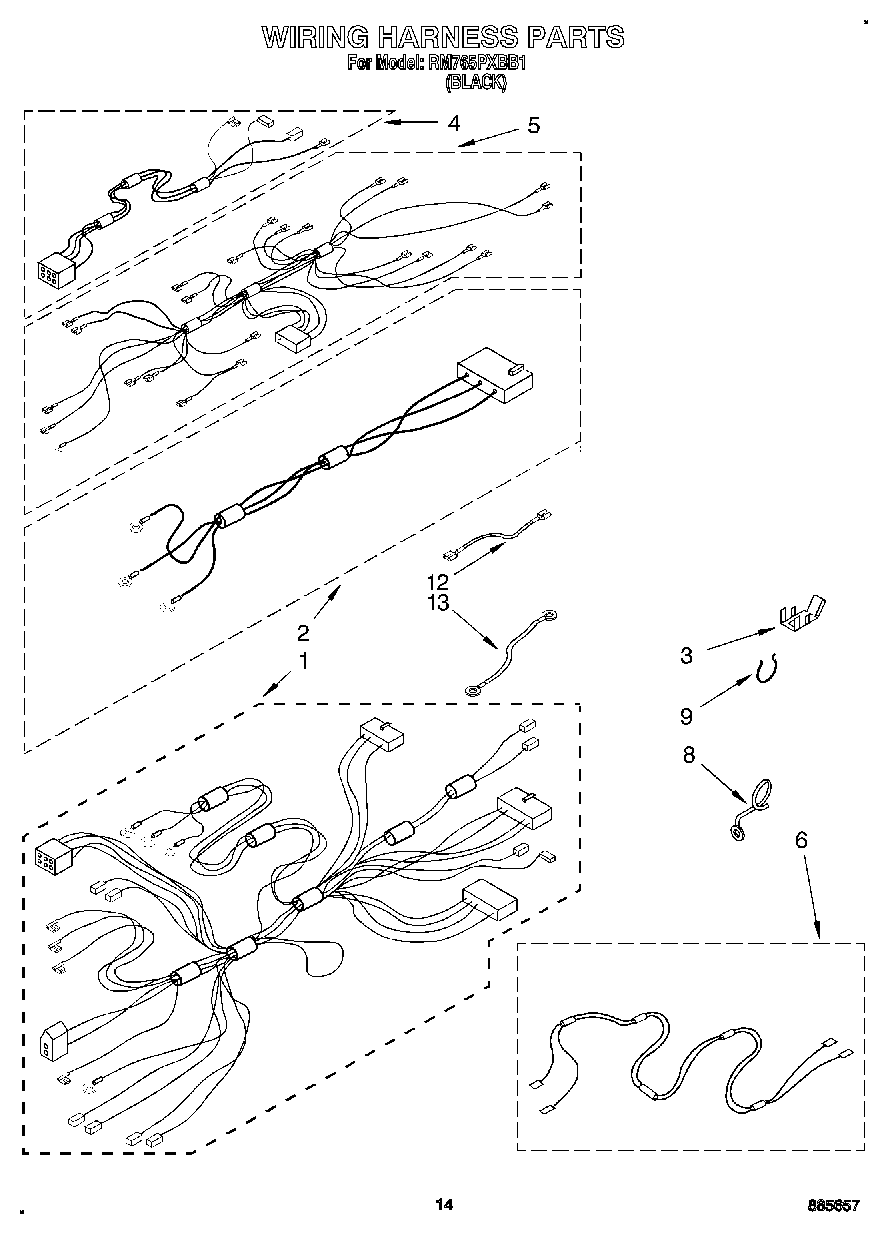

RM765PXBB1 11 – WIRING HARNESS

Written by

Products

Position	Product
1	Harness, Wire Main Power
2	Harness, Wire Main, Microwave
3	488946 Whirlpool Air Conditioner Clamp
3	Screw
4	Screw, 8-18 X 3/4 (4)
4	Wiring Harness (Latch Assembly)
5	Harness, Wire Microwave Power
6	Wiring Harness (Door Switch) Lower)
8	Screw (3)
8	Standoff, Wire
9	16515 Whirlpool Clip
12	H.V. Wire
12	Screw
13	Sensor Ground Wire
