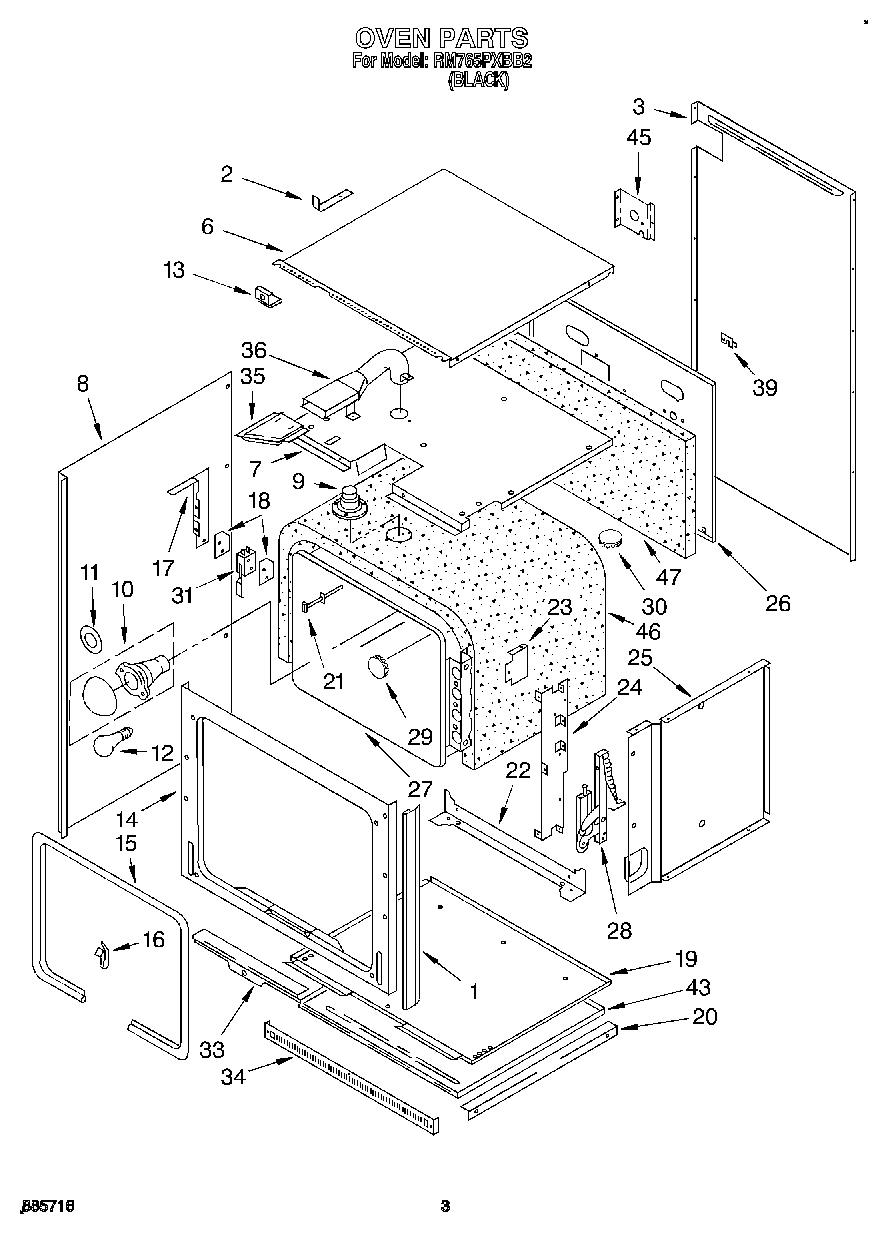

RM765PXBB2 02 – OVEN

RM765PXBB2 02 – OVEN

Written by

in

RM765PXBB2 02 – OVEN

Products

PositionProduct
1Trim, Door Side (2) (Black Model)
2Brace, M/W Back
3Cabinet, Back
6Cabinet, Top
7Module, Top
8Side, Cabinet (Right Hand)
9Tube, Vent
10W11594027 Whirlpool Range Oven Light Socket
11WP3184533 Whirlpool Range Light Lens Gasket
12RANGE ONLY 40W 120V APPL BULB
13Clip, Fastener
14Frame, Front
15Seal, Door
15Screw (4)
16Clip, Oven Seal
17Bracket, Switch
18Insulator, Switch
19Bottom, Modual
20Rail, Support (2)
21Sensor, Heat
22Support, Oven
23Shield, Radiation
24Bracket, Hinge
24Screw (6)
24Screw
25Side, Module (R.H. & L.H.)
26Back, Module
27Liner, Oven
28Hinge, Door
29Button, Plug
30Button, Plug
31Nut (2)
31Screw (2)
31Switch, Door
33Retainer, Seal
33SCREW
34Vent, Lower Trim (Screw (4))
34Vent, Lower Trim (Black Model)
34Vent, Lower Trim (Screw (2))
35Tube, Vent (Female)
36Vent, Tube (Upper, Male)
39Cover, Cap Tube
39Screw
39WP3177991 Whirlpool Screw
43Bottom, Oven
45Bracket, Conduit
46Insulation, Oven
47Screw
47Insulation, Back
