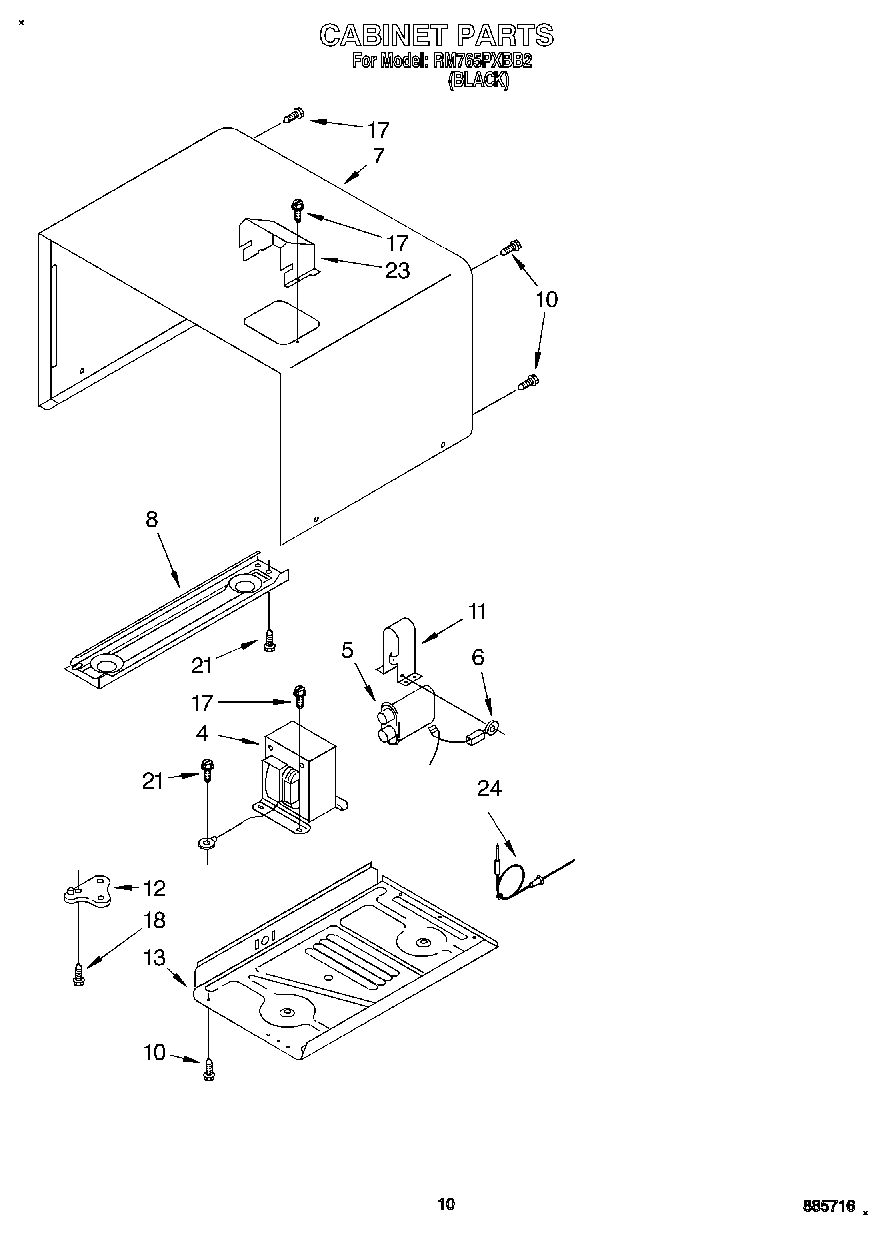

RM765PXBB2 07 – CABINET

Written by

Products

Position	Product
4	Transformer
5	Capacitor
6	Rectifier
7	Outer Cabinet (Stainless Model)
7	Outer Cabinet (Black Model)
8	Base Plate, Left Side
10	Screw
11	Screw
11	Bracket, Capacitor
12	Hinge, Lower
13	Base Plate, Right Side
17	Screw
18	Screw
21	Screw
23	Duct, Exhaust (Front)
