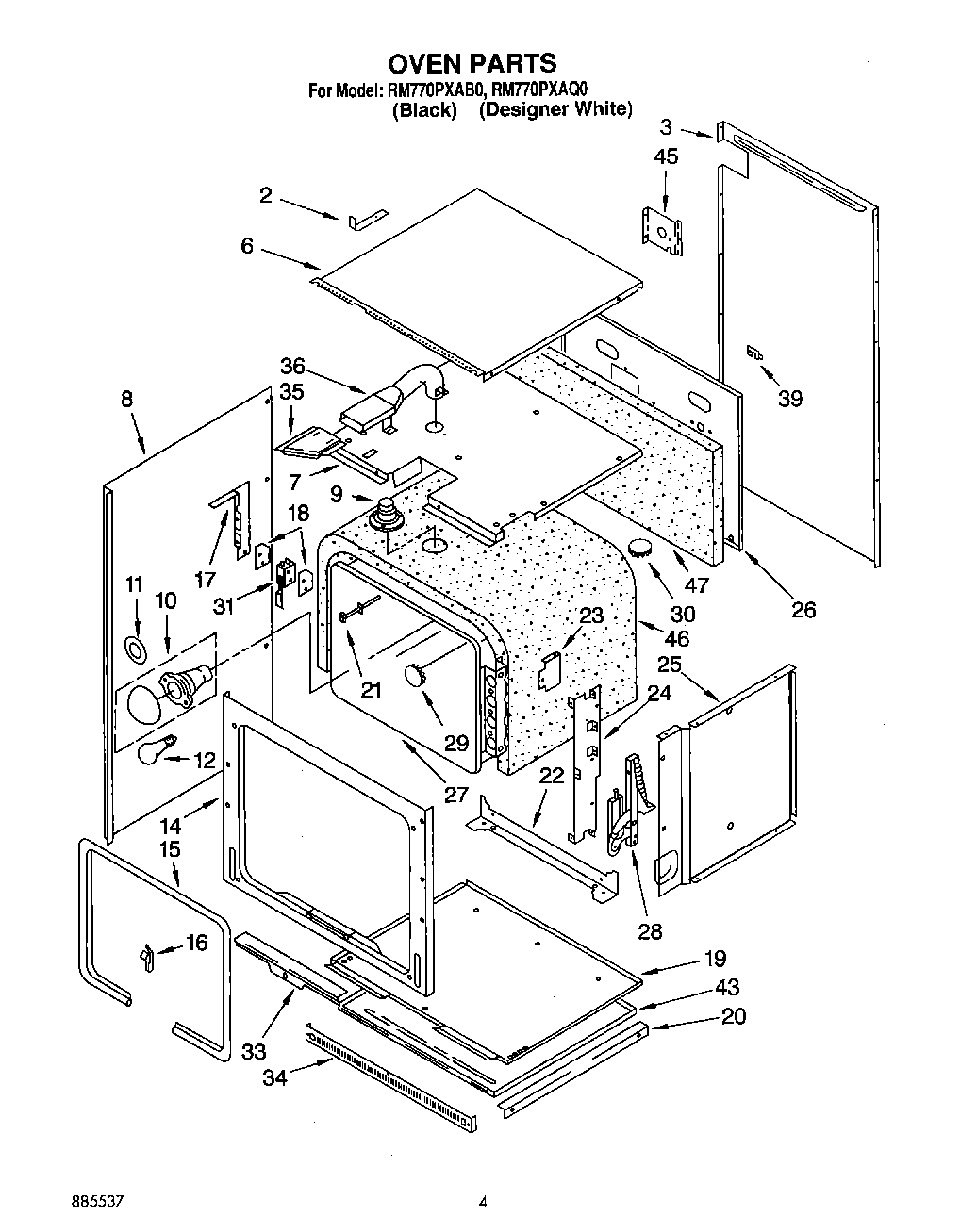

RM770PXAB0 02 – OVEN

Products

Position	Product
2	Brace, M/W Back
3	Cabinet, Back
6	Cabinet, Top
7	Module, Top
8	Side, Cabinet (Right Hand)
9	Screw (3)
9	Tube, Vent
10	W11594027 Whirlpool Range Oven Light Socket
11	WP3184533 Whirlpool Range Light Lens Gasket
12	RANGE ONLY 40W 120V APPL BULB
14	Frame, Front
15	Seal, Door
15	Screw (4)
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
21	Sensor, Heat
22	Support, Oven
23	Shield, Radiation
24	Screw (6)
24	Bracket, Hinge
25	Side, Module (R.H. & L.H.)
26	Screw (3)
26	Back, Module
27	Liner, Oven
28	Hinge, Door
28	Screw (4)
29	Button, Plug
30	Button, Plug
31	Switch, Door
31	Nut (2)
31	Screw (2)
33	Retainer, Seal
33	SCREW
34	Vent, Lower Trim (White Model)
34	Vent, Lower Trim (Screw (2))
34	Vent, Lower Trim (Black Model)
34	Vent, Lower Trim (Screw (4))
35	Tube, Vent Female
36	Vent, Tube (Upper, Male)
39	WP3177991 Whirlpool Screw
39	Screw
39	Cover, Cap Tube
43	Bottom, Oven
45	Bracket, Conduit
46	Insulation, Oven
47	Screw
47	Insulation, Back
