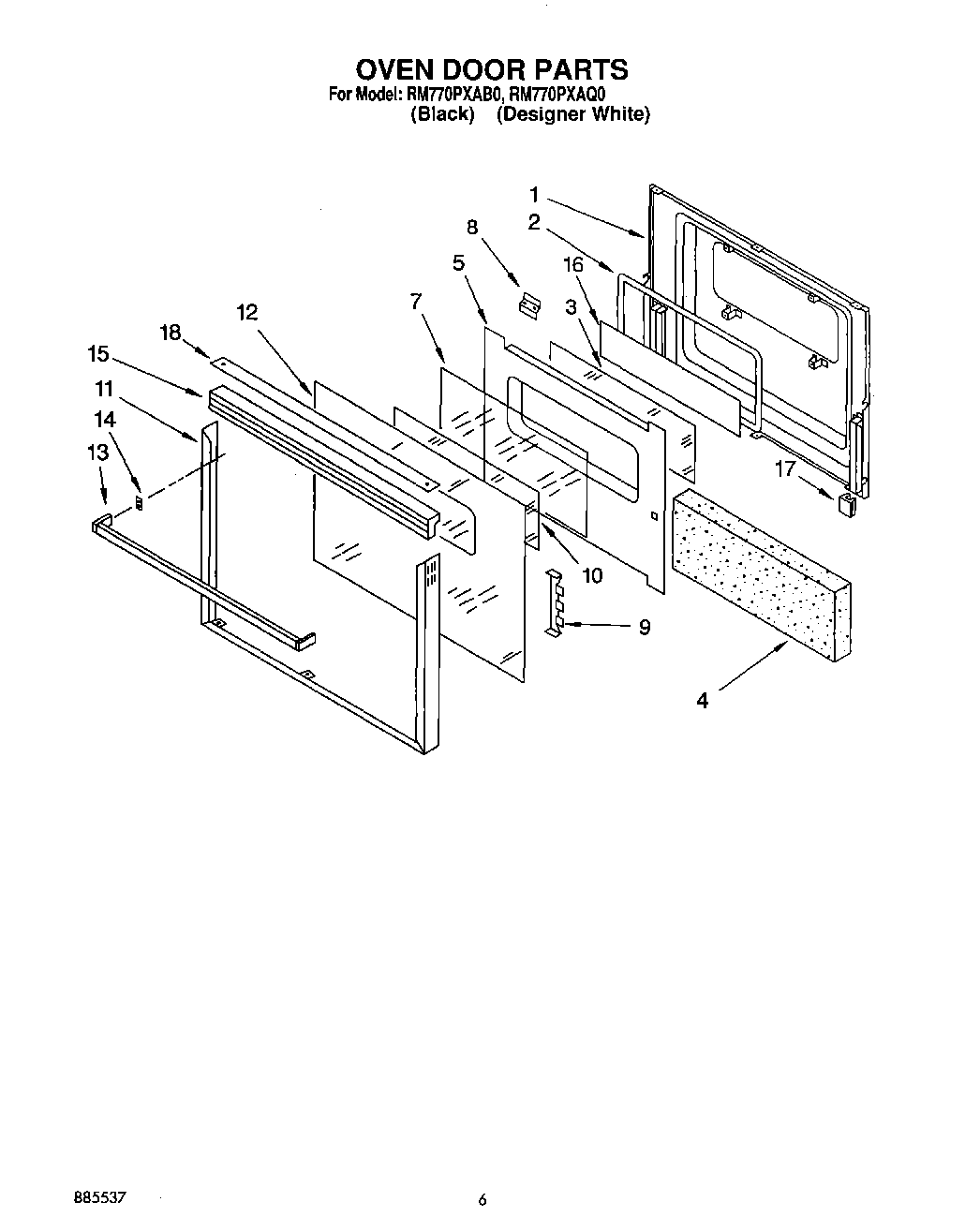

RM770PXAB0 03 – OVEN DOOR

Products

PositionProduct
1Liner, Door
1Screw, Black (2)
2Seal, Window
3Glass, Clear
4Insulation, Door
5Retainer, Insulation
5Screw
7Glass, Reflective
8Latch, Strike
9Retainer, Glass
9Screw
10Glass, Clear
11Frame, Door
12Glass, Door (White Model)
12Glass, Door
13Handle, Door (White Model)
13Handle, Door
14Clip, Mtg (2)
15Trim, Door (White Model)
15Trim, Door (Black Model)
15Screw
15Screw
16Foil, Adhesive
17Bumper, Door Glass
18Cap, Top (White Model Only)
