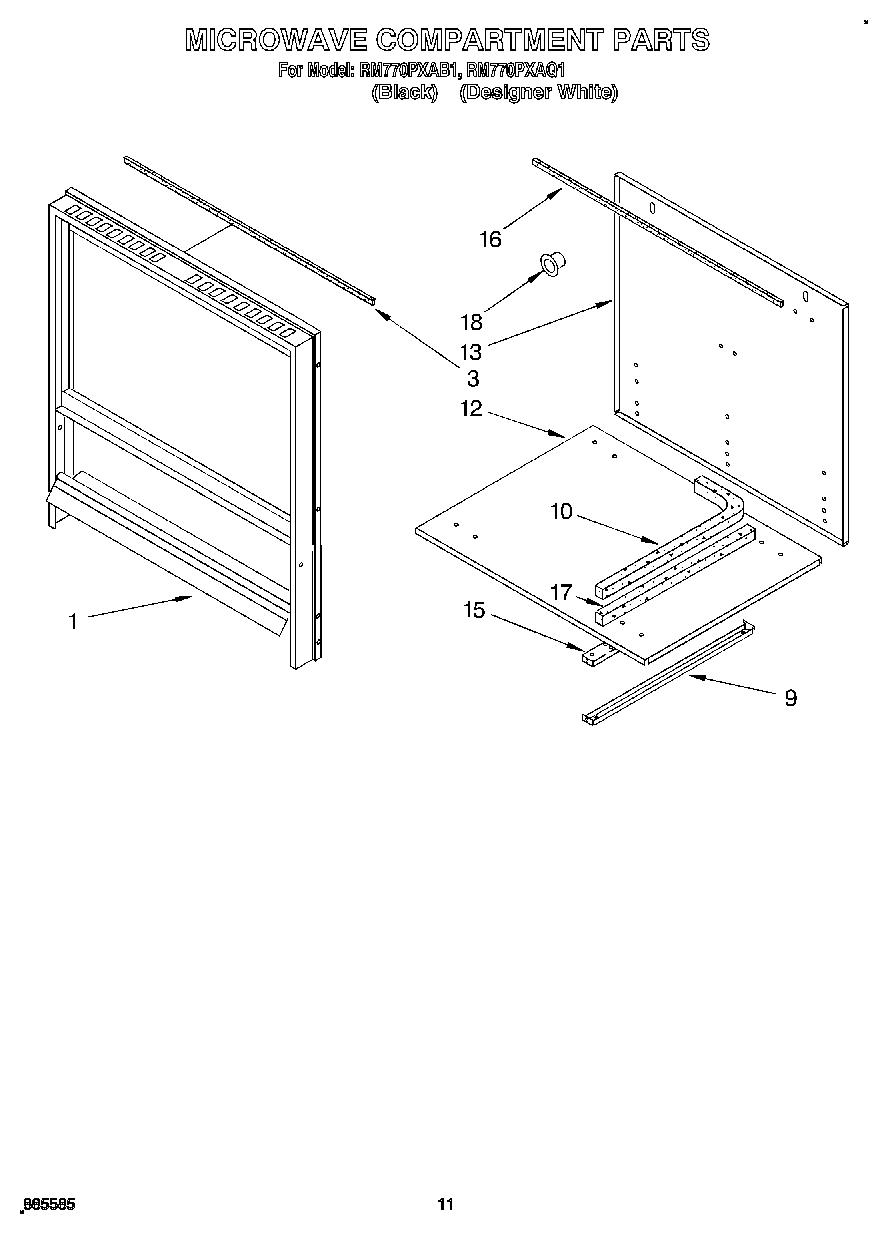

RM770PXAB1 08 – MICROWAVE COMPARTMENT

Products

Position	Product
1	Frame, Outer (White Model)
1	Frame, Outer (Black Model)
3	Block, Foam
9	Rail, Microwave
10	Seal, Foam
12	Support, Module
13	Back, Microwave Compartment
15	Rail, Chassis
16	Seal, Foam
17	Seal, Foam
17	Screw (2)
18	Bushing, Electric
