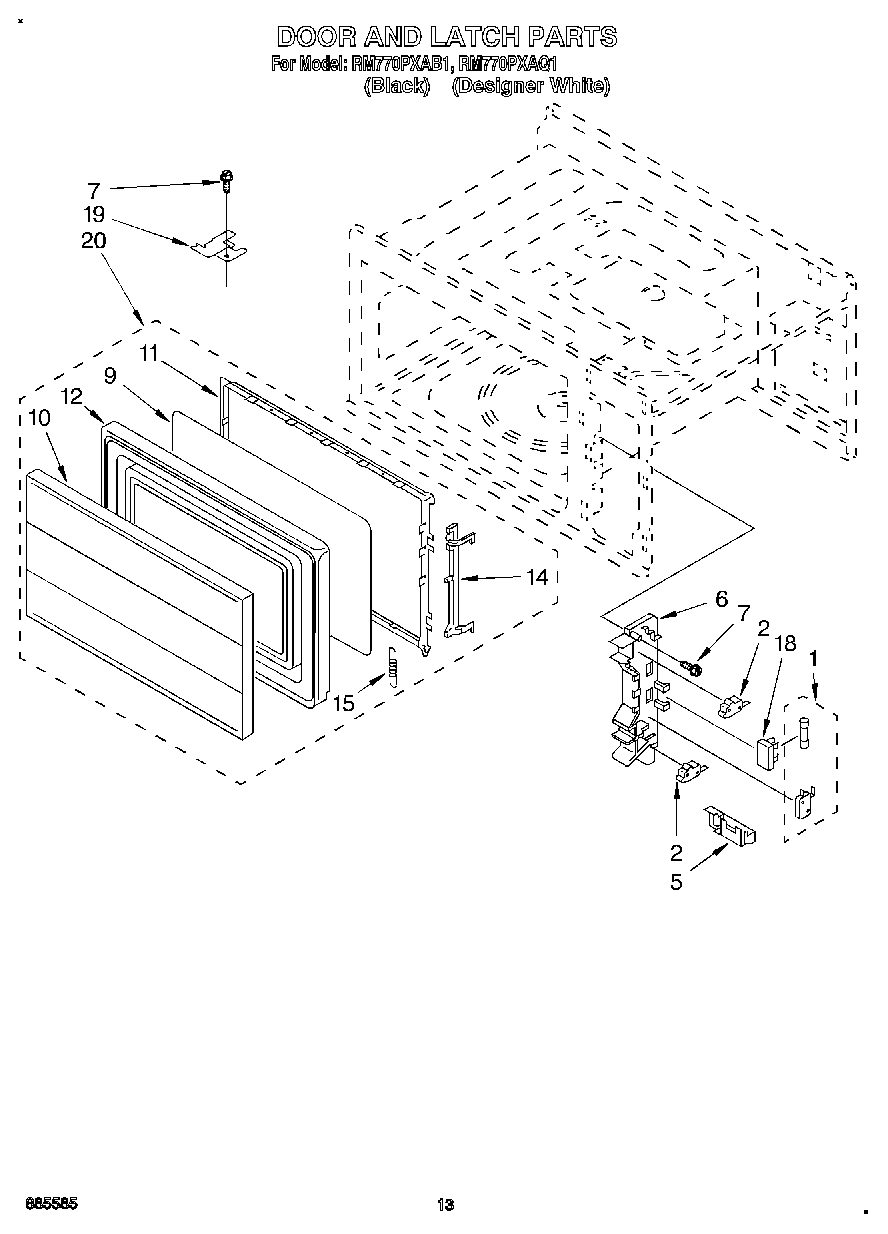

RM770PXAB1 10 – DOOR AND LATCH

Products

PositionProduct
1Switch and Fuse Assy.
24392027 Whirlpool Microwave Primary Switch
5Latch Lever
6Latch Hook
7SCREW
9Seal, Door (Not a Serviceable Part)
10Screen, Door (Black)
10Screen, Door (White)
11Choke Cover (White Model)
11Choke, Cover
12Frame, Door (Not Serviceable)
14Latch, Door (White Model)
14Latch, Door
15Spring, Latch
18Holder, Fuse
19Hinge, Upper
20Door, Complete (Black Model)
20Door, Complete (White Model)
