RM770PXAQ0 08 – MICROWAVE
Written by
in

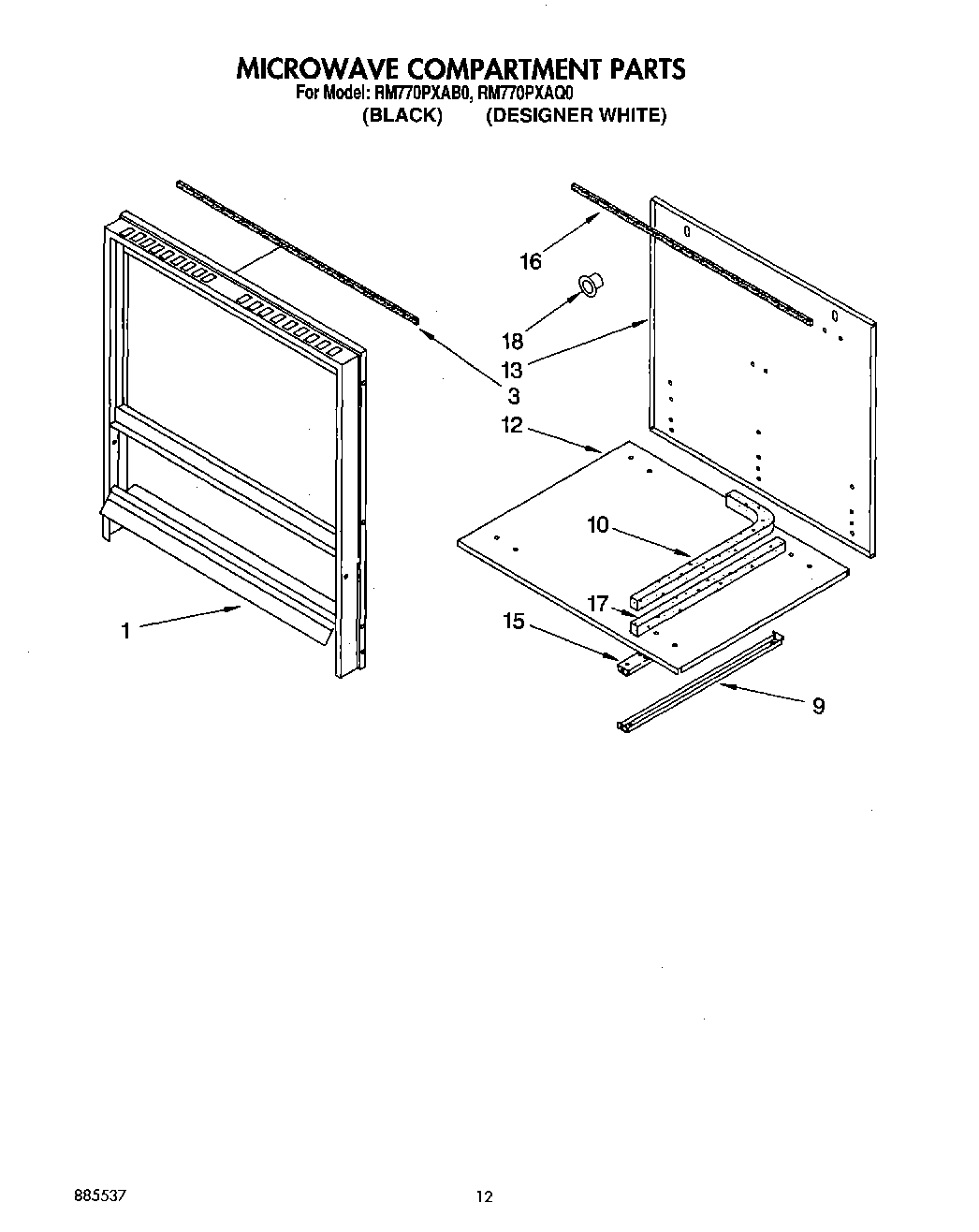

RM770PXAQ0 08 – MICROWAVE
Products
Position
Product
1
Frame, Outer (White Model)
1
Frame, Outer (Black Model)
3
Block, Foam
9
Rail, Microwave
10
Seal, Foam
12
Support, Module
13
Back, Microwave Compartment
15
Rail, Chassis
16
Seal, Foam
17
Seal, Foam
17
Screw (3)
18
Bushing, Electric
18
Screw
←
