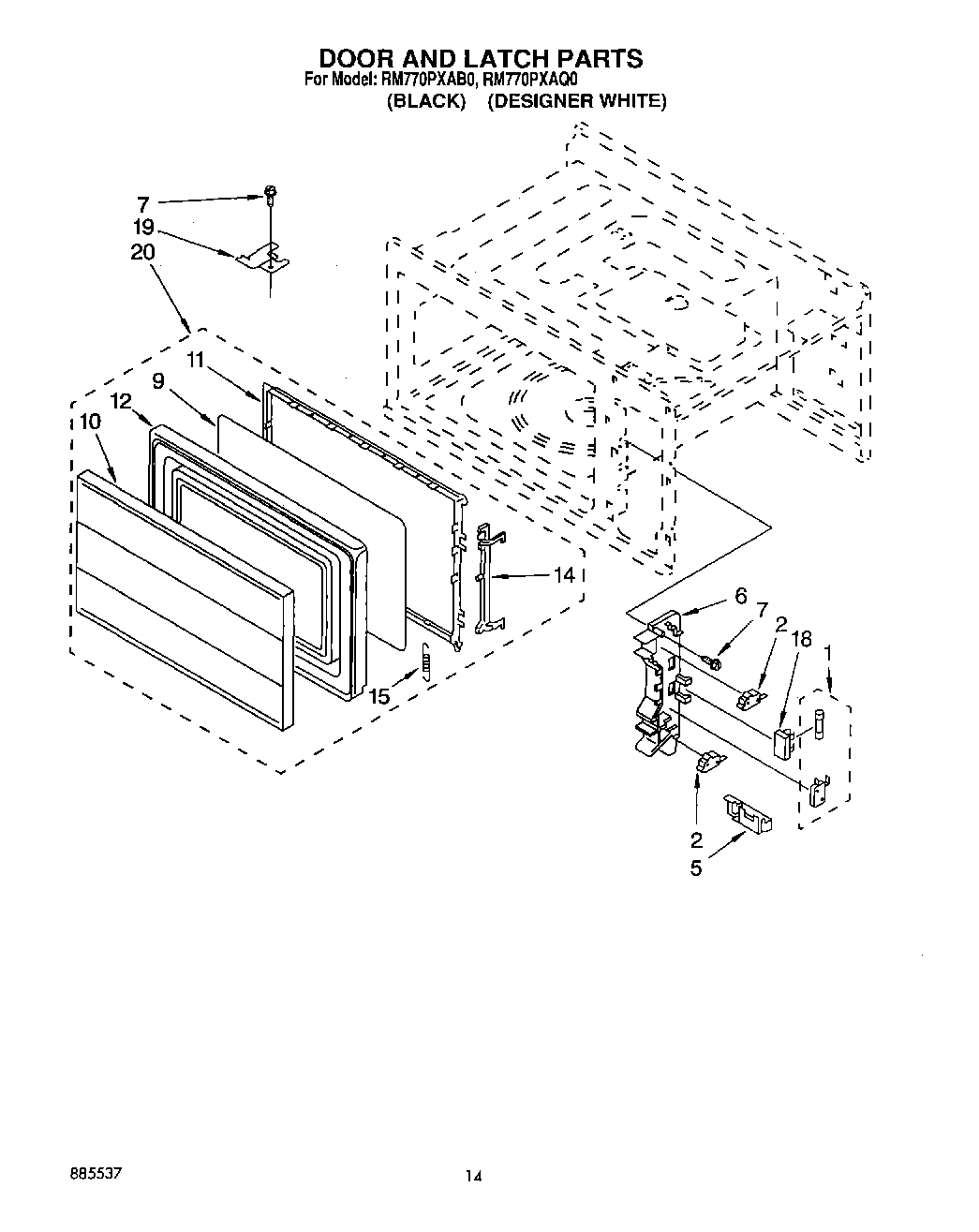

RM770PXAQ0 10 – DOOR AND LATCH

Products

Position	Product
1	Switch and Fuse Assy.
2	4392027 Whirlpool Microwave Primary Switch
5	Latch Lever
6	Latch Hook
7	SCREW
9	Seal, Door (Not a Serviceable Part)
10	Screen, Door (Black)
10	Screen, Door (White)
11	Choke, Cover
11	Choke Cover (White Model)
12	Frame, Door (Not Serviceable)
14	Latch, Door (White Model)
14	Latch, Door
15	Spring, Latch
18	Holder, Fuse
19	Hinge, Upper
20	Door, Complete (Black Model)
20	Door, Complete (White Model)
