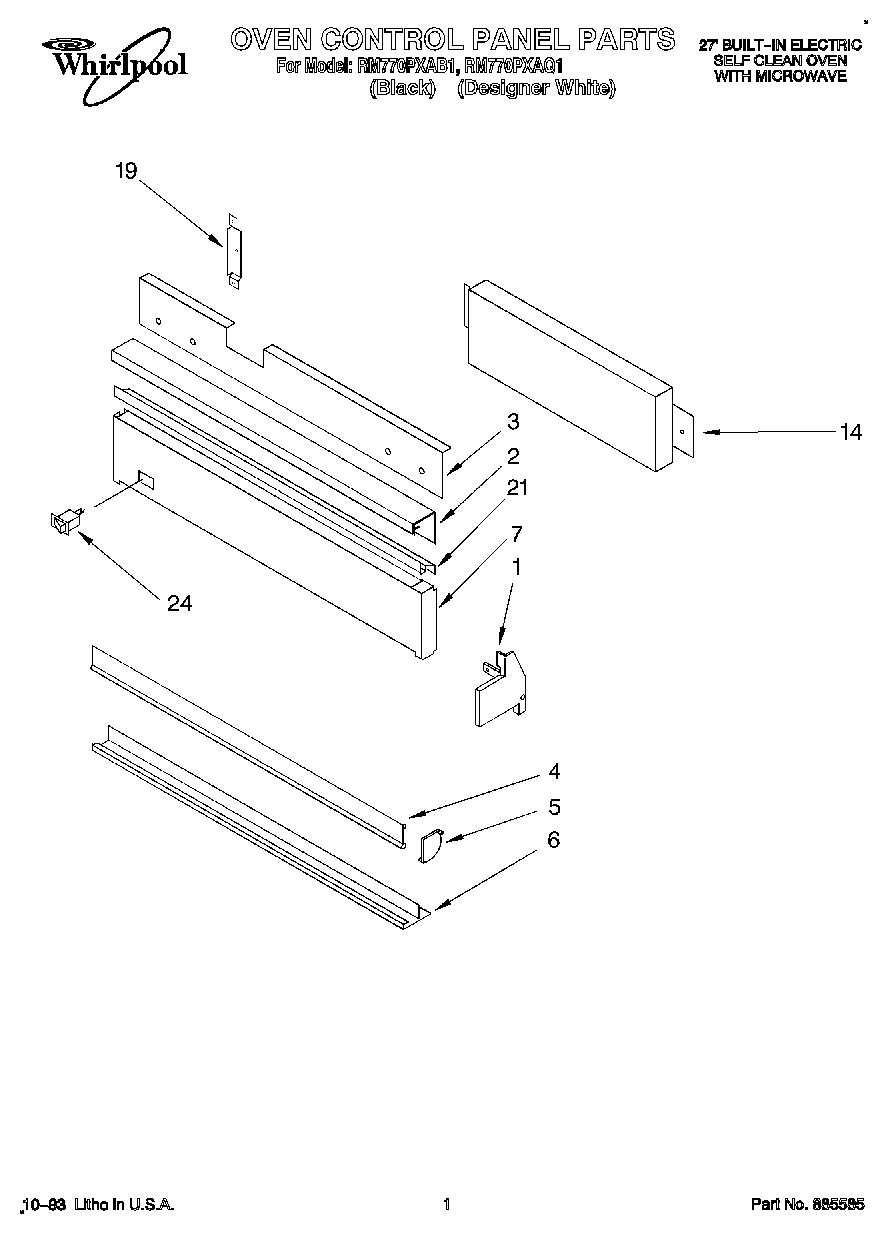

RM770PXAQ1 01 – OVEN CONTROL PANEL, LITERATURE

Products

PositionProduct
Use & Care Guide (Microwave)
Tech Sheet
Installation Instructions
Use & Care Guide (Lower Oven)
1End Cap (Right Hand)
1End Cap (Left Hand)
2Trim, Top (Black Model)
2Trim, Top (White Model)
2screw
3Trim, Oven Vent
4Door, Vent (White Model)
4Door, Vent (Black Model)
5End Trim, Vent (Right Side)
5Trim, Vent Door (Brite Aluminum, R.H.)
5End Trim, Vent (Left Side)
5Trim, Vent Door (Brite Aluminum, L.H.)
6WP965173 Whirlpool Dishwasher Screw
6Screw, 10-32 x 1/2
6Trim, Bottom
7Glass, Control (Black Panel)
7Glass, Control (White Panel)
14Control, Electronic (Black)
14Control, Electronic (White)
19Rail, Mounting
21Screw
21Trim, Control (2)
24Switch, Rocker
24Switch, Rocker (White)
