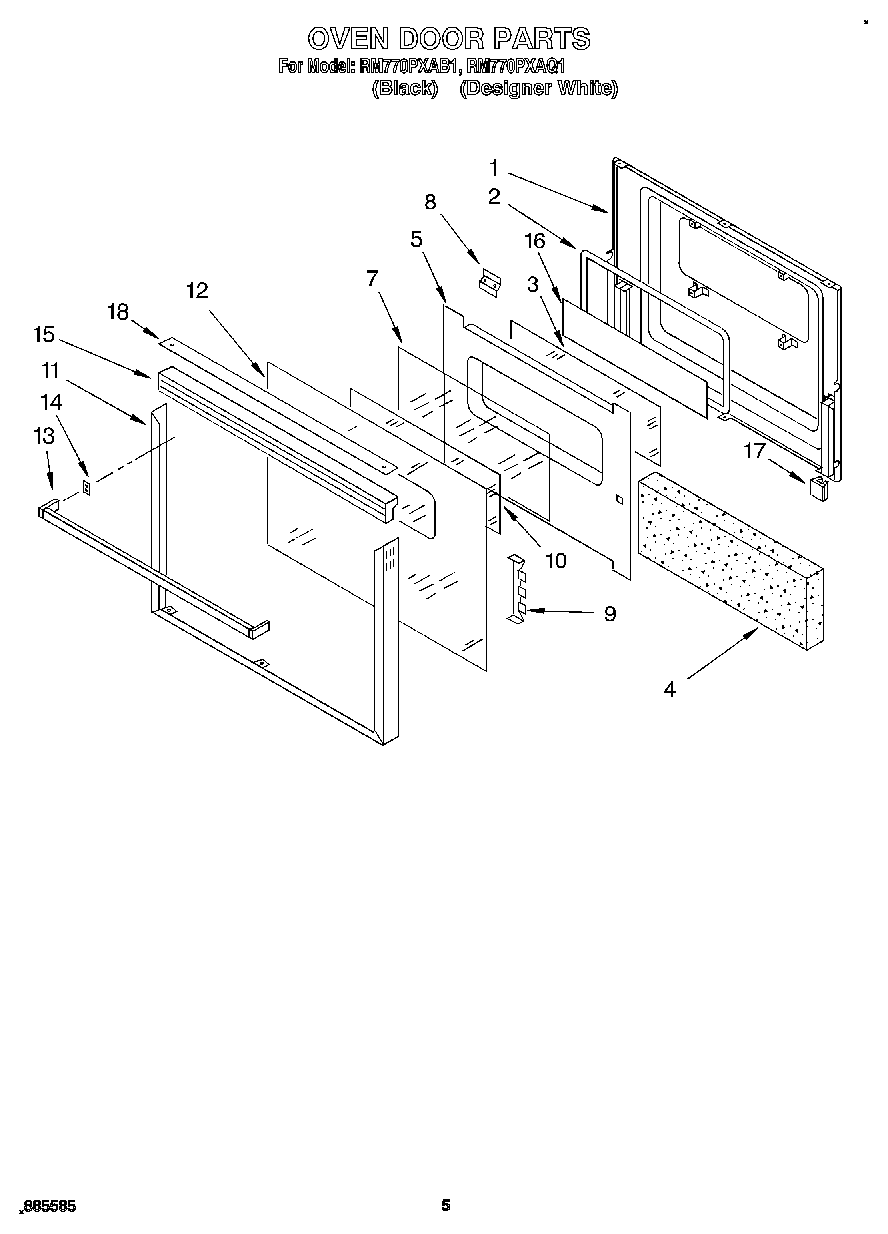

RM770PXAQ1 03 – OVEN DOOR

Products

Position	Product
1	Liner, Door
1	Screw, Black (2)
2	Seal, Window
3	Glass, Clear
4	Insulation, Door
5	Screw
5	Retainer, Insulation
7	Glass, Reflective
8	Latch, Strike
9	Retainer, Glass
9	Screw
10	Screw
10	Glass, Clear
11	Frame, Door
12	Glass, Door (White Model)
12	Glass, Door
13	Handle, Door (White Model)
13	Handle, Door
14	Clip, Mtg (2)
15	Trim, Door (White Model)
15	Trim, Door (Black Model)
15	WP355515 Whirlpool Screw
16	Foil, Adhesive
17	Bumper, Door Glass
18	Cap, Top (White Model Only)
