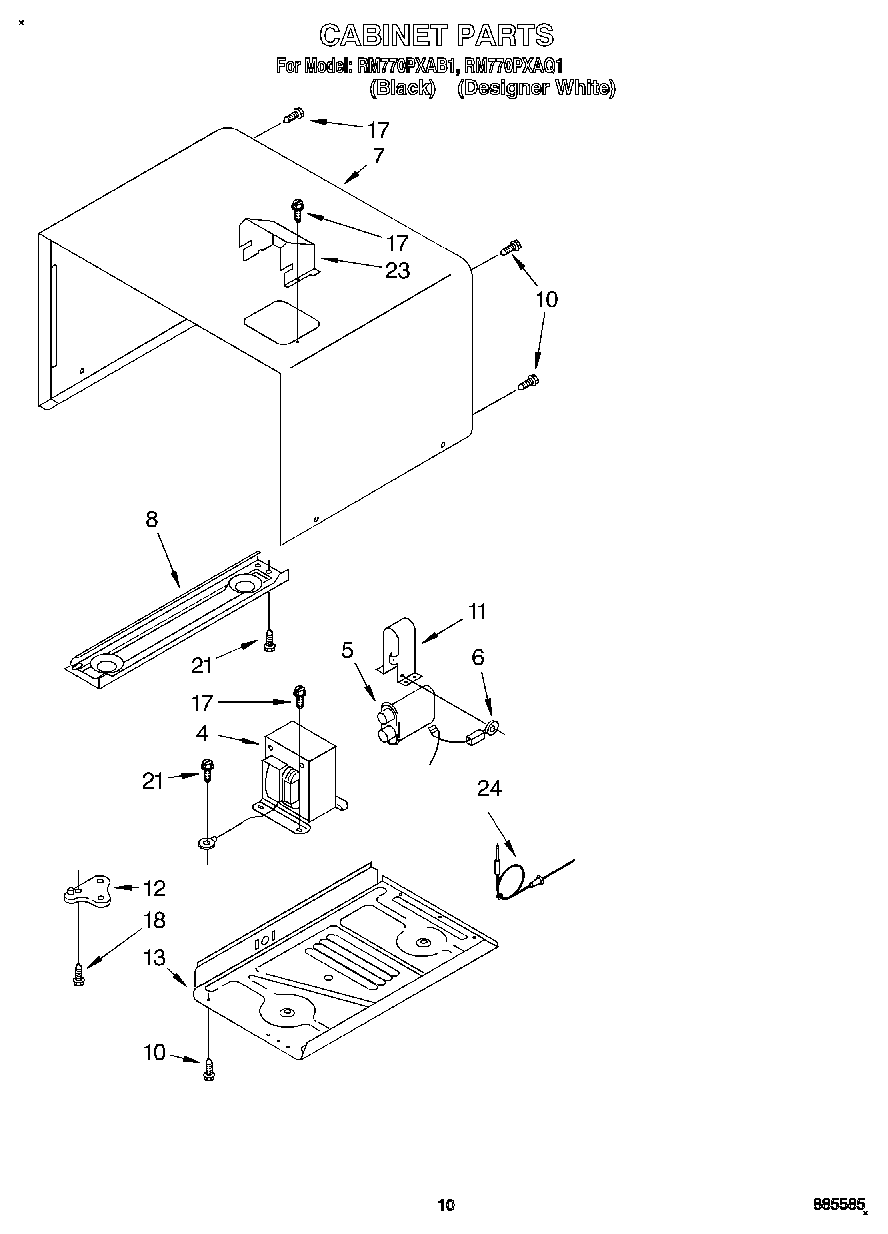

RM770PXAQ1 07 – CABINET

Products

PositionProduct
4Transformer
5Capacitor
6Rectifier
7Outer Cabinet (Stainless Model)
7Outer Cabinet (Black Model)
7Outer Cabinet (White Model)
8Base Plate, Left Side
10Screw
11Screw
11Bracket, Capacitor
12Hinge, Lower
13Base Plate, Right Side
17Screw
18Screw
21Screw
23Duct, Exhaust (Front)
24Probe, Temperature
