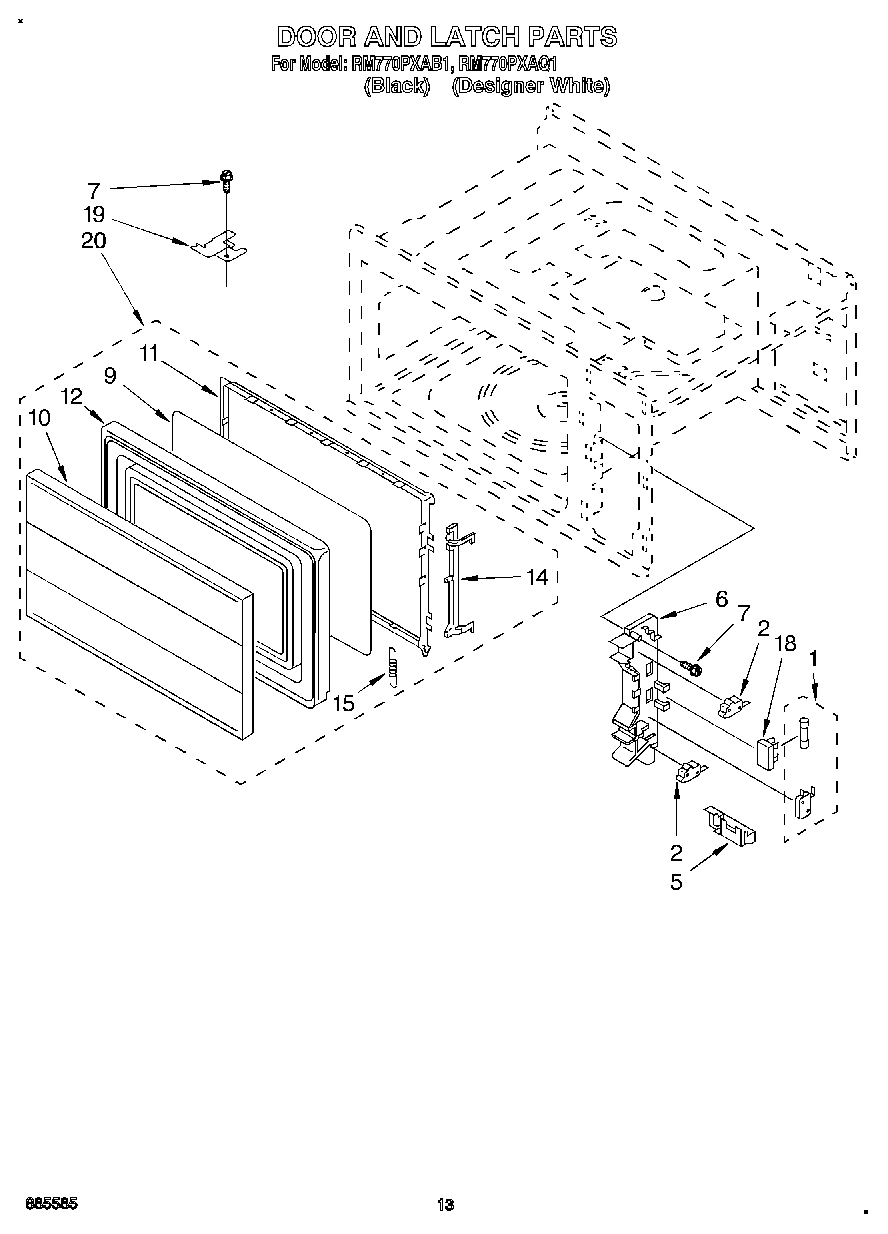

RM770PXAQ1 10 – DOOR AND LATCH
Written by
in
RM770PXAQ1 10 – DOOR AND LATCH
Products
Position
Product
1
Switch and Fuse Assy.
2
4392027 Whirlpool Microwave Primary Switch
5
Latch Lever
6
Latch Hook
7
SCREW
9
Seal, Door (Not a Serviceable Part)
10
Screen, Door (Black)
10
Screen, Door (White)
11
Choke, Cover
11
Choke Cover (White Model)
12
Frame, Door (Not Serviceable)
14
Latch, Door (White Model)
14
Latch, Door
15
Spring, Latch
18
Holder, Fuse
19
Hinge, Upper
20
Door, Complete (Black Model)
20
Door, Complete (White Model)
←
