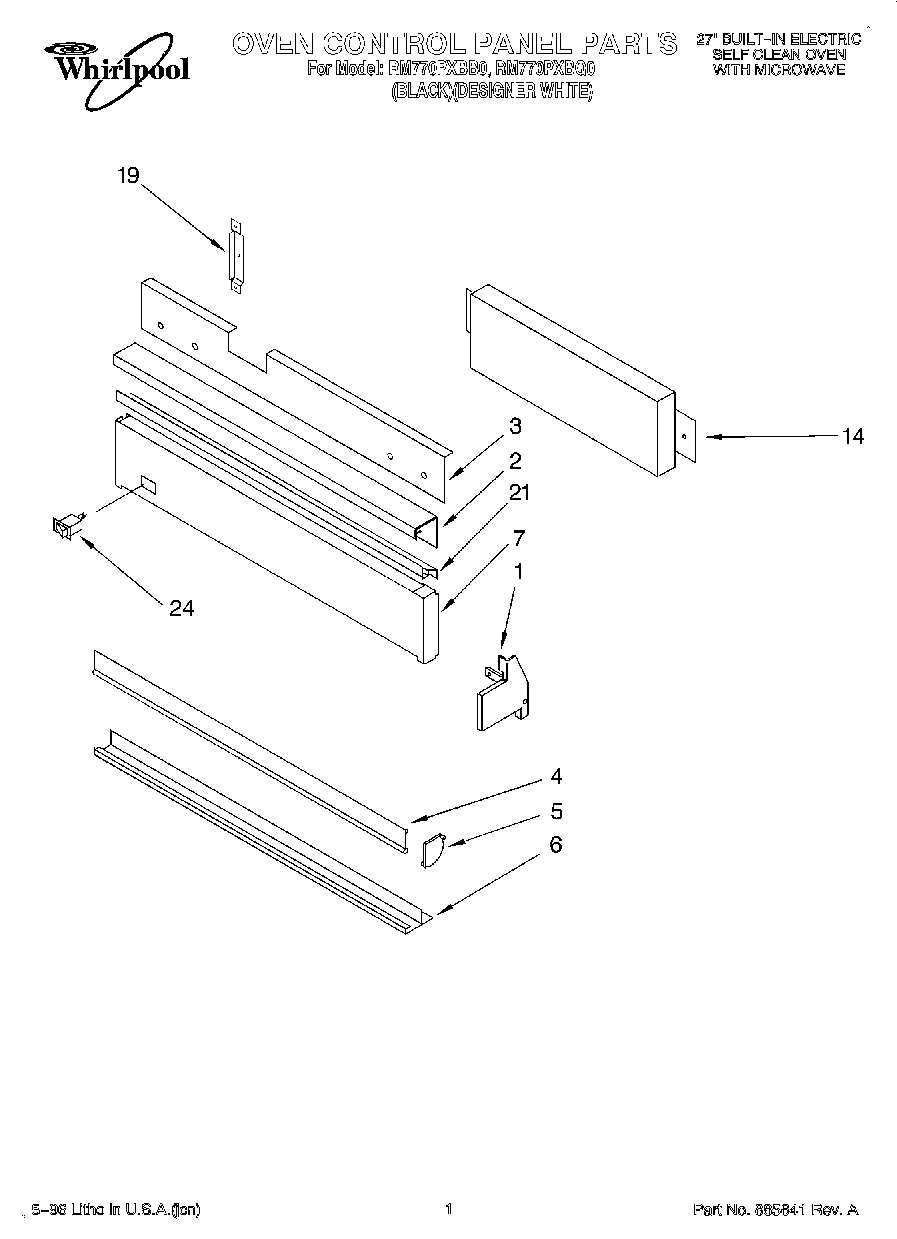

RM770PXBB0 01 – OVEN CONTROL PANEL, LITERATUREadmin2025-04-26T12:07:29+00:00RM770PXBB0 01 – OVEN CONTROL PANEL, LITERATURE
Products
| Position | Product |
|---|
| Use & Care Guide (Lower Oven) |
| Installation Instructions |
| Tech Sheet |
| Use & Care Guide (Microwave) |
| 1 | End Cap L.H. (White Model) |
| 1 | End Cap (Left Hand) |
| 1 | (End Cap R.H.) (White Model) |
| 1 | End Cap (Right Hand) |
| 2 | Trim, Top (Black Model) |
| 2 | Trim, Top (White Model) |
| 2 | screw |
| 3 | Trim, Oven Vent |
| 4 | Door, Vent (Black Model) |
| 4 | Door, Vent (White Model) |
| 5 | Trim, Vent Door (Brite Aluminum, R.H.) |
| 5 | Trim, Vent Door (Brite Aluminum, L.H.) |
| 5 | End Trim, Vent (Right Side) |
| 5 | End Trim, Vent (Left Side) |
| 6 | Trim, Bottom |
| 6 | Screw, 10-32 x 1/2 |
| 6 | WP965173 Whirlpool Dishwasher Screw |
| 7 | Glass, Control (White Panel) |
| 7 | Glass, Control (Black Panel) |
| 14 | Control, Electronic (Black) |
| 14 | Control, Electronic (White) |
| 19 | Rail, Mounting |
| 21 | Screw |
| 21 | Trim, Control (2) |
| 21 | Trim, Control (2) (White Model) |
| 24 | Switch, Rocker |
| 24 | Handle, Door (Screw (4)) |
| 24 | Switch, Rocker (White) |
