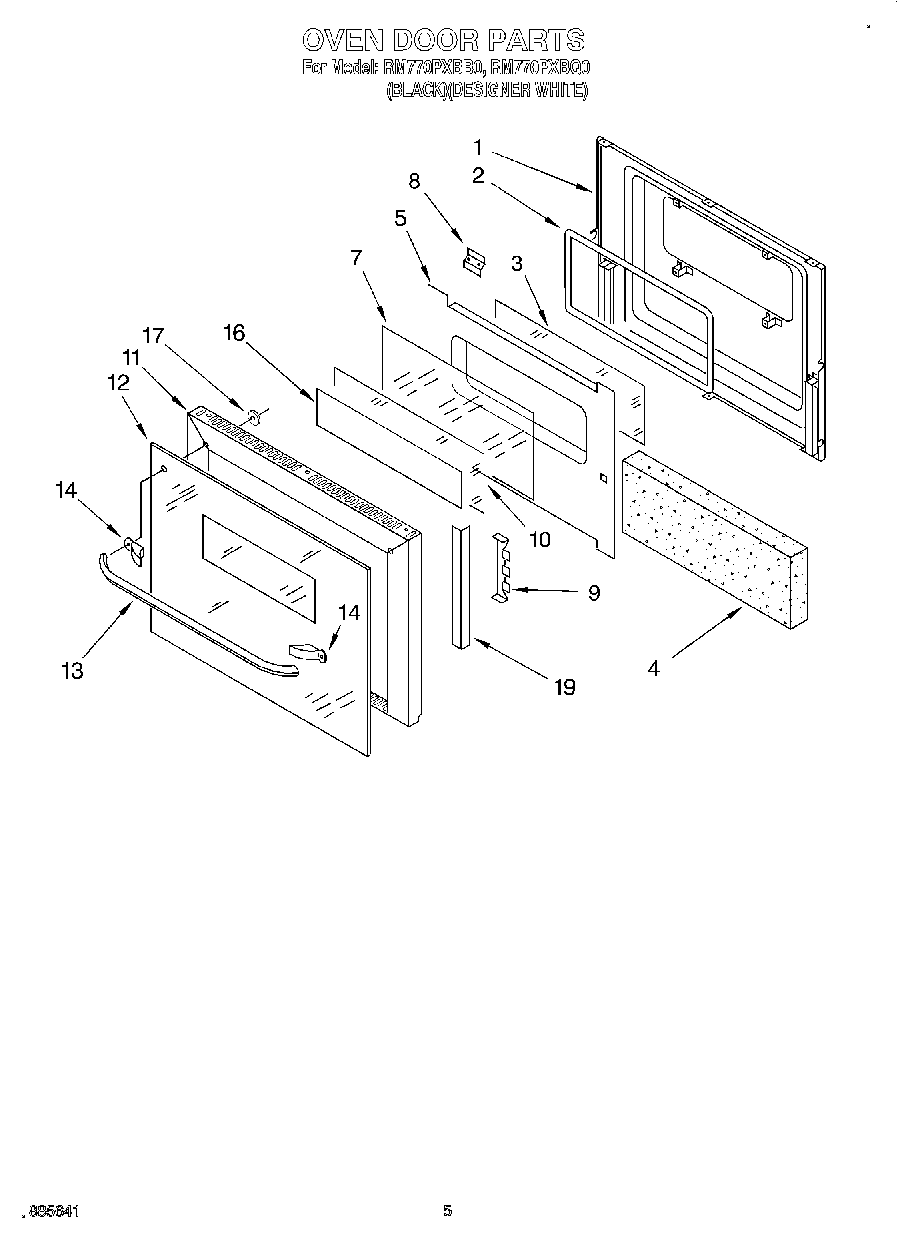

RM770PXBB0 03 – OVEN DOOR

Products

PositionProduct
1Liner, Door
1Screw, Black (2)
2Seal, Window
3Glass, Clear
4Insulation, Door
5Retainer, Insulation
5Screw
7Glass, Reflective
8Latch, Strike
9Retainer, Glass
9Screw
10Glass, Clear
10Screw
11Frame, Door (Black Model)
11Frame, Door (White Model)
12Glass, Door (Black Model)
12Glass, Door (White Model)
13Handle, Door (White Model)
13Handle, Door (Black Model)
14Spacer (White Model)
14Spacer (Black Model)
16Foil, Adhesive
17Bushing, Door Handle
19Foil-Adhesive
