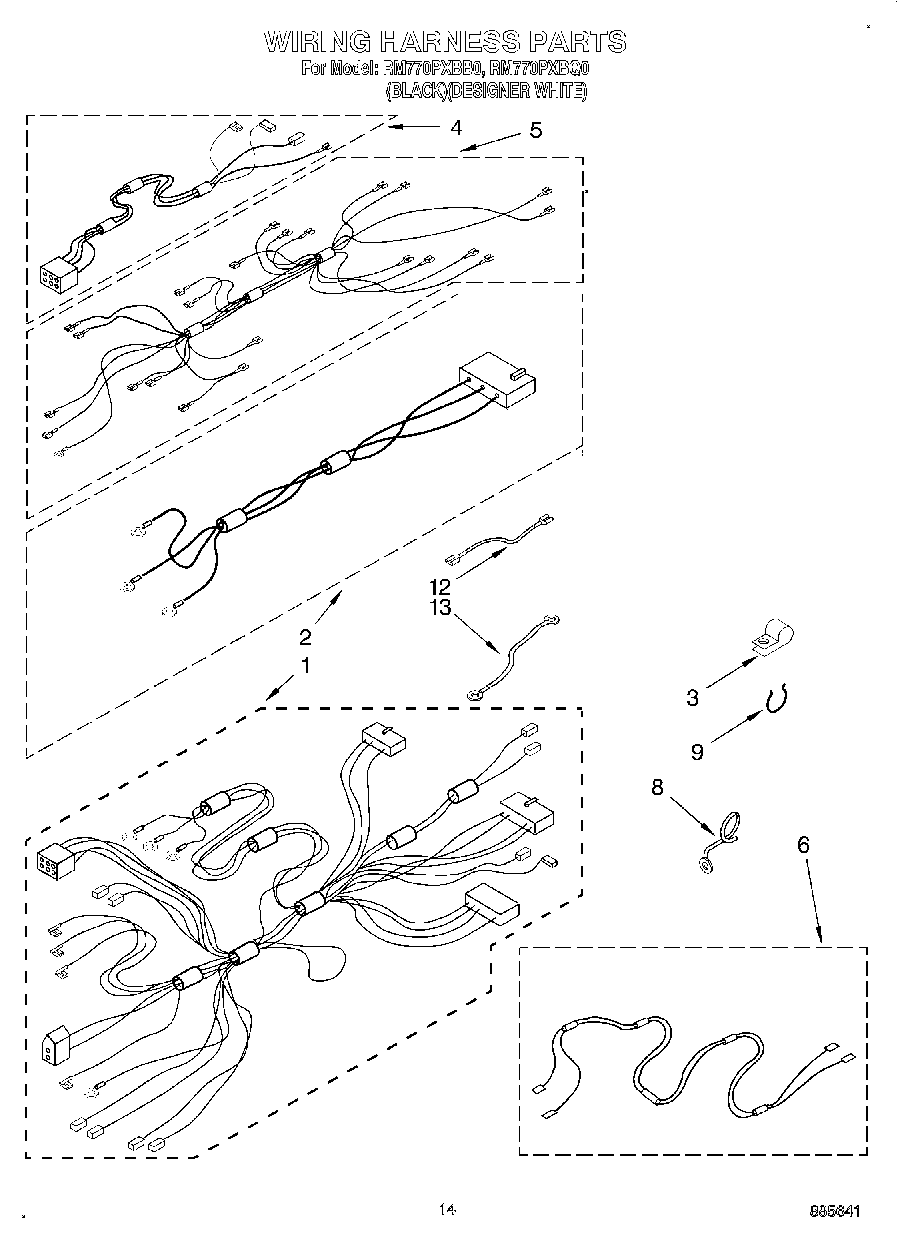

RM770PXBB0 11 – WIRING HARNESS

RM770PXBB0 11 – WIRING HARNESS

Written by

in

RM770PXBB0 11 – WIRING HARNESS

Products

PositionProduct
1Harness, Wire Main Power
2Harness, Wire Main, Microwave
3488946 Whirlpool Air Conditioner Clamp
3Screw
4Wiring Harness (Latch Assembly)
5Harness, Wire Microwave Power
6Wiring Harness (Door Switch) Lower)
8Screw (3)
8Standoff, Wire
916515 Whirlpool Clip
12H.V. Wire
12Screw
13Sensor Ground Wire
