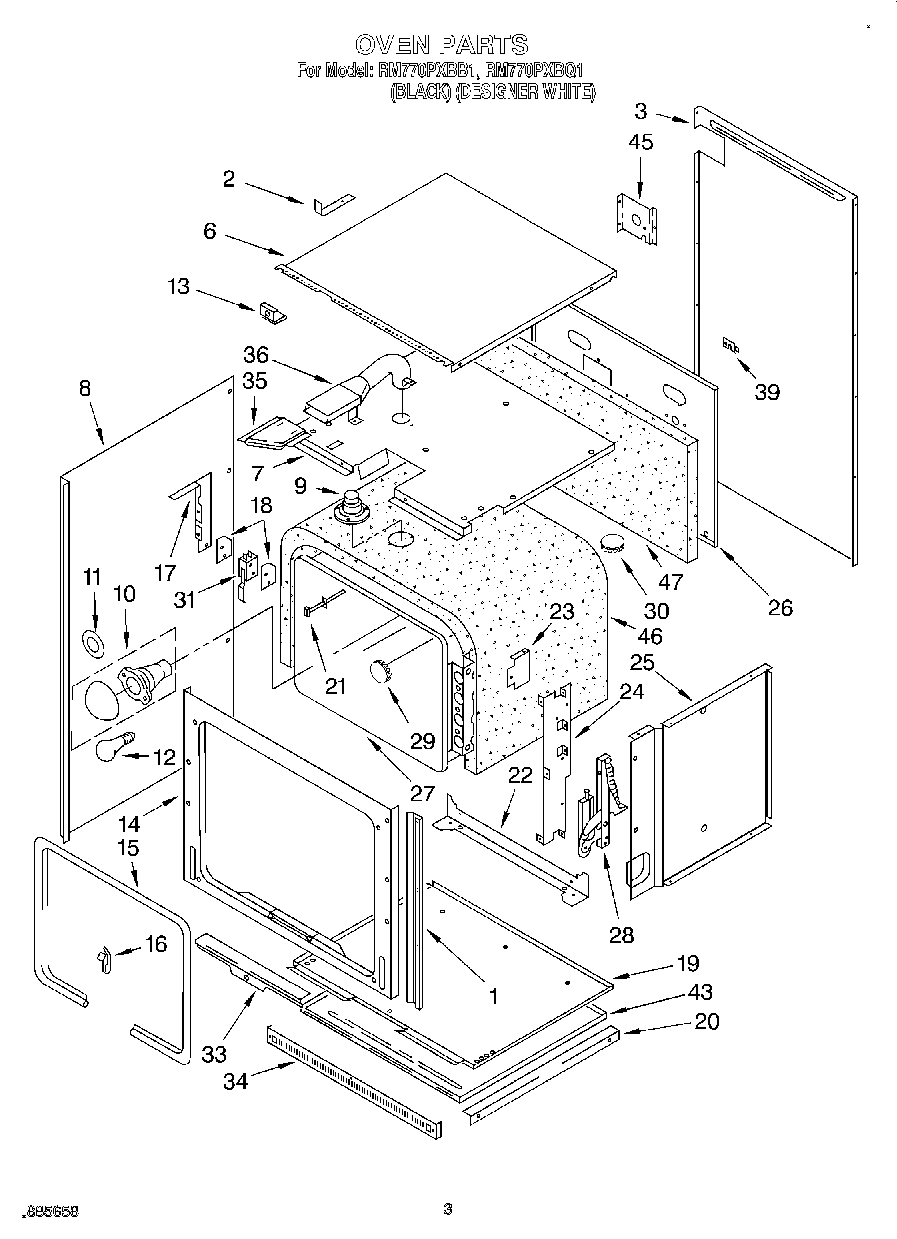

RM770PXBB1 02 – OVEN

Products

Position	Product
1	Side Trim, Door (2) (White Model)
1	Trim, Door Side (2) (Black Model)
2	Brace, M/W Back
3	Cabinet, Back
6	Cabinet, Top
7	Module, Top
8	Side, Cabinet (Right Hand)
9	Tube, Vent
10	W11594027 Whirlpool Range Oven Light Socket
11	WP3184533 Whirlpool Range Light Lens Gasket
12	RANGE ONLY 40W 120V APPL BULB
13	Clip, Fastener
14	Frame, Front
15	Seal, Door
15	Screw (4)
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
21	Sensor, Heat
21	Screw (2)
22	Support, Oven
23	Shield, Radiation
24	Bracket, Hinge
24	Screw (6)
25	Side, Module (R.H. & L.H.)
26	Screw
26	Back, Module
27	Liner, Oven
28	Hinge, Door
29	Button, Plug
30	Button, Plug
31	Switch, Door
31	Nut (2)
31	Screw (2)
33	SCREW
33	Retainer, Seal
34	Vent, Lower Trim (Screw (4))
34	Vent, Lower Trim (White Model)
34	Vent, Lower Trim (Black Model)
34	Door, Latch Handle (Screw (2))
35	Tube, Vent Female
35	Tube, Vent (Female)
36	Vent, Tube (Upper, Male)
39	Cover, Cap Tube
39	Screw
39	WP3177991 Whirlpool Screw
43	Bottom, Oven
45	Bracket, Conduit
46	Insulation, Oven
47	Screw
47	Insulation, Back
