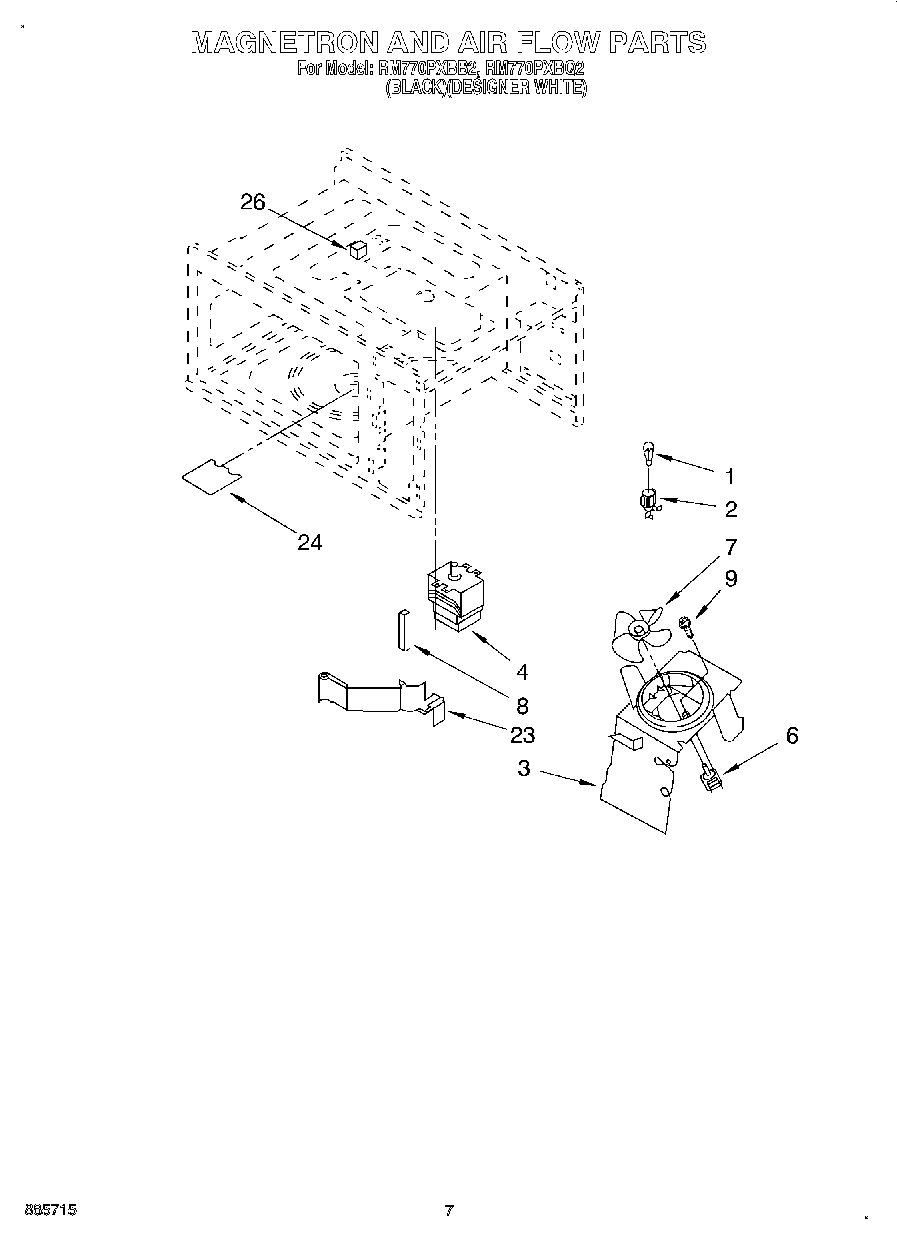

RM770PXBB2 05 – MAGNETRON AND AIR FLOW, OPTIONAL

RM770PXBB2 05 – MAGNETRON AND AIR FLOW, OPTIONAL

Written by

in

RM770PXBB2 05 – MAGNETRON AND AIR FLOW, OPTIONAL

Products

PositionProduct
1WPA3073101 Whirlpool Light Bulb
2Socket, Lamp
3Duct, Fan
4Screw
4Magnetron
6Motor, Fan
7Blade, Fan
8Shield, Magnetron
9Screw
23Duct, Magnetron
24Cover, Wave Guide
26Wire (14 Ga. 150 c Yellow)
26Wire (12 Ga. 150 c Black)
2618 Ga. 80~c Rating (Red)
26Wire (14 Ga. 200 c Brown)
261
26WPL 591014
26WPL 832985
26Wire (14 Ga. 150 c Orange)
26WPL 786020
26Trim, Almond
26Trim, White
26Screw
26Connector
26Trim, Gray
26WPL 3171507
26261900 Whirlpool Microwave Spray
26WPL 786032
26Wire (14 Ga. 150 c Green)
26Wire (14 Ga. 150 c Brown)
26Paint, Spray (13 Oz.) (Platinum)
26Toast
26Golden Harvest (Uncut)
26Golden Harvest
2672113 Whirlpool Touch-Up Paint
2672110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
26Almond (Uncut)
26Leveler (Thinner)
26WP72107 Whirlpool Touchup
26799344 Whirlpool Refrigerator Paint
2672017 Whirlpool Appliance Touch-Up Paint White
26350956 Whirlpool Spray Assembly
26Enamal, Toast (1 Qt. Uncut)
26Platinum (Uncut)
26WPL 72112
26Wire (14 Ga. 150 c Blue)
26WP261869 Whirlpool Microwave Paint
26242831 Whirlpool Oven Wire
26WP482338 Whirlpool Refrigerator Adhesive
2672032 Whirlpool Touch Up Paint Black
26285006 Whirlpool Spray
26WPW10339879 Whirlpool Wire Tie
26Wire, 25“ Roll (White 14 GA.)
26Wire, 25` Roll (Red 14 Ga.)
26Wire, 25` Roll (Black 14 Ga.)
26WPL 799832
26350942 Whirlpool Spray Paint
26350930 Whirlpool White Spray Paint
