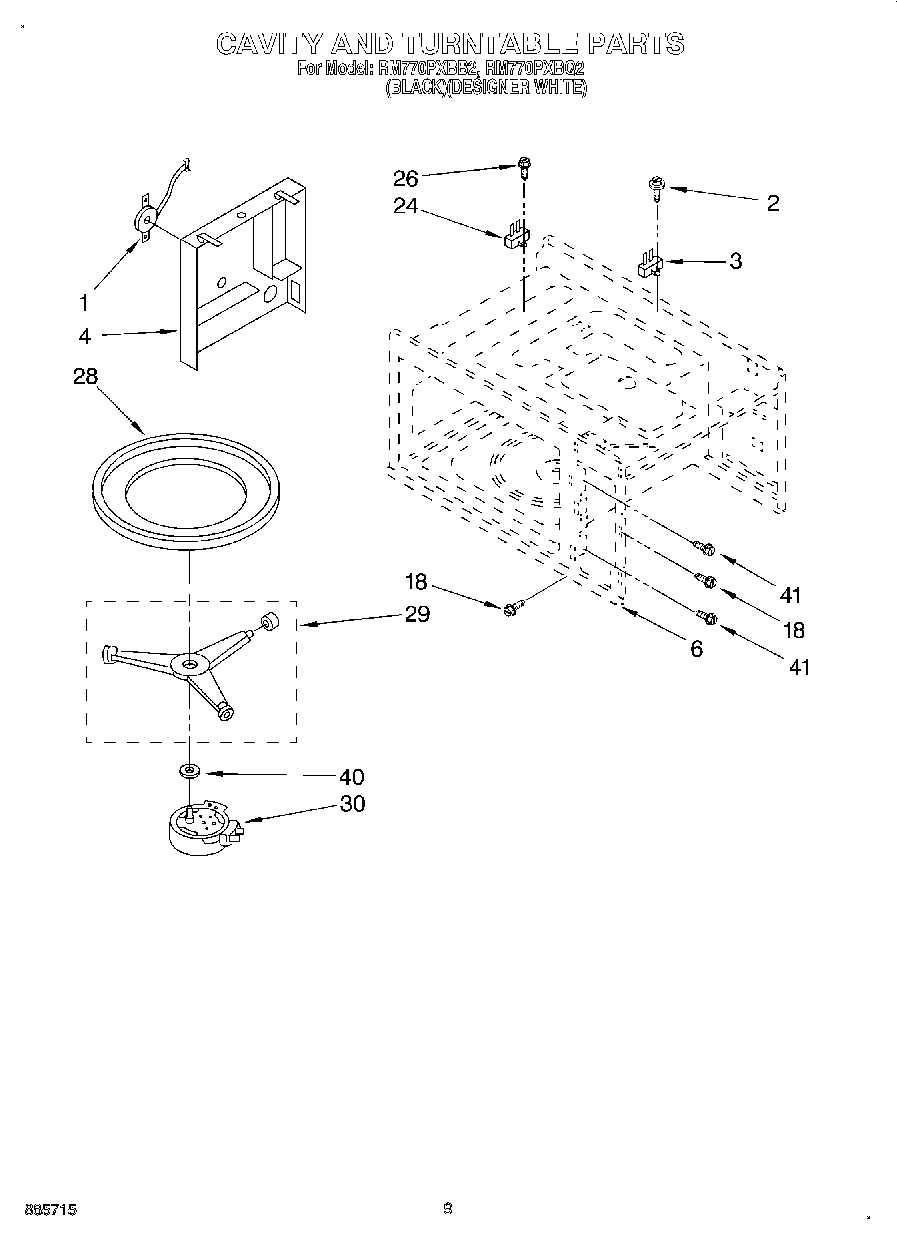

RM770PXBB2 06 – CAVITY AND TURNTABLE

Written by

Products

Position	Product
1	Sensor, Absolute Humidity
2	Screw
3	Fuse, Magnetron Temp
4	Duct, Sensor
6	Cavity, Oven (Not a Serviceable Part)
18	Screw (Black)
18	Screw
24	Fuse, Temp
26	Screw
28	Tray, Glass
29	Support, Turntable
30	Motor, Turntable
40	Gasket, Turntable
41	Screw
