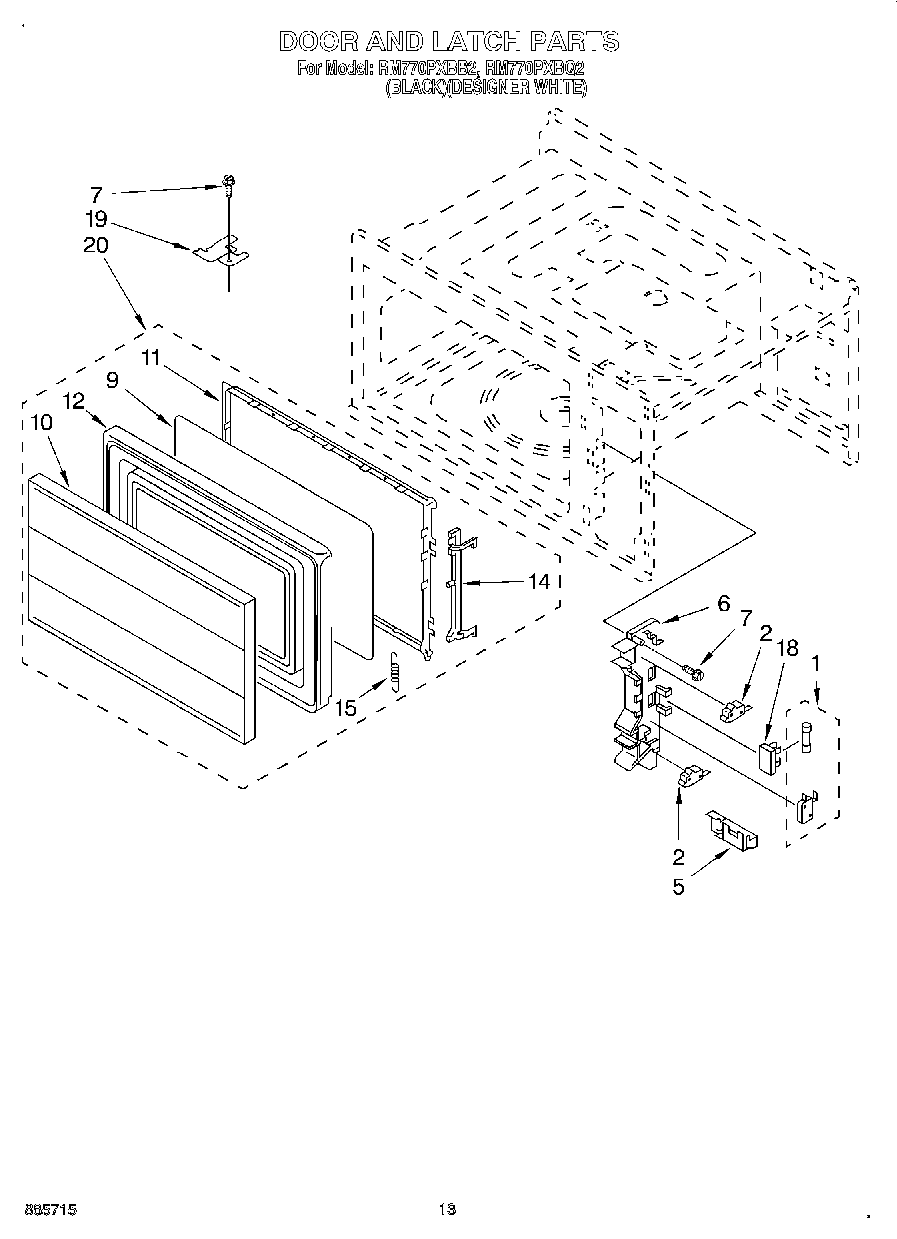

RM770PXBB2 10 – DOOR AND LATCH

Written by

Products

Position	Product
1	Switch and Fuse Assy.
2	4392027 Whirlpool Microwave Primary Switch
5	Latch Lever
6	Latch Hook
7	SCREW
9	Seal, Door (Not a Serviceable Part)
10	Screen, Door (White)
10	Screen, Door (Black)
11	Choke Cover (White Model)
11	Choke, Cover
12	Frame, Door (Not Serviceable)
14	Latch, Door (White Model)
14	Latch, Door
15	Spring, Latch
18	Holder, Fuse
19	Hinge, Upper
20	Door, Complete (Black)
20	Door, Complete (White)
