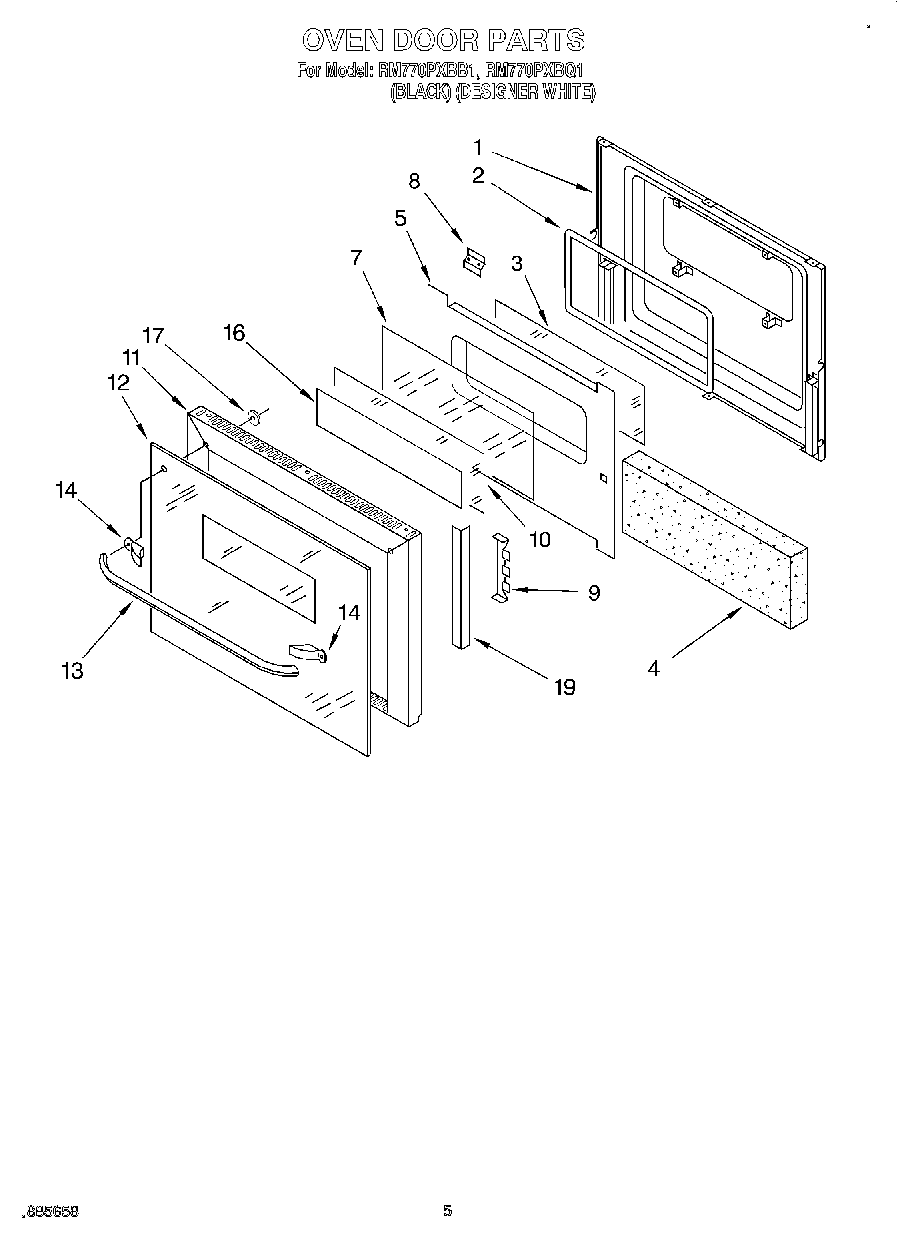

RM770PXBQ1 03 – OVEN DOOR

RM770PXBQ1 03 – OVEN DOOR

Written by

in

RM770PXBQ1 03 – OVEN DOOR

Products

Position	Product
1	Liner, Door
1	Screw, Black (2)
2	Seal, Window
3	Glass, Clear
4	Insulation, Door
5	Retainer, Insulation
5	Screw
7	Glass, Reflective
8	Latch, Strike
9	Retainer, Glass
9	Screw
10	Glass, Clear
10	Screw
11	Frame, Door (Black Model)
11	Frame, Door (White Model)
12	Glass, Door (White Model)
12	Glass, Door (Black Model)
13	Handle, Door (White Model)
13	Handle, Door (Black Model)
14	Spacer (White Model)
14	Spacer (Black Model)
16	Foil, Adhesive
17	Screw (2)
17	Bushing, Door Handle
19	Foil-Adhesive
