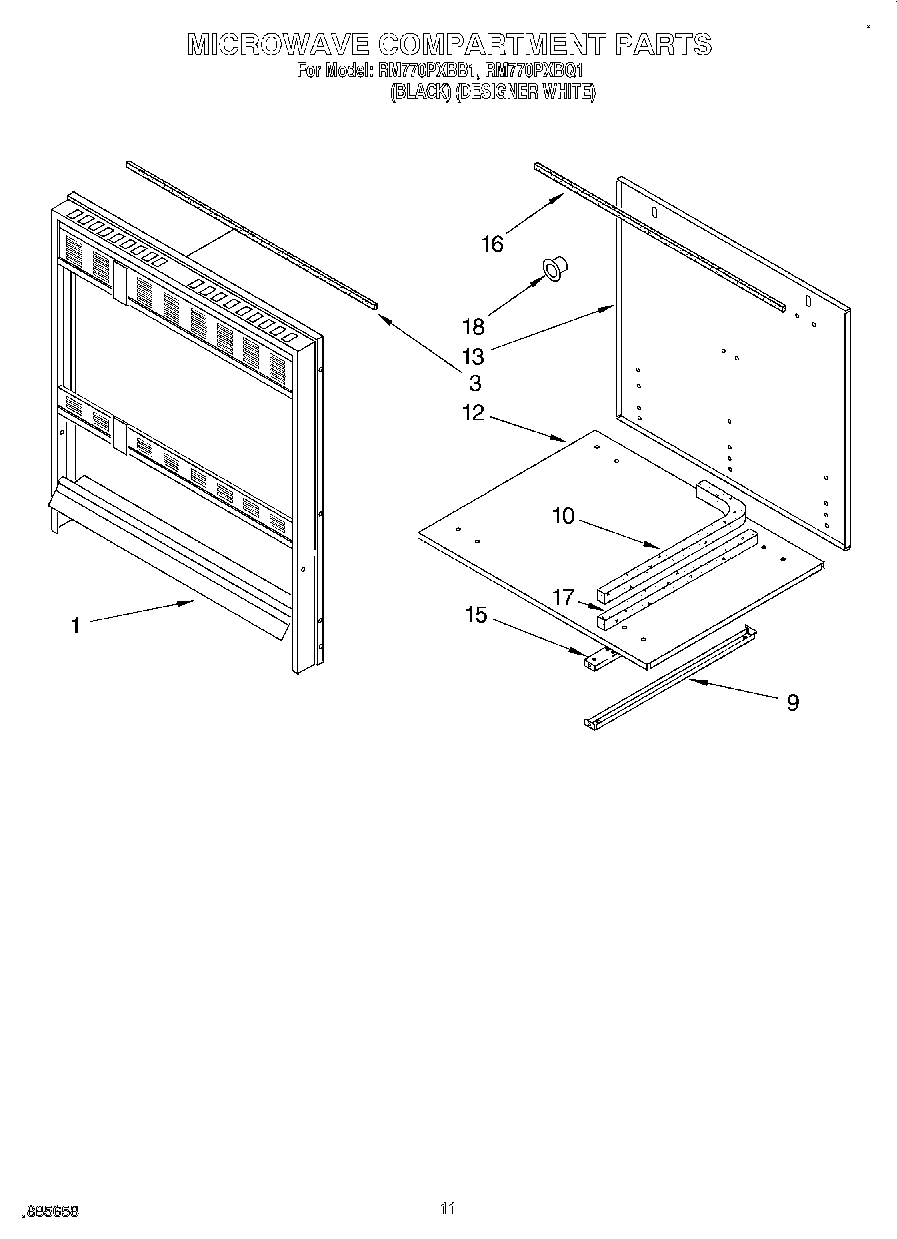

RM770PXBQ1 08 – MICROWAVE COMPARTMENTadmin2025-04-26T12:08:02+00:00RM770PXBQ1 08 – MICROWAVE COMPARTMENT
Products
| Position | Product |
|---|
| 1 | Frame, Outer (White Model) |
| 1 | Frame, Outer (Black Model) |
| 3 | Block, Foam |
| 9 | Rail, Microwave |
| 10 | Seal, Foam |
| 12 | Support, Module |
| 13 | Back, Microwave Compartment |
| 15 | Rail, Chassis |
| 16 | Seal, Foam |
| 17 | Seal, Foam |
| 17 | Screw (2) |
| 18 | Bushing, Electric |
